247.388250 (11A-533D099) - Craftsman Walk-Behind Mower (1999) (Sears) 4.0 H.P. Lawn Mower Parts Diagram

Walk-Behind Mower

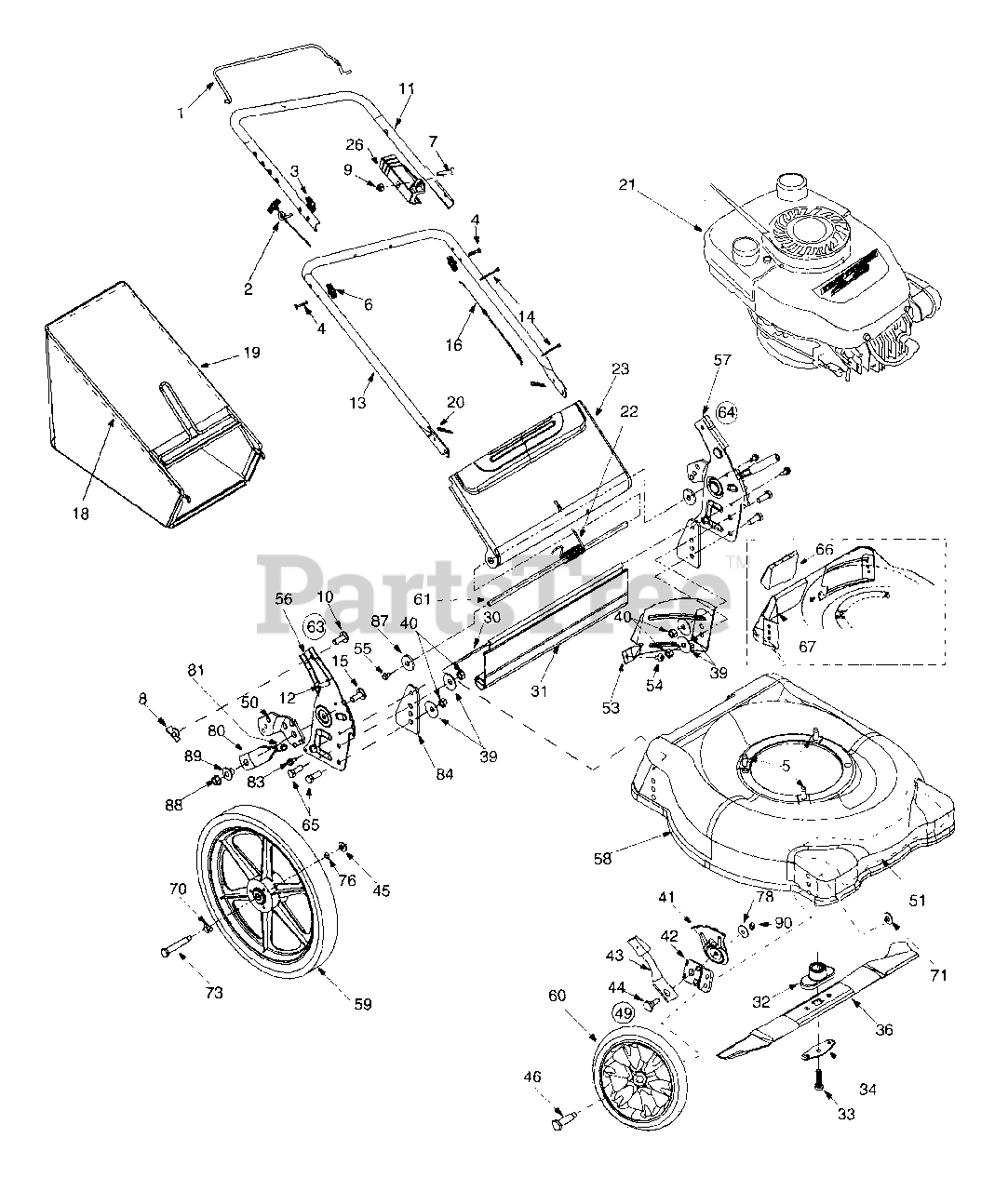

4.0 H.P. Lawn Mower Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Assembly - Standard
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$61.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 14

0

3

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 X 2" Lg.

$6.99

$

In Stock, Qty 20+

0

5

MTD 710-0654A

Scr. TT. 3/8-16 X 1.00" Lg. Hx Indwash.

$3.99

$

Usually ships in 3-6 days

0

6

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.49

$

In Stock, Qty 9

0

7

MTD 710-1270

Oval C-sunk Scr. 1/4-20 X 1.310 Lg.

$4.49

$

In Stock, only 2 left!

0

8

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0324

Hex Lock Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

10

MTD 710-0703

Carriage Bolt 1/4-20 x 0.75"

$3.99

$

In Stock, Qty 20+

0

11

MTD 749-0538C-0637

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

12

UNKNOWN

$

$

Not available

13

MTD 749-0928-0637

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

15

MTD 710-0435

Weld Screw 3/8-16 x 1.0"

$

$

Currently unavailable

16

MTD 746-0737

Control Cable - 51"
(Superseded to 946-0737)

$26.99

$

Usually ships in 3-6 days

0

18

MTD 747-0995A

Grass Catcher Frame
(Superseded to 747-0995A-0637)

Variations

MTD 747-0995A-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

19

MTD 664-0092

Grass Catcher Bag
(Superseded to 964-0084)

$179.99

$

Usually ships in 3-6 days

0

20

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

21

Engine, Tecumseh

$

$

Not available

22

MTD 732-0809

Door Spring
(Superseded to 932-0809)

$17.99

$

Usually ships in 3-6 days

0

23

MTD 782-7599A

Grass Bag Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 746-0883

Control Cable Housing

$15.99

$

In Stock, Qty 20+

0

30

MTD 732-0957

Wire Rod

$

$

Not available

31

MTD 731-1261

Rear Flap

$23.99

$

Usually ships in 3-6 days

0

32

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$19.99

$

In Stock, Qty 20+

0

33

MTD 710-1044

Hex Bolt 3/8-24 X1.5 Lg.

$3.99

$

In Stock, Qty 20+

0

34

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

36

MTD 742-0739

19" Blade (Mulching)
(Superseded to 942-0739)

$23.99

$

In Stock, Qty 20+

0

39

MTD 736-0356

Bell Washer.39 I.d. X1.38 I.d.
(Superseded to 936-0356)

$

$

Not available

40

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

41

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

42

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

43

MTD 14832

Spring Lever, Front Wheel
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

44

MTD 738-0507B

Shoulder Bolt, .5" Dia. X .357"

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0105

Bell Wash. .38" I.d. X .88" O.d.

$3.99

$

In Stock, Qty 20+

0

46

MTD 738-0102

Front Axle Bolt

$9.49

$

In Stock, Qty 11

0

49

MTD 14578

Height Adjuster Ass'y Comp. - R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

MTD 14579

Height Adjuster Ass'y Comp. - L.H.
(Superseded to 753-06761)

Note: (Not shown)

$60.99

$

In Stock, Qty 7

0

50

MTD 17488A

Pivot Bar - R.H.

$14.99

$

In Stock, only 3 left!

0

MTD 17489A

Pivot Bar - L.H.

Note: (Not shown)

$14.99

$

In Stock, only 1 left!

0

51

MTD 782-5025

Front Baffle
(Superseded to 782-5025-0637)

Variations

MTD 782-5025-0637

BAFFLE-FR - POWDER BLACK (0637)

$

$

Not available

MTD 782-5025-0638

BAFFLE-FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

53

MTD 782-5026

Rear Baffle - L.H.
(Superseded to 782-5026-0637)

Variations

MTD 782-5026-0637

Rear Baffle - POWDER BLACK (0637)

$

$

Not available

MTD 782-5026-0638

Rear Baffle - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

MTD 710-1017

Torx Mach.Ab-Tap Scr. 1/4-14 x .625.

$7.99

$

In Stock, Qty 20+

0

55

MTD 710-0599

Scr. TT. 1/4-20 x .500 HxIndWash.

$3.99

$

In Stock, Qty 20+

0

56

MTD 682-3036

Handle Bracket Assembly - R.H.

Variations

MTD 682-3036-0637

No Longer Available BRACKET HN - POWDER BLACK (0637)

$

$

Not available

MTD 682-3036-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

$

$

57

MTD 682-3037

Handle Bracket Assembly - L.H.

Variations

MTD 682-3037-0637

No Longer Available BRACKET HN - POWDER BLACK (0637)

$

$

Not available

MTD 682-3037-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

$

$

58

MTD 782-0054A-0689

Deck
(Superseded to 782-0054B-0689)

$

$

Not available

59

MTD 734-1864

Rear Wheel Ass'y.14 x 1.8 Bar Grey
(Superseded to 734-04030)

Note: (Inc. 741-0484 Brg. not illustrated)

$71.99

$

In Stock, only 1 left!

0

60

MTD 734-1841

Fr. Wheel Ass'y. 8 x 1.7 Aero Grey
(Superseded to 934-1841)

$44.99

$

Usually ships in 3-6 days

0

61

MTD 747-1169

Chute Door Pivot Rod

$

$

Not available

63

MTD 682-3038

Handle Bracket Assembly. - R.H.

Variations

MTD 682-3038-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

64

MTD 682-3039

Handle Bracket Assembly. - L.H.

Variations

MTD 682-3039-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 710-0514

Hex Hd Cap Scr. 3/8-16 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

66

MTD 782-5007B

Rear Mulch Plug
(Superseded to 782-5007C)

$48.99

$

In Stock, only 1 left!

0

67

MTD 782-5004

Rear Mulch Baffle
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

70

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

71

MTD 736-0105

Spring Washer

$3.99

$

In Stock, Qty 20+

0

73

MTD 738-3056

Rear Axle Bolt
(Superseded to 938-3056)

$8.99

$

In Stock, Qty 20+

0

76

MTD 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 7

0

78

MTD 736-0356

Bell Washer
(Superseded to 936-0356)

$

$

Not available

80

MTD 732-0866

Spring Lever, Rear

$

$

Not available

81

MTD 720-0312

Foam Grip

$4.49

$

In Stock, Qty 7

0

83

MTD 710-0896

Scr. AB 1/4-14 x .625 HxIndWash.

$3.99

$

In Stock, Qty 20+

0

84

MTD 782-7611

Handle Bracket Support Plate

$

$

Not available

87

MTD 736-0247

Flat Washer 3/8 x 1.25

$8.99

$

In Stock, Qty 20+

0

88

MTD 712-0431

Flange Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

89

MTD 748-0423

Shoulder Spacer 3/8"

$

$

Not available

90

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0
