247-596-190 - White Outdoor Edger (1987) Edger Assembly Parts Diagram

Edger

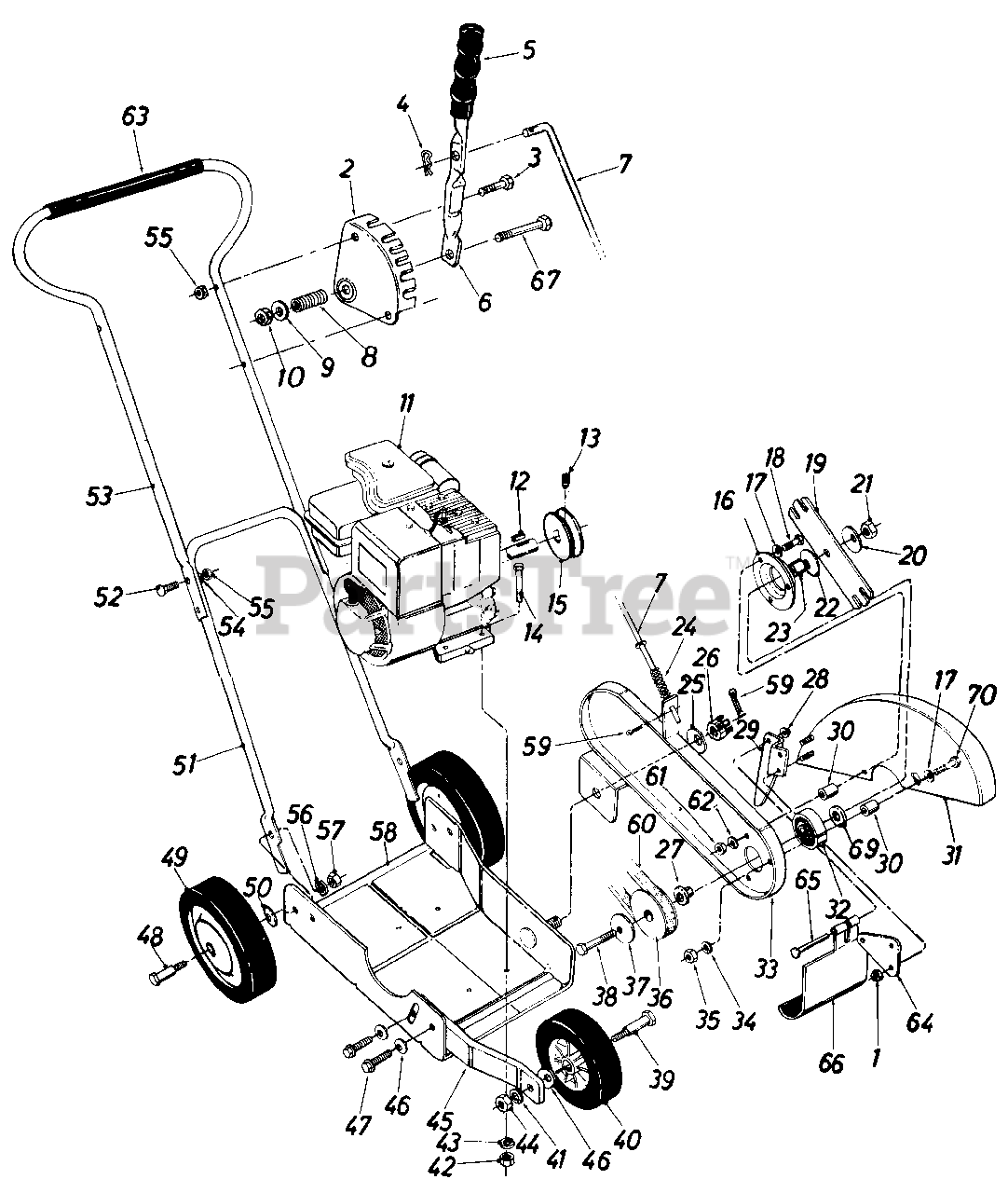

Edger Assembly Parts Diagram

  • Title

1

MTD 912-0107

Hex Cent. L.-Nut 1/4-20 Thd.

$4.49

$

In Stock, only 1 left!

0

2

MTD 781-0081

Clutch Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0081-0480

BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0081-0483

BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0081-0498

No Longer Available BRACKET-AD - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

MTD 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0081-0662

No Longer Available BRACKET-AD - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0081-0691

No Longer Available BRACKET-AD - BLACK JACK (0691)

$

$

Not available

MTD 781-0081-0692

BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

3

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.*

$3.99

$

In Stock, only 1 left!

0

4

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.0" Lg.*
(Superseded to 714-0115)

$3.49

$

In Stock, Qty 20+

0

5

MTD 07071

Grip

$11.99

$

Usually ships in 3-6 days

0

6

MTD 749-0666-0637

Clutch Handle

$33.99

$

In Stock, only 3 left!

0

7

MTD 747-0358

Clutch Rod

Note: NLA

$

$

Not available

8

MTD 932-0369

Compression Spring .50" O.D. x 1.38" Lg.

$9.49

$

In Stock, only 1 left!

0

9

MTD 936-0264

Fl.-Wash .34" I.D. x .62" O.D. x.063

$6.49

$

In Stock, Qty 11

0

10

MTD 912-0158

Hex Cent. L.-Nut 5/16-18 Thd. Engine

$3.49

$

In Stock, Qty 20+

0

11

Engine

$

$

Not available

12

MTD 914-0105

Sq. Key 3/16 x 1.0" Lg.*

$3.49

$

Usually ships in 3-6 days

0

13

MTD 710-0938

Set Scr. 1/4-28 x 1/4" Lg.

Note: NLA

$

$

Not available

14

MTD 710-0805

Hex Bolt 5/16-18 x 1.50' Lg.*
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

15

MTD 711-0421

Engine Pulley

Note: NLA

$

$

Not available

16

MTD 08253B

Bearing Housing

$17.99

$

In Stock, only 4 left!

0

17

MTD 736-0242

Bell.-Wash. .34" I.D. x 88" O.D. x .060

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.*

$4.49

$

In Stock, Qty 20+

0

19

MTD 09954-0637

Blade

$20.99

$

In Stock, only 4 left!

0

20

MTD 736-0112

Bell.-Wash. .535" I.D. x 1.50" O.D. x.052

$8.99

$

Usually ships in 3-6 days

0

21

MTD 912-0239

Hex Cent. L.-Nut 1/2-20 Thd.
(Superseded to 712-0239)

$

$

Not available

22

MTD 736-0112

Bell.-Wash. .535" I.D. x 1.50" O.D. x 052

$8.99

$

Usually ships in 3-6 days

0

23

MTD 911-0564

Spacer

$14.99

$

In Stock, only 2 left!

0

24

MTD 932-0330

Compression Spring .57" O.D. x 1.92" Lg.

$

$

Not available

25

MTD 736-0112

Bell.-Wash. .535" I.D. x 1.50" O.D. x .052

$8.99

$

Usually ships in 3-6 days

0

26

MTD 912-0114

Hex Castle Nut 1/2-20 Thd.

$

$

Not available

27

MTD 711-0716

Shoulder Spacer

Note: NLA

$

$

Not available

28

MTD 726-0111

Push Cap

$6.49

$

Usually ships in 3-6 days

0

29

MTD 09952

Guide

Note: NLA

$

$

Not available

30

MTD 748-0298

Spacer .354" I.D. x.635" O.D. x .510" Lg.

Note: NLA

$

$

Not available

31

MTD 14341

Blade Guard Ass'y.

Note: NLA

Variations

MTD 14341-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 941-0919A

Ball Bearing .787" I.D. x 1.85" O.D. x .551
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

33

MTD 13333

Spindle Bracket Ass'y.

Note: NLA

$

$

Not available

34

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

35

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 756-0361

Pulley

Note: NLA

$

$

Currently unavailable

37

MTD 736-0112

Bell.-Wash. .535" I.D. x 1.50" O.D. x .052

$8.99

$

Usually ships in 3-6 days

0

38

MTD 710-0515

Hex Bolt 1/2-20 x 3.50" Lg.*

$10.99

$

Usually ships in 3-6 days

0

39

MTD 938-0108

Shoulder Bolt .498" Dia. x 1.450

$6.49

$

In Stock, Qty 7

0

40

MTD 734-1175

Wheel Ass'y. Comp .6" Dia. x 1.50

Note: NLA

$

$

Not available

41

MTD 936-0169

L.-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

42

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

43

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

In Stock, only 2 left!

0

45

MTD 13332

Front Wheel Support

Note: NLA

$

$

Currently unavailable

46

MTD 736-0105

Bell.-Wash. .400" I.D. x 88" O.D. x .060

$3.99

$

In Stock, Qty 20+

0

47

MTD 710-0623

Hex Wash. Hd. Self Tap Scr. 3/8-16 x .75 " Lg.

$3.99

$

In Stock, Qty 12

0

48

MTD 938-0108

Shoulder Bolt .498" Dia. x 1.450

$6.49

$

In Stock, Qty 7

0

49

MTD 734-1176

Wheel Ass'y. Comp. 7" Dia. x 1.50

Note: NLA

$

$

Not available

50

MTD 736-0105

Bell.-Wash. .400" I.D. x 88" O.D.

$3.99

$

In Stock, Qty 20+

0

51

MTD 749-0453

Lower Handle

Note: NLA

$

$

Not available

52

MTD 710-0111

Carriage Bolt 1/4-20 x 1.25"-Lg.*

$3.49

$

Usually ships in 3-6 days

0

53

MTD 749-0452

Upper Handle

Note: NLA

$

$

Not available

54

MTD 936-0329

L.-Wash. 1/4" I.D. *

$4.49

$

In Stock, Qty 13

0

55

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.49

$

In Stock, only 2 left!

0

56

MTD 936-0169

L.-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

57

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

In Stock, only 2 left!

0

58

MTD 13330

Base Ass'y.

Note: NLA

$

$

Currently unavailable

59

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.0"-Lg.*
(Superseded to 714-0115)

$3.49

$

In Stock, Qty 20+

0

60

MTD 954-0142

3V-Belt 31.2" Lg.

$30.99

$

In Stock, Qty 17

0

61

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

63

MTD 718-0144

Grip (Optional)

Note: NLA

$

$

Currently unavailable

64

MTD 14427

Flap Bracket

Note: NLA

$

$

Currently unavailable

65

MTD 711-0720

Hinge Pin

Note: NLA

$

$

Not available

66

MTD 731-0532

Debris Deflector

Note: NLA

$

$

Not available

67

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg. *

$4.99

$

In Stock, Qty 20+

0

69

MTD 936-0272

Fl.-Wash. .51 I.D. x 1.00 O.D. x.060
(Superseded to 736-0272)

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-3103

Hex Bolt 5/16-18 x 2.00" Lg.*

$4.49

$

In Stock, Qty 19

0
