247.770110 (24A-031E799) - Craftsman Walk-Behind Yard Vacuum (2005) (Sears) General Assembly Parts Diagram

Walk-Behind Yard Vacuum

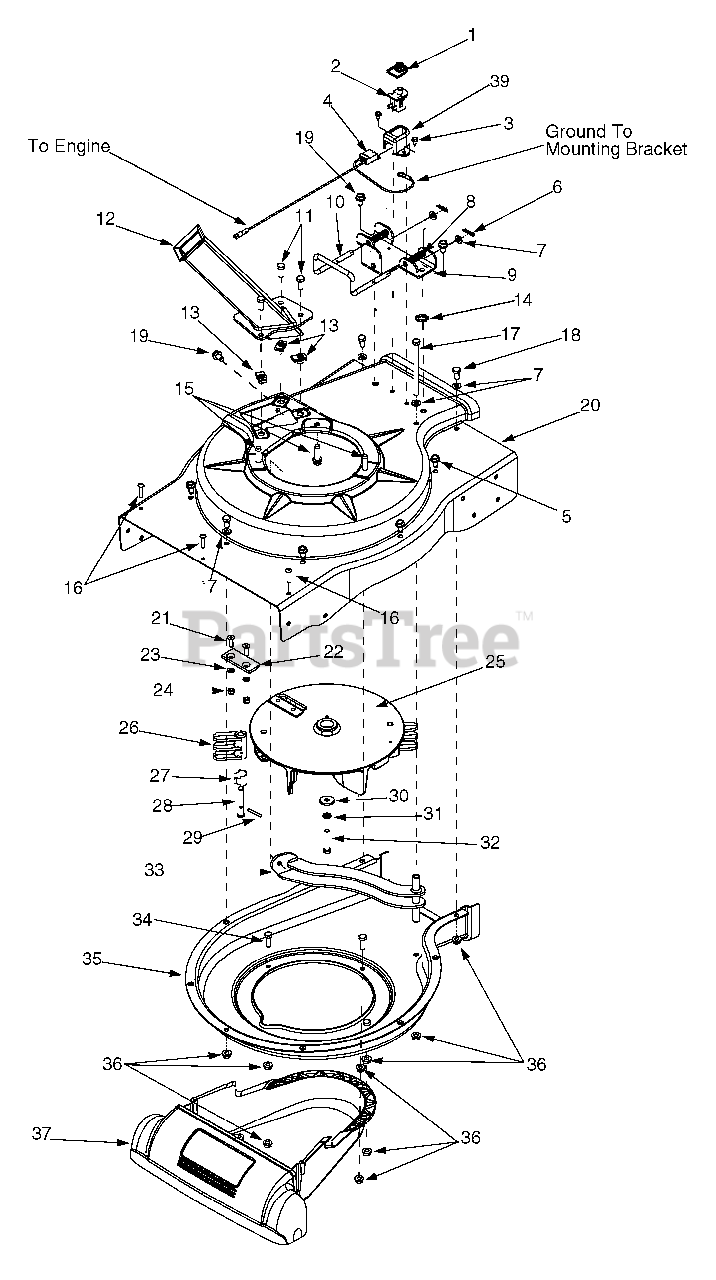

General Assembly Parts Diagram

  • Title

1

MTD 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 2 left!

0

2

MTD 725-3166

Safety Switch
(Superseded to 925-3166)

$15.99

$

In Stock, Qty 20+

0

3

MTD 710-0224

Hex Washer Screw #10-16 x.50
(Superseded to 910-0224)

$3.49

$

In Stock, only 2 left!

0

4

MTD 629-0920

Wire Harness
(Superseded to 629-0920A)

$38.99

$

Usually ships in 3-6 days

0

6

MTD 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

7

MTD 736-0264

Flat Washer.330 ID x.630 OD

$6.49

$

In Stock, only 1 left!

0

8

MTD 732-0962

Compression Spring

$3.99

$

Usually ships in 3-6 days

0

9

MTD 781-0778A

Mounting Bracket
(Superseded to 781-0778A-0637)

Variations

MTD 781-0778A-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

10

MTD 747-1153

Lock Rod

$15.99

$

Usually ships in 3-6 days

0

11

MTD 710-3008

Hex Cap Screw 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

12

MTD 681-0122

Chipper Chute Assembly

Variations

MTD 681-0122-0498

CHUTE CHIPPER ASM. - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0122-0638

CHUTE CHIPPER ASM. - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0122-0662

CHUTE CHIPPER ASM. - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0122-0665

CHUTE CHIPPER ASM. - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0122-0689

CHUTE CHIPPER ASM. - POLO GREEN (0689)

$

$

Not available

MTD 681-0122-0716

No Longer Available CHUTE CHIP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0122-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$

$

Not available

MTD 681-0122-4021

No Longer Available CHUTE CHIP - CUB YELLOW 2 (4021)

$

$

Not available

MTD 681-0122-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$

$

Not available

$74.99

$

Usually ships in 3-6 days

0

13

MTD 726-0454

U-Clip Lock Nut 5/16-18

$

$

Not available

14

MTD 736-0607

External Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.49

$

In Stock, Qty 8

0

16

MTD 710-0969

Screw #12-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

17

MTD 710-3195

Hex Cap Screw 5/16-18 x 4.5

$6.99

$

Usually ships in 3-6 days

0

18

MTD 710-3025

Hex Cap Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 9

0

19

MTD 710-0604A

Hex Washer Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 20+

0

20

MTD 781-1085

Upper Housing
(Superseded to 753-05479)

Variations

MTD 781-1085-0498

UPPER FAIL SERVICE KIT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-1085-0638

KIT-SERVICE UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-1085-0662

KIT-SERVICE UPPER - OYSTER GRAY (0662)

$

$

Not available

MTD 781-1085-0665

KIT-SERVICE UPPER - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-1085-0689

KIT-SERVICE UPPER - POLO GREEN (0689)

$

$

Not available

MTD 781-1085-0716

UPPER FAIL SERVICE KIT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

MTD 710-1054

Hex Screw 5/16-24 x 1.0

$3.99

$

In Stock, Qty 20+

0

22

MTD 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 20+

0

23

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0411

Hex Lock Nut 5/16-24

$3.99

$

In Stock, Qty 20+

0

25

MTD 681-0152

Impeller Assembly
(Superseded to 981-0152)

$497.99

$

Usually ships in 3-6 days

0

26

MTD 719-0329

Flail Blade

$31.99

$

In Stock, Qty 20+

0

27

MTD 781-0735

Pin Clip

$3.99

$

In Stock, Qty 20+

0

28

MTD 711-1401

Clevis Pin

$9.49

$

Usually ships in 3-6 days

0

29

MTD 715-0166

Spiral Pin

$6.49

$

In Stock, Qty 20+

0

30

MTD 736-0247

Flat Washer.375 ID x 1.25 OD

$8.99

$

In Stock, Qty 20+

0

31

MTD 736-0217

Lock Washer 3/8

$3.99

$

In Stock, Qty 13

0

32

MTD 710-0818

Hex Cap Screw 3/8-24 x 2.0

$6.49

$

In Stock, only 1 left!

0

33

MTD 681-0154

Screen Assembly
(Superseded to 681-0154-0637)

Variations

MTD 681-0154-0637

SCREEN ASM. - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

34

MTD 710-1238

Hex Cap Screw 5/16-18 x.875
(Superseded to 710-1238A)

$3.99

$

In Stock, only 1 left!

0

35

MTD 781-0721A

Lower Housing
(Superseded to 781-0721B)

Variations

MTD 781-0721A-0498

LOWER FLAIL HOUSING - OLD CUB YELLOW (0498)

$146.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0638

HOUSING-FLAIL LWR - MTD/TROY-BILT RED (0638)

$146.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0662

HOUSING-FLAIL LWR - OYSTER GRAY (0662)

$146.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0665

HOUSING-FLAIL LWR - YARDMAN GREEN (0665)

$146.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0689

HOUSING-FLAIL LWR - POLO GREEN (0689)

$146.99

$

Usually ships in 3-6 days

0

MTD 781-0721A-0716

LOWER FLAIL HOUSING - CUB YELLOW-99 (0716)

$127.99

$

Usually ships in 3-6 days

0

$127.99

$

Usually ships in 3-6 days

0

36

MTD 712-3004A

Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

37

MTD 731-1905A

Nozzle Cover

$115.99

$

Usually ships in 3-6 days

0

39

MTD 731-1613

Safety Switch Cover
(Superseded to 931-1613)

$9.99

$

In Stock, only 2 left!

0

40

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0
