247.770110 (24A-031E799) - Craftsman Walk-Behind Yard Vacuum (2005) (Sears)

Walk-Behind Yard Vacuum

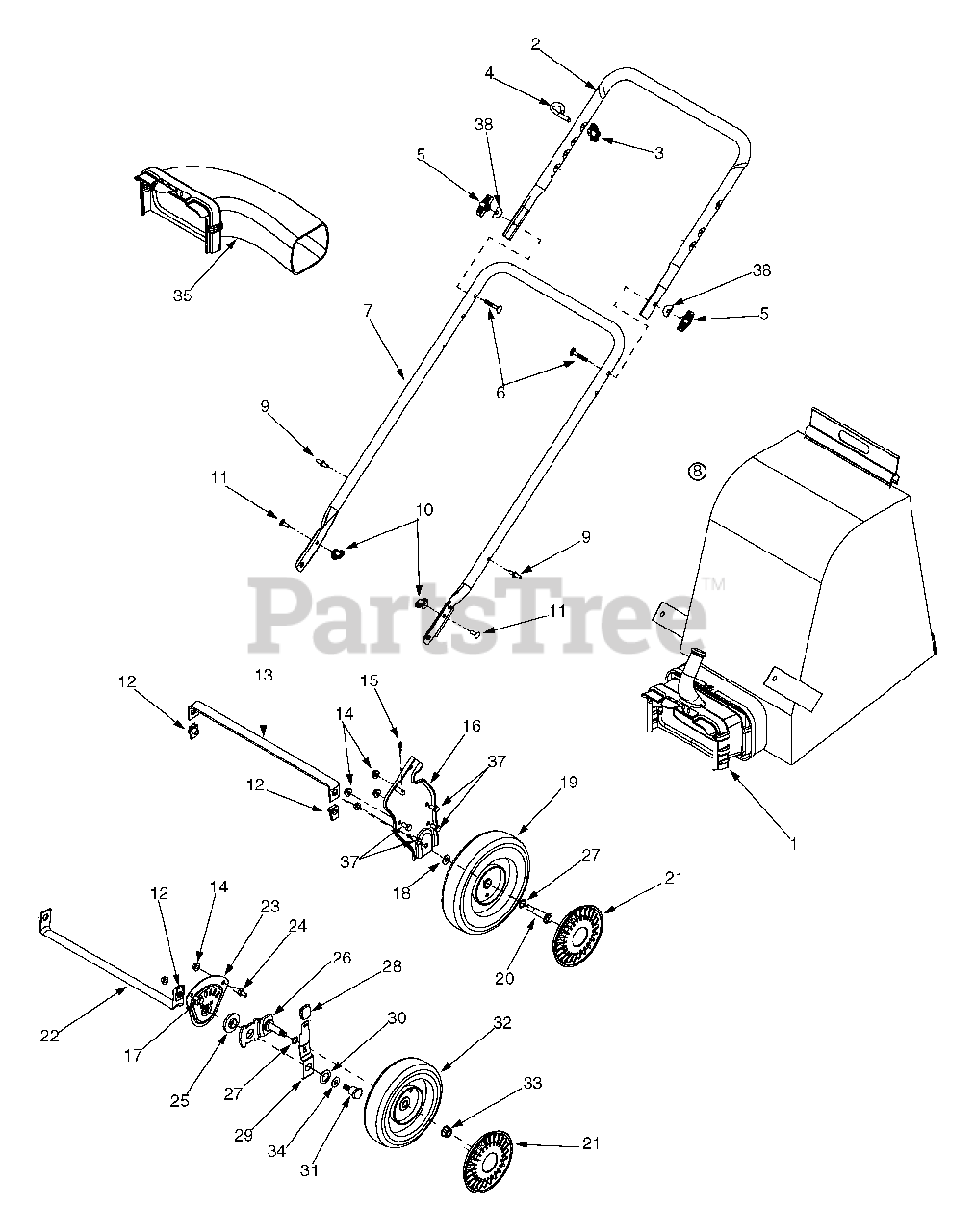

247.770110 (24A-031E799) - Craftsman Walk-Behind Yard Vacuum (2005) (Sears) > Parts Diagrams (2) > Handle & Bag

  • Title
631-0083

1

Chute Assembly

Part# 631-0083

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $65.66

749-04172

2

Upper Handle

Part# 749-04172

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

HANDLE:UPPER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.44

720-0279

3

Knob

Part# 720-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-1205

4

Eye Bolt

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.59

720-0241

5

Handle Knob 5/16-18

Part# 720-0241 (Superseded to 720-04072A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.50

710-1174

6

Carriage Bolt

Part# 710-1174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.66

749-04165

7

Lower Handle

Part# 749-04165

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

HANDLE-LOWER BLA

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.36

664-0094

8

Bag Assembly

Part# 664-0094 (Superseded to 664-0094A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $298.39

711-1293

9

Studs

Part# 711-1293

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

712-0397

10

Wing Nut 1/4-20

Part# 712-0397 (Superseded to 712-0397A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.73

710-0703

11

Carriage Screw 1/4-20 x.75

Part# 710-0703

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.73

726-0453

12

Lock U-Clip Nut 3/8-16

Part# 726-0453

OEM Warranty Repair Part for MTD

Not available

781-0777

13

Rear Wheel Support Brace

Part# 781-0777

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available BRACE REAR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

712-3004A

14

Flange Lock Nut 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.56

714-0104

15

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.85

681-0155

16

Handle Bracket Assy. LH

Part# 681-0155

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

BRACKET ASM-HNDL LH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.48

OYSTER GRAY (0662)

No Longer Available BRACKET AS

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available BRACKET AS

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

No Longer Available BRACKET AS

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available BRACKET AS

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

SEARS RED (0721)

BRACKET ASM-HNDL LH

Part# SEARS RED (0721)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.48

681-0156

Hndle Brkt Assy. RH

Part# 681-0156

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

BRACKET ASM-HNDL RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.48

OYSTER GRAY (0662)

No Longer Available

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available BRACKET AS

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

No Longer Available BRACKET AS

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available BRACKET AS

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

SEARS RED (0721)

No Longer Available BRACKET AS

Part# SEARS RED (0721)

OEM Warranty Repair Part for MTD

Not available

CRAFTSMAN RED (4044)

No Longer Available BRACKET AS

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for MTD

Not available

710-3025

17

Hex Cap Screw 5/16-18 x.625

Part# 710-3025

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.67

736-0105

18

Bell Washer.401 ID x.870 OD

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

734-1992

19

Wheel 9 x 2

Part# 734-1992

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.87

738-1015

20

Shoulder Screw 3/8-16

Part# 738-1015

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.97

731-0981A

21

Hubcap

Part# 731-0981A (Superseded to 731-0981C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.86

781-0725A

22

Front Wheel Support Brace

Part# 781-0725A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACE-FRONT WHEEL

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

781-0785

23

Height Adjustment Bracket

Part# 781-0785

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-HEIGHT ADJ

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

738-1185

24

Stud 5/16-18.56 x.75

Part# 738-1185

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.66

741-0751

25

Height Adjustment Bearing

Part# 741-0751

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.58

682-0113

26

Pivot Arm Assembly

Part# 682-0113

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.63

736-0232

27

Wave Washer.531 ID x.781 OD

Part# 736-0232 (Superseded to 936-0232)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

720-0426

28

Height Adjustment Knob

Part# 720-0426

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.90

732-1026

29

Spring Lever

Part# 732-1026

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.27

736-0741

30

Bell Washer.760 ID x.25OD

Part# 736-0741

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.95

738-1173

31

Shoulder Screw.750 ID x.625 OD

Part# 738-1173

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.34

734-1978

32

Wheel 8 x 2

Part# 734-1978

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $33.44

712-0431

33

Flange Lock Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0314

34

Thrust Washer.375 ID x.70 OD

Part# 736-0314 (Superseded to 936-0314)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

631-0090

35

Blower Chute Assembly

Part# 631-0090 (Superseded to OEM-290-012)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $82.73

710-1260A

37

Screw 5/16-18 x.750

Part# 710-1260A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.53

736-0451

38

Saddle Washer

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77
