247.770330 (24A-060H799) - Craftsman Chipper Shredder Vacuum (2016) Hose Parts Diagram

Chipper Shredder Vacuum

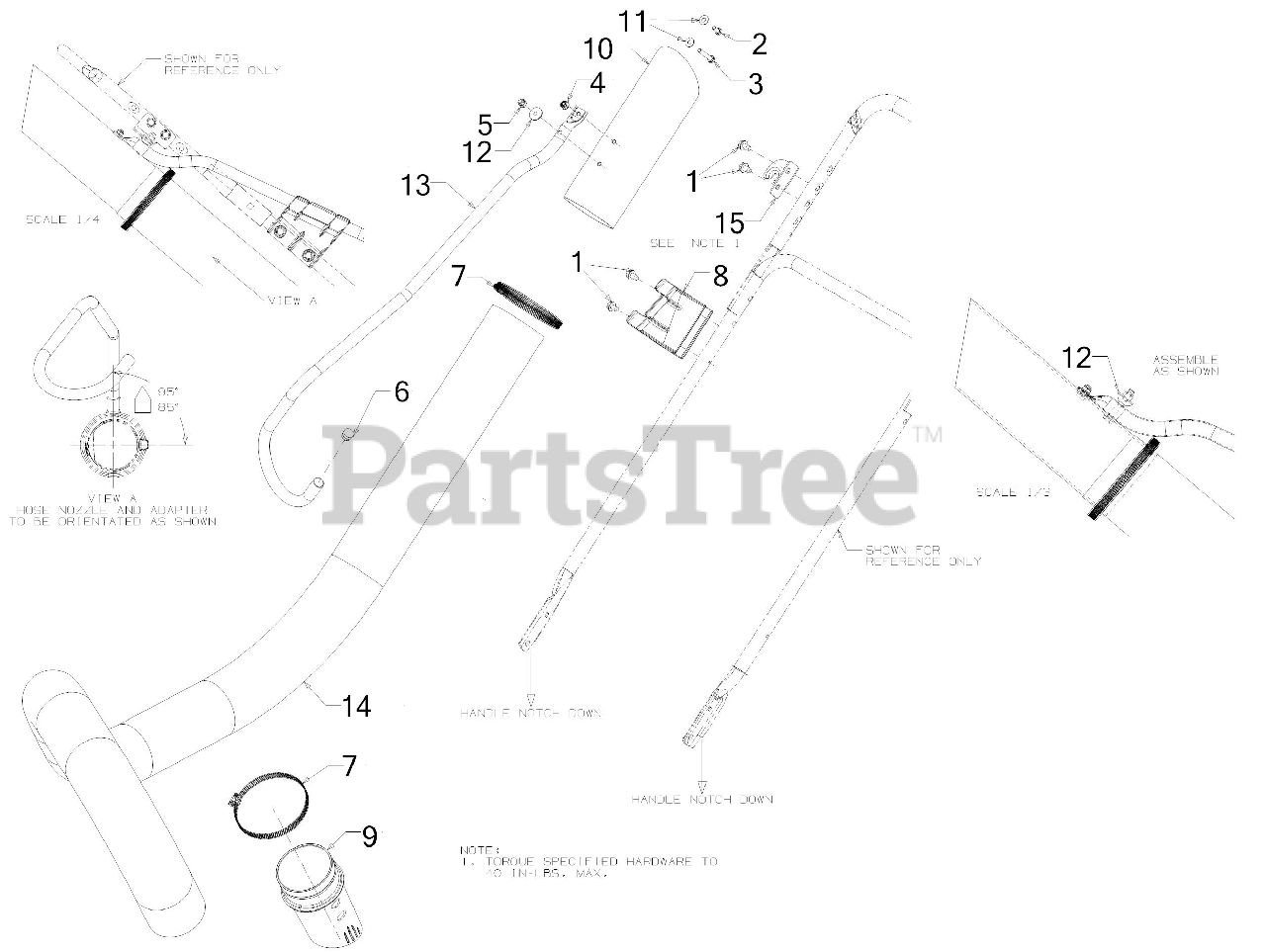

Hose Parts Diagram

  • Title

1

MTD 710-0607

SCREW 5/16-18 x .500

$6.49

$

In Stock, Qty 20+

0

2

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-3288

BOLT 1/4-20X1.62 GR5

$6.49

$

In Stock, Qty 15

0

4

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

6

MTD 720-0369

HANDLE PLUG

$12.99

$

Usually ships in 3-6 days

0

7

MTD 723-0295

HOSE CLAMP

$10.99

$

Usually ships in 3-6 days

0

8

MTD 731-04911

CLIP-HANDLE NOZZ

$10.99

$

Usually ships in 3-6 days

0

9

MTD 731-2292

HOSE ADAPTER

$37.99

$

Usually ships in 3-6 days

0

10

MTD 731-2478

HOSE NOZZLE 3.875
(Superseded to 731-2478A)

$72.99

$

In Stock, only 1 left!

0

11

MTD 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

12

MTD 748-0457

HOSE HANGER SPACER

$5.49

$

Usually ships in 3-6 days

0

13

MTD 749-1270A-0637

NOZZLE HANDLE
(Superseded to 749-1270A)

$65.99

$

Usually ships in 3-6 days

0

14

MTD 764-0648A

VACUUM HOSE 4.0 x 75.0

$153.99

$

In Stock, Qty 6

0

15

MTD 781-1056-0637

UPPER HANDLE BRACKET

$22.99

$

In Stock, only 1 left!

0
