247.770550 (24A-060G799) - Craftsman Walk-Behind Yard Vacuum (2005) (Sears) General Assembly Parts Diagram

Walk-Behind Yard Vacuum

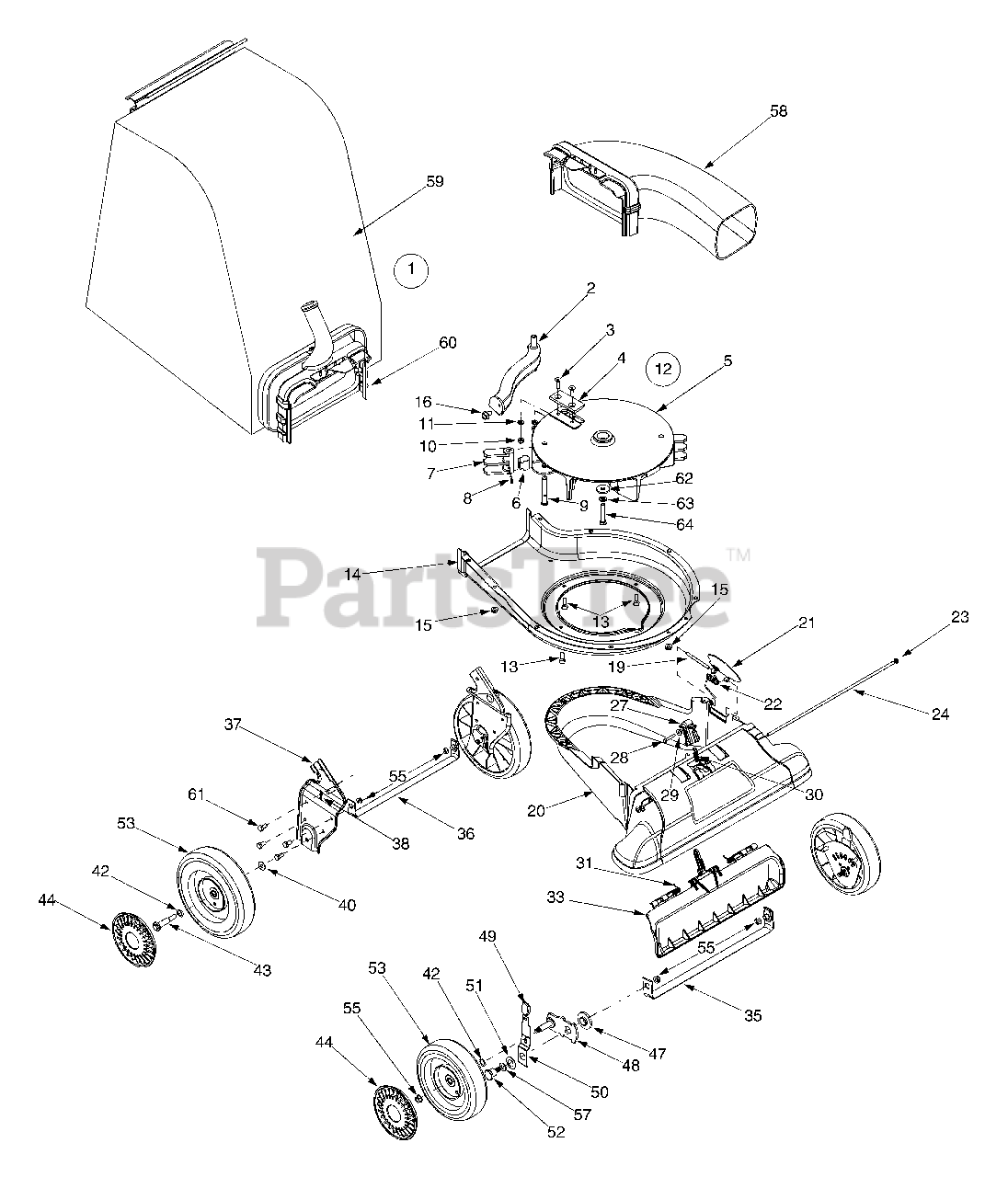

General Assembly Parts Diagram

  • Title

1

MTD 664-0094

Bag Assembly
(Superseded to 664P0094B)

$345.99

$

Usually ships in 3-6 days

0

2

MTD 681-0154

Screen Assembly
(Superseded to 681-0154-0637)

Variations

MTD 681-0154-0637

SCREEN ASM. - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

3

MTD 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

MTD 781-0490

Chipper Blade
(Superseded to 981-0490)

$32.99

$

In Stock, Qty 8

0

5

MTD 719-0530A

Impeller

$

$

Currently unavailable

6

MTD 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

7

MTD 719-0329

Flail

$33.99

$

In Stock, only 2 left!

0

8

MTD 715-0166

Spiral Pin

$7.49

$

In Stock, Qty 20+

0

9

MTD 711-1401

Clevis Pin

$10.99

$

Usually ships in 3-6 days

0

10

MTD 712-0411

Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 681-0152

Impeller Assembly
(Superseded to 981-0152)

Note: (Incl. Ref 3 - Ref. 11)

$566.99

$

Usually ships in 3-6 days

0

13

MTD 710-1650

Shoulder Screw, #12-24 x.30 x.46

$4.99

$

In Stock, Qty 20+

0

14

MTD 781-0721B

Lower Flail Housing

Variations

MTD 781-0721B-0498

HOUSING-FLAIL LWR - OLD CUB YELLOW (0498)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0638

HOUSING-FLAIL LWR - MTD/TROY-BILT RED (0638)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0662

HOUSING-FLAIL LWR - OYSTER GRAY (0662)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0665

HOUSING-FLAIL LWR - YARDMAN GREEN (0665)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0689

HOUSING-FLAIL LWR - POLO GREEN (0689)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0691

HOUSING-FLAIL LWR - BLACK JACK (0691)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0709

HOUSING-FLAIL LWR - MASTERCRAFT GREEN (0709)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0716

HOUSING-FLAIL LWR - CUB YELLOW-99 (0716)

$145.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0721

HOUSING-FLAIL LWR - SEARS RED (0721)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-4021

HOUSING-FLAIL LWR - CUB YELLOW 2 (4021)

$166.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-4044

HOUSING-FLAIL LWR - CRAFTSMAN RED (4044)

$166.99

$

Usually ships in 3-6 days

0

$145.99

$

Usually ships in 3-6 days

0

15

MTD 712-04063

Flange Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0607

Screw, 5/16-18 x.500

$6.99

$

In Stock, Qty 20+

0

19

MTD 747-04297

Hinge Pin

$6.99

$

Usually ships in 3-6 days

0

20

MTD 731-2293A

Nozzle
(Superseded to 981-04031)

$211.99

$

Usually ships in 3-6 days

0

21

MTD 781-1064

Base Adapter Door

$38.99

$

Usually ships in 3-6 days

0

22

MTD 732-1156

Torsion Spring

$5.49

$

Usually ships in 3-6 days

0

23

MTD 726-0106

Cap Speed Nut 1/4

$4.49

$

Usually ships in 3-6 days

0

24

MTD 711-1551

Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

27

MTD 731-2485A

Nozzle Door Lever

$12.99

$

In Stock, only 3 left!

0

28

MTD 710-1256

Hex Screw, #8-18 x 1.25

$6.49

$

In Stock, only 1 left!

0

29

MTD 750-1294

Shoulder Spacer

$14.99

$

In Stock, only 1 left!

0

30

MTD 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

31

MTD 732-1151A

Nozzle Door Torsion Spring

$5.49

$

In Stock, Qty 11

0

33

MTD 731-2294A

Nozzle Door

$45.99

$

In Stock, Qty 5

0

35

MTD 781-04082

Front Wheel Support Brace
(Superseded to 781-04082-0637)

Variations

MTD 781-04082-0637

BRACE-SUPT WHL FRT - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

36

MTD 781-04081

Rear Wheel Support Brace
(Superseded to 781-04081-0637)

Variations

MTD 781-04081-0637

BRACE-SUPT WHL RR - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

37

MTD 681-0156A

Handle Bracket Ass'y RH
(Superseded to 981-0156A)

Variations

MTD 681-0156A-0721

BRACKET ASM-HNDL RH - SEARS RED (0721)

$48.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-4044

BRACKET ASM-HNDL RH - CRAFTSMAN RED (4044)

$48.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0638

BRACKET ASM-HNDL RH - MTD/TROY-BILT RED (0638)

$44.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0662

BRACKET ASM-HNDL RH - OYSTER GRAY (0662)

$44.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0665

BRACKET ASM-HNDL RH - YARDMAN GREEN (0665)

$44.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0689

BRACKET ASM-HNDL RH - POLO GREEN (0689)

$38.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0691

BRKT ASM-HNDL RH - BLACK JACK (0691)

$38.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0709

BRACKET ASM-HNDL RH - MASTERCRAFT GREEN (0709)

$38.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0716

BRACKET ASM-HNDL RH - CUB YELLOW-99 (0716)

$44.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-4021

BRACKET ASSY-HANDLE RH - CUB YELLOW 2 (4021)

$48.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

MTD 681-0155A

Handle Brkt Ass'y LH
(Superseded to 981-0155A)

Note: (Not Shown)

Variations

MTD 681-0155A-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0638

BRACKET ASM-HNDL LH - MTD/TROY-BILT RED (0638)

$44.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0662

BRACKET ASM-HNDL LH - OYSTER GRAY (0662)

$48.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0665

BRACKET ASM-HNDL LH - YARDMAN GREEN (0665)

$44.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0689

BRACKET ASM-HNDL LH - POLO GREEN (0689)

$38.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0691

BRKT ASM-HNDL LH - BLACK JACK (0691)

$48.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0709

BRACKET ASM-HNDL LH - MASTERCRAFT GREEN (0709)

$38.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0716

BRACKET ASM-HNDL LH - CUB YELLOW-99 (0716)

$44.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0721

BRACKET ASM-HNDL LH - SEARS RED (0721)

$44.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-4021

BRACKET ASSY-HANDLE LH - CUB YELLOW 2 (4021)

$48.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-4044

BRACKET ASM-HNDL LH - CRAFTSMAN RED (4044)

$44.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

38

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 17

0

40

MTD 736-0105

Bell Washer.401 ID x.870 OD

$4.99

$

In Stock, Qty 20+

0

42

MTD 736-0232

Wave Washer.531 ID x.781 OD

$4.99

$

In Stock, only 2 left!

0

43

MTD 738-1015

Shoulder Screw 3/8-16

$11.99

$

Usually ships in 3-6 days

0

44

MTD 731-0981A

Hubcap
(Superseded to 731-0981C)

$11.99

$

In Stock, Qty 6

0

47

MTD 741-0751

Height Adjustment Bearing

$9.49

$

In Stock, only 1 left!

0

48

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$30.99

$

Usually ships in 3-6 days

0

49

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

50

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 3 left!

0

51

MTD 736-0741

Bell Washer.760 ID x.25 OD

$4.99

$

In Stock, only 1 left!

0

52

MTD 738-1172

Shoulder Screw,.750 x.500

$6.49

$

Usually ships in 3-6 days

0

53

MTD 734-2004A

Wheel 8 x 2.125
(Superseded to 753-08093)

$48.99

$

In Stock, only 4 left!

0

55

MTD 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

57

MTD 736-0314

Thrust Washer.375 ID x.70 OD

$7.49

$

Usually ships in 3-6 days

0

58

MTD 631-0090

Blower Chute
(Superseded to OEM-290-012)

$105.99

$

Usually ships in 3-6 days

0

59

MTD 764-0631A

Bag
(Superseded to 664P0094B)

$345.99

$

Usually ships in 3-6 days

0

60

MTD 631-0083

Chute Assembly
(Superseded to 631P0083A)

$113.99

$

Usually ships in 3-6 days

0

61

MTD 710-0726

Hex Index Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0247

Flat Washer.375 ID x 1.25 OD

$10.99

$

In Stock, Qty 20+

0

63

MTD 736-0217

Lock Washer 3/8

$4.49

$

In Stock, only 3 left!

0

64

MTD 710-0818

Hex Cap Screw 3/8-24 x 2.0

$7.49

$

In Stock, only 2 left!

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$27.99

$

Usually ships in 3-6 days

0
