247.775890 (24A-498C099) - Craftsman Chipper Shredder (1999) (Sears) 10 H.P. Chipper Shredder Parts Diagram

Chipper Shredder

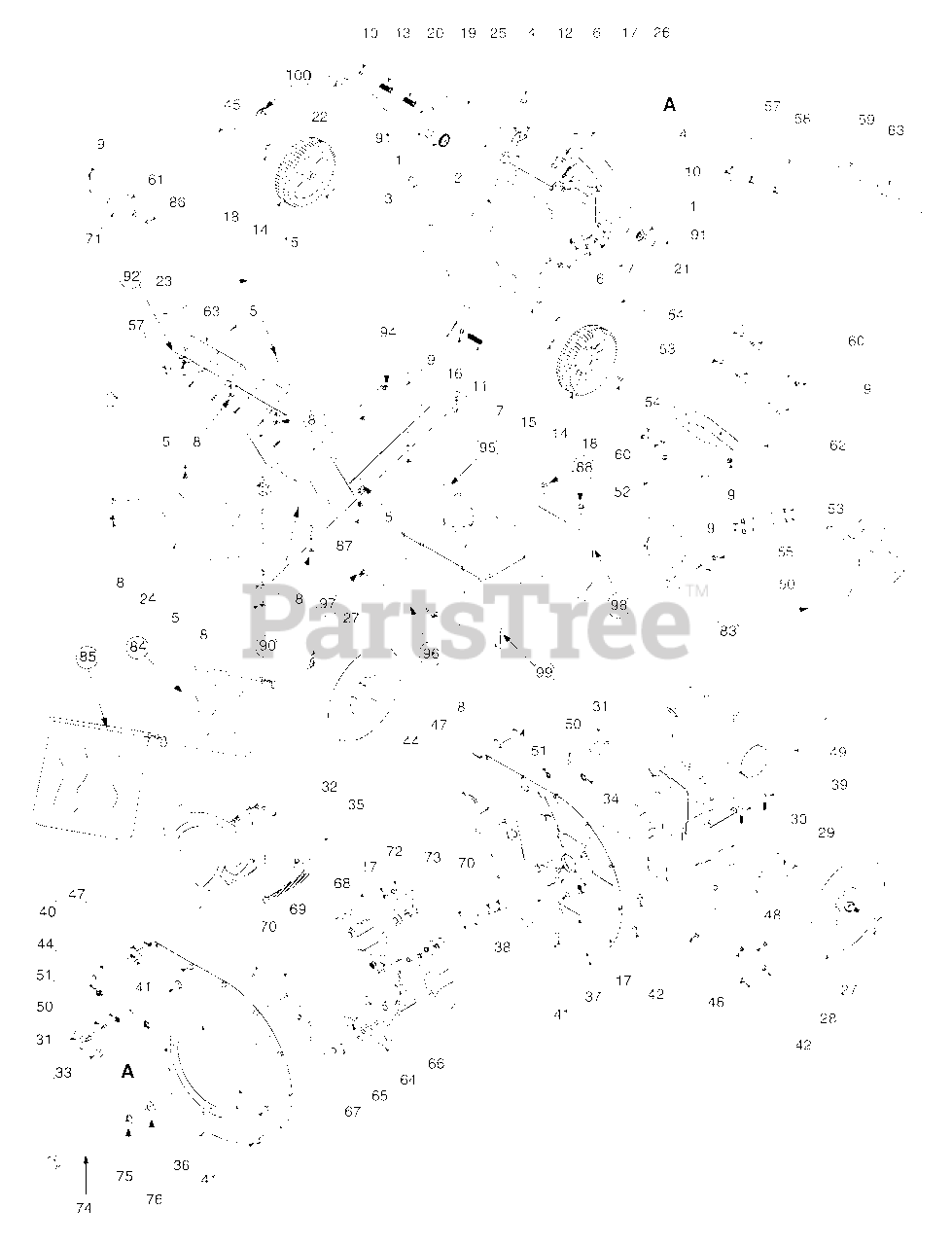

10 H.P. Chipper Shredder Parts Diagram

  • Title

1

MTD 11480

Stop Washer

$

$

Not available

2

MTD 681-0118

Inlet Guide Assembly

Variations

681-0118-0638

MTD 681-0118-0638

No Longer Available GUIDE ASSEMBLY-INL - MTD/TROY-BILT RED (0638)

$

$

Not available

681-0118-0689

MTD 681-0118-0689

No Longer Available GUIDE ASSEMBLY-INL - POLO GREEN (0689)

$

$

Not available

$

$

3

MTD 710-0542

Hex Washer Hd. Screw 5/16-18 x 8.38"

$

$

Not available

4

MTD 710-0607

TL Hex Screw 5/16-18 x 0.5"

$6.99

$

In Stock, Qty 20+

0

5

MTD 710-3256

Button Head Screw

$11.99

$

Usually ships in 3-6 days

0

6

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-1304

Axle Shaft

$

$

Not available

8

MTD 712-3027

Hex Lock Flanged Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 15

0

10

MTD 726-0106

Cap Nut

$4.49

$

Usually ships in 3-6 days

0

11

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.99

$

In Stock, Qty 10

0

12

MTD 732-0546

Torsion Spring
(Superseded to 932-0546)

$5.49

$

Usually ships in 3-6 days

0

13

MTD 732-0629

Hopper Door Spring
(Superseded to 932-0629)

$

$

Not available

14

MTD 734-1797

Complete Wheel: Grey

$

$

Not available

15

MTD 736-0160

Flat Washer

$4.49

$

Usually ships in 3-6 days

0

16

MTD 736-0117

Flat Washer
(Superseded to 936-0117)

$7.49

$

In Stock, only 2 left!

0

17

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

19

MTD 747-0531A

Rod: 5/16 Dia.

$

$

Not available

20

MTD 747-0747

Hopper Door Rod

$

$

Not available

21

MTD 747-0982

Lock Rod

$

$

Not available

22

MTD 781-0492A

Hopper Door Pivot

Variations

781-0492A-0483

MTD 781-0492A-0483

No Longer Available DOOR-HOPPE - CHARCOAL GRAY (0483)

$

$

Not available

781-0492A-0637

MTD 781-0492A-0637

No Longer Available DOOR-HOPPER PIVOT - POWDER BLACK (0637)

$

$

Not available

781-0492A-0638

MTD 781-0492A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0492A-0689

MTD 781-0492A-0689

No Longer Available DOOR-HOPPER PIVOT - POLO GREEN (0689)

$

$

Not available

$

$

23

MTD 781-0754-0689

Upper Hopper: Polo Green

$

$

Not available

24

MTD 781-0755-0689

Lower Hopper: Polo Green

$

$

Not available

25

MTD 781-0698

Hopper Lock Bracket

Variations

781-0698-0483

MTD 781-0698-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

781-0698-0638

MTD 781-0698-0638

BRACKET- HOPPER LO - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0698-0689

MTD 781-0698-0689

No Longer Available BRACKET- H - POLO GREEN (0689)

$

$

Not available

$

$

26

MTD 781-0715

Shredder Plate
(Superseded to 781-0715-0637)

Variations

781-0715-0637

MTD 781-0715-0637

PLATE-SHREDDER - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 726-0214

Push Cap

$11.99

$

In Stock, Qty 20+

0

28

MTD 734-1845

Complete Wheel Grey
(Superseded to 753-08108)

$134.99

$

Usually ships in 3-6 days

0

29

MTD 736-0366

Flat Washer: 5/8 I.D.

$4.99

$

In Stock, Qty 20+

0

30

MTD 738-0813

Shredder Axle

$55.99

$

Usually ships in 3-6 days

0

31

MTD 681-0048

Knob Assembly
(Superseded to 720-0170)

$11.99

$

In Stock, Qty 15

0

32

MTD 681-0094-0689

Discharge Chute Assembly: Polo Green
(Superseded to 681-0094A-0689)

$137.99

$

Usually ships in 3-6 days

0

33

MTD 710-0382

Hex Bolt 1/2-13 X 5" Gr. 5

$12.99

$

In Stock, only 2 left!

0

34

MTD 712-0384

Hex Center Lock Nut 1/2-13
(Superseded to 912-0384)

$7.49

$

In Stock, only 3 left!

0

35

MTD 781-0457

Shredder Screen
(Superseded to 781-0457-0637)

Variations

781-0457-0637

MTD 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$43.99

$

In Stock, Qty 7

0

$43.99

$

In Stock, Qty 7

0

36

MTD 681-0004A-0689

Outer Flail Housing Assembly

$233.99

$

Usually ships in 3-6 days

0

37

MTD 681-0117-0689

Inner Flail Housing Assembly
(Superseded to 681-0117-0637)

$196.99

$

Usually ships in 3-6 days

0

38

MTD 710-0157

Hex Bolt 5/16-24 X 0.75" Gr. 5

$4.49

$

In Stock, only 3 left!

0

39

MTD 710-3180

Hex Bolt 5/16-18 X 1.75" Gr. 5

$5.99

$

In Stock, Qty 20+

0

40

MTD 710-0825

Hex Screw 1/4-20 X 3.75"

$5.99

$

In Stock, only 2 left!

0

41

MTD 710-3008

Hex Bolt 5/16-18 X 0.75"

$4.49

$

In Stock, Qty 20+

0

42

MTD 712-3004A

Hex Lock Flange Nut 5/16-18 Gr. 5

$3.99

$

In Stock, Qty 20+

0

44

MTD 726-0211

U Nut 5/16-18

$4.99

$

In Stock, only 2 left!

0

45

MTD 747-1124

Flap Control Rod

$

$

Not available

46

MTD 736-0170

Bell Washer

$5.99

$

Usually ships in 3-6 days

0

47

MTD 750-0793

Hinge Spacer: Chute
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 10

0

48

MTD 781-0459B

Shredder Frame

Variations

781-0459B-0483

MTD 781-0459B-0483

No Longer Available FRAME - CHARCOAL GRAY (0483)

$

$

Not available

781-0459B-0498

MTD 781-0459B-0498

No Longer Available FRAME - OLD CUB YELLOW (0498)

$

$

Not available

781-0459B-0638

MTD 781-0459B-0638

No Longer Available FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0459B-0662

MTD 781-0459B-0662

No Longer Available FRAME - OYSTER GRAY (0662)

$

$

Not available

781-0459B-0689

MTD 781-0459B-0689

No Longer Available FRAME - POLO GREEN (0689)

$

$

Not available

$

$

49

MTD 194G432-1182-E1

Engine

$

$

Currently unavailable

50

MTD 736-0242

Belleville Washer

$4.99

$

In Stock, Qty 20+

0

51

MTD 726-0201

Speed Nut

$7.49

$

In Stock, Qty 20+

0

52

MTD 681-0068

Chipper Chute Assembly: Weldment
(Superseded to 681-0068A)

Variations

681-0068-0483

MTD 681-0068-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$177.99

$

Usually ships in 3-6 days

0

681-0068-0638

MTD 681-0068-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$

$

Not available

681-0068-0662

MTD 681-0068-0662

ASM-CHUTE - OYSTER GRAY (0662)

$

$

Not available

681-0068-0674

MTD 681-0068-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$

$

Not available

681-0068-0689

MTD 681-0068-0689

ASM-CHUTE - POLO GREEN (0689)

$

$

Not available

681-0068-0691

MTD 681-0068-0691

ASM-CHUTE - BLACK JACK (0691)

$

$

Not available

$

$

53

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Gr. 5

$4.49

$

In Stock, Qty 12

0

54

MTD 710-0751

Hex Bolt 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

55

MTD 712-3010

Hex Nut 5/16-18

$4.99

$

In Stock, Qty 20+

0

57

MTD 728-0175

Rivet

$4.99

$

In Stock, Qty 20+

0

58

MTD 731-1899

Chipper Chute
(Superseded to 753-05094)

$155.99

$

Usually ships in 3-6 days

0

59

MTD 735-0249

Chute Flap
(Superseded to 735-0249A)

$26.99

$

Usually ships in 3-6 days

0

60

MTD 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

61

MTD 715-0129

Spiral Pin

$4.99

$

In Stock, only 1 left!

0

62

MTD 749-1024

Chute Support

Variations

749-1024-0637

MTD 749-1024-0637

No Longer Available SUPPORT-CH - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

64

MTD 719-0329

Flail Blade

$33.99

$

Usually ships in 3-6 days

0

65

MTD 781-0735

Retaining Clip

$4.49

$

In Stock, Qty 20+

0

66

MTD 715-0166

Spring Roll Pin

$7.49

$

In Stock, Qty 13

0

67

MTD 711-0833B

Clevis Pin
(Superseded to 911-0833B)

$12.99

$

Usually ships in 3-6 days

0

68

MTD 681-0146

Impeller Assembly

$

$

Not available

69

MTD 742-0571

Shredder Blade
(Superseded to 942-0571)

$39.99

$

In Stock, only 4 left!

0

70

MTD 710-1054

Flat Hd. Scr. 5/16-24 x .75"

$4.49

$

In Stock, Qty 20+

0

71

MTD 681-0144

Arm Bracket Assembly

$

$

Not available

72

MTD 712-0411

Hex Top Lock Nut

$4.49

$

In Stock, Qty 20+

0

73

MTD 742-0653

Chipper Blade
(Superseded to 942-0544B)

$95.99

$

In Stock, only 2 left!

0

74

MTD 710-1254

Hex Patch Bolt 3/8-24 X 2.25" Gr. 8

$

$

Not available

75

MTD 736-0217

Lock Washer

$4.49

$

In Stock, only 3 left!

0

76

MTD 736-0247

Flat Washer

$10.99

$

In Stock, Qty 20+

0

83

MTD 731-1617

Tamper Plug

$148.99

$

In Stock, only 1 left!

0

84

MTD 764-0501

Chip Bag
(Superseded to 964-0501)

$

$

Not available

85

MTD 764-0502

Leaf Bag
(Superseded to 964-04025)

$

$

Not available

86

MTD 735-0127

Rubber Washer

$7.49

$

Usually ships in 3-6 days

0

87

MTD 735-0651

Rubber Flap

$

$

Not available

88

MTD 751B094095

Screw

Note: (Included in #95 assembly)

$

$

Currently unavailable

90

MTD 747-1125

Flap Retaining Bail

$

$

Not available

91

MTD 738-0946

Shoulder Screw

$

$

Not available

92

MTD 781-0752

Hopper Flap Mounting Bracket

Variations

781-0752-0689

MTD 781-0752-0689

No Longer Available BRACKET-MT - POLO GREEN (0689)

$

$

Not available

$

$

94

MTD 726-0135

Speed Cap Nut

$7.49

$

In Stock, Qty 19

0

95

MTD 751B493342

Fuel tank

$

$

Currently unavailable

96

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

97

MTD 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 20+

0

98

MTD 781-0497

Mounting Bracket

Variations

781-0497-0483

MTD 781-0497-0483

BRACKET-TANK MTG - CHARCOAL GRAY (0483)

$

$

Not available

781-0497-0637

MTD 781-0497-0637

BRACKET-TANK MTG - POWDER BLACK (0637)

$

$

Not available

781-0497-0638

MTD 781-0497-0638

BRACKET-TANK MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

99

MTD 781-0498

Support Bracket
(Superseded to 781-0498-0638)

Variations

781-0498-0483

MTD 781-0498-0483

BRACKET-TANK SUPPO - CHARCOAL GRAY (0483)

$

$

Not available

781-0498-0637

MTD 781-0498-0637

BRACKET-TANK SUPPO - POWDER BLACK (0637)

$

$

Not available

781-0498-0638

MTD 781-0498-0638

BRACKET-TANK SUPPO - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

100

MTD 738-0137A

Shoulder Screw

$11.99

$

In Stock, only 1 left!

0
