247.776050 (24A-464N799) - Craftsman Chipper Shredder (2011) (Sears) Chipper Chute & Wheels Parts Diagram

Chipper Shredder

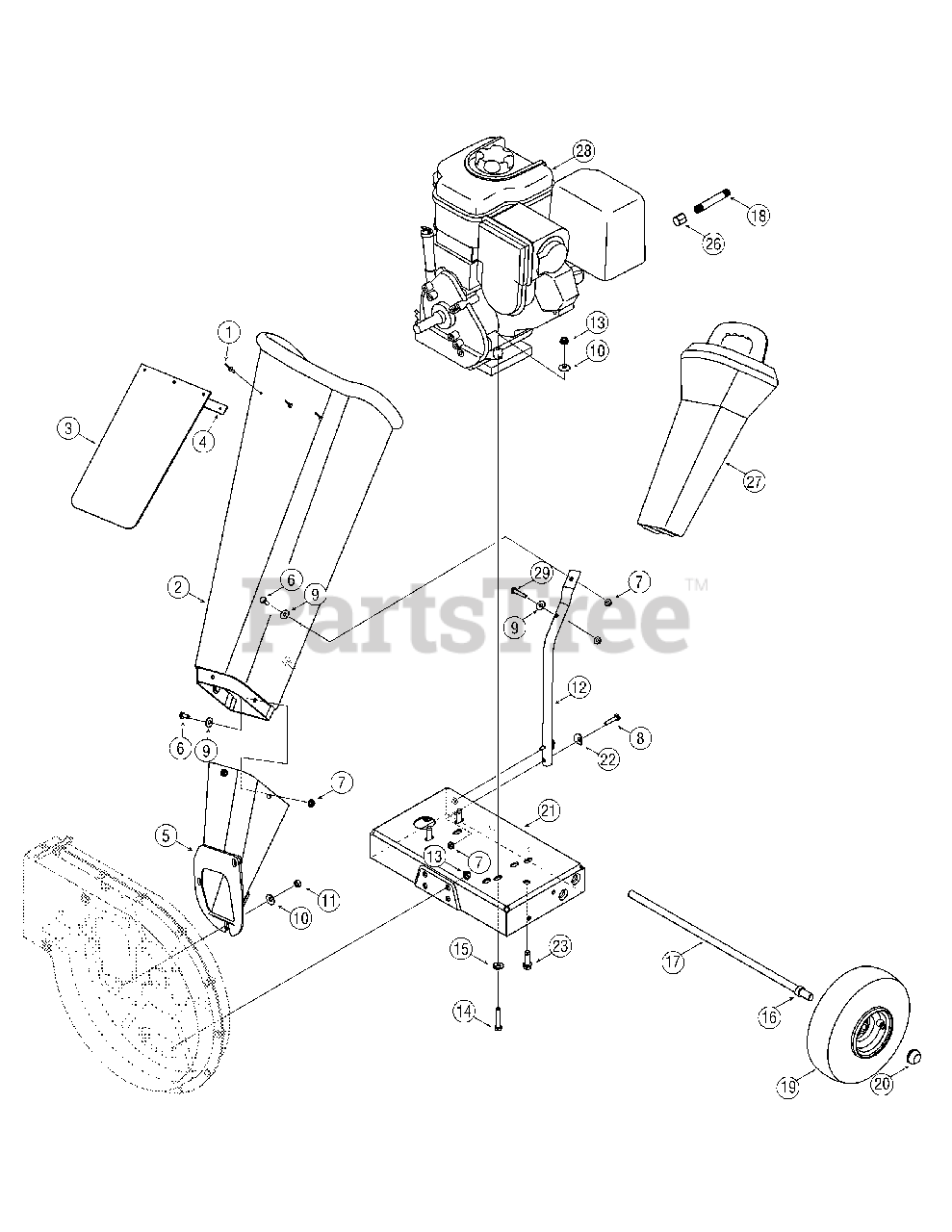

Chipper Chute & Wheels Parts Diagram

  • Title

1

MTD 728-0175

Pop Rivet

$4.49

$

In Stock, Qty 20+

0

2

MTD 753-05094

Chipper Shredder Chute

$136.99

$

In Stock, only 1 left!

0

3

MTD 735-0249A

Chute Flap

$23.99

$

Usually ships in 3-6 days

0

4

MTD 781-0633

Chute Flap Strip

$9.99

$

Usually ships in 3-6 days

0

5

MTD 681-04119-4044

Chipper Chute Assembly

$123.99

$

Usually ships in 3-6 days

0

6

MTD 710-0751

Hex Cap Screw 1/4 -20 x.620

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0809

Hex Cap Screw 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

9

MTD 736-0173

Flat Washer .28 ID x .74 OD

$3.99

$

In Stock, Qty 10

0

10

MTD 736-0242

Bell Washer .340 ID x .872 OD

$3.99

$

In Stock, Qty 20+

0

11

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 749-1004-4044

Support Brace

$40.99

$

Usually ships in 3-6 days

0

13

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

14

MTD 710-3180

Hex Cap Screw 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

15

MTD 936-0170

Bell Washer 5/16 x 1.0
(Superseded to 736-0170)

$

$

Not available

16

MTD 950-0786

Spacer

$6.99

$

Usually ships in 3-6 days

0

17

MTD 738-0813

Axle Assembly

$48.99

$

Usually ships in 3-6 days

0

18

MTD 737-0298

Pipe, Oil Drain

$11.99

$

Usually ships in 3-6 days

0

19

MTD 934-04009

Wheel Complete, 10.0 x 4.0 Gray

$113.99

$

Usually ships in 3-6 days

0

20

MTD 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

21

MTD 681-0183B-4044

Frame

$63.99

$

Usually ships in 3-6 days

0

22

MTD 936-0451

Washer,.320 ID x.93 OD
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.49

$

In Stock, Qty 7

0

26

MTD 737-0132

Oil Drain End Cap

$10.99

$

Usually ships in 3-6 days

0

27

MTD 731-1617

Tamper

$130.99

$

Usually ships in 3-6 days

0

28

Replacement Engine, 20T212-0835-F1

Note: For reference

$

$

Not available

29

MTD 710-0106

Hex Screw, 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0

MTD 964-04024

Chipper Bag Ass’y
(Superseded to 964-04024A)

Note: (Not Shown)

$104.99

$

Usually ships in 3-6 days

0
