247.776350 (24A-424F799) - Craftsman Chipper Shredder (2005) (Sears) Impeller Parts Diagram

Chipper Shredder

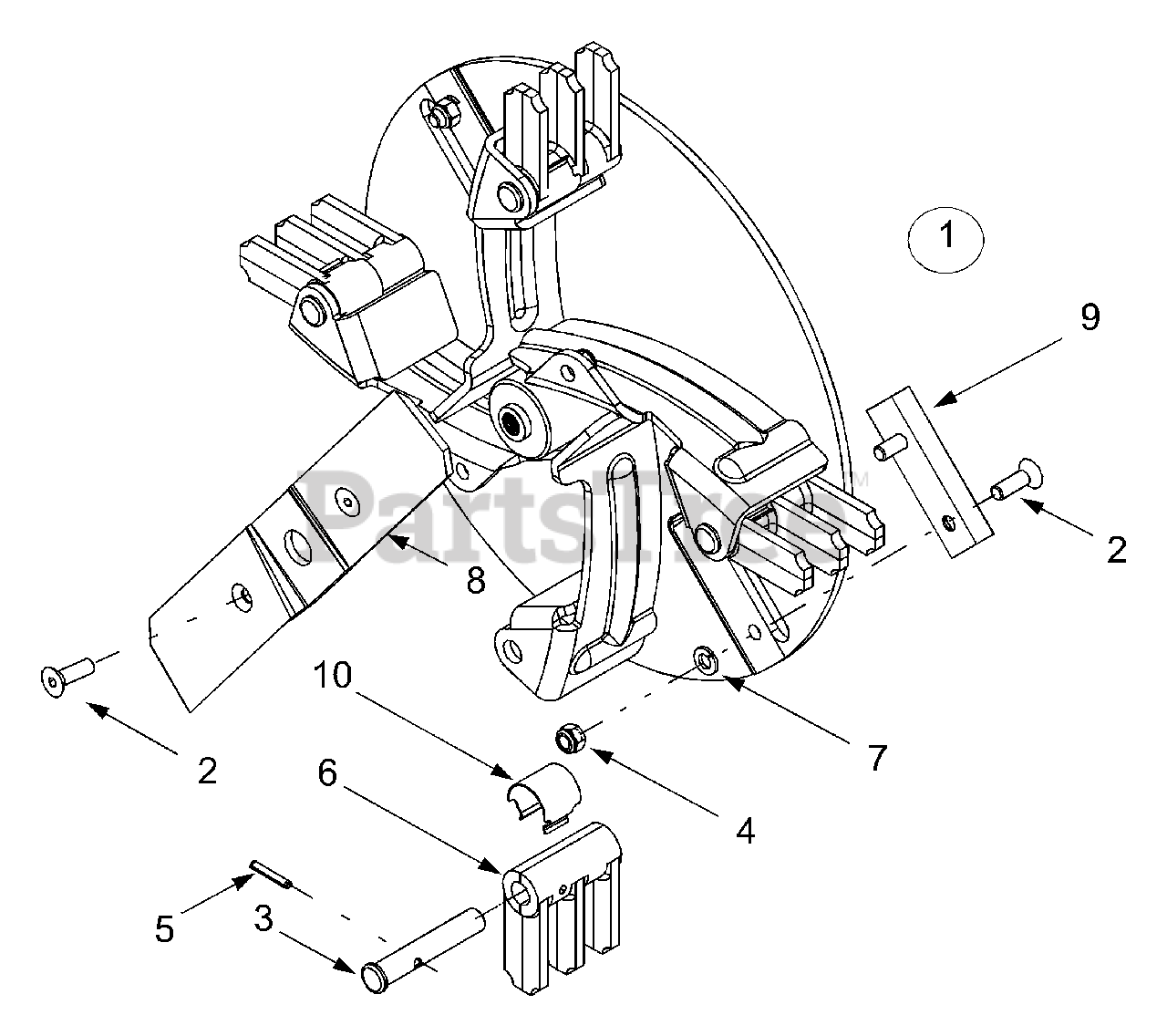

Impeller Parts Diagram

  • Title

1

MTD 681-04009

Impeller Assembly Complete
(Superseded to 981-04094)

$613.99

$

Usually ships in 3-6 days

0

2

MTD 710-1054

Machine Screw, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

3

MTD 711-0833B

Clevis Pin,.496
(Superseded to 911-0833B)

$12.99

$

In Stock, only 2 left!

0

4

MTD 712-0411

Hex Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

5

MTD 715-0166

Spiral Pin,.156 x 1.0

$6.99

$

In Stock, Qty 20+

0

6

MTD 719-0329

Flail

$31.99

$

In Stock, Qty 18

0

7

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

MTD 742-04050

Shredder Blade
(Superseded to 742-04050-0637)

$34.99

$

In Stock, only 1 left!

0

9

MTD 742-0544

Chipper Blade
(Superseded to 942-0544B)

$89.99

$

In Stock, Qty 14

0

10

MTD 781-0735

Retainer Clip

$4.49

$

In Stock, Qty 20+

0
