247.776370 (24A-464F799) - Craftsman Chipper Shredder (2007) (Sears) Chute & Frame Assembly Parts Diagram

Chipper Shredder

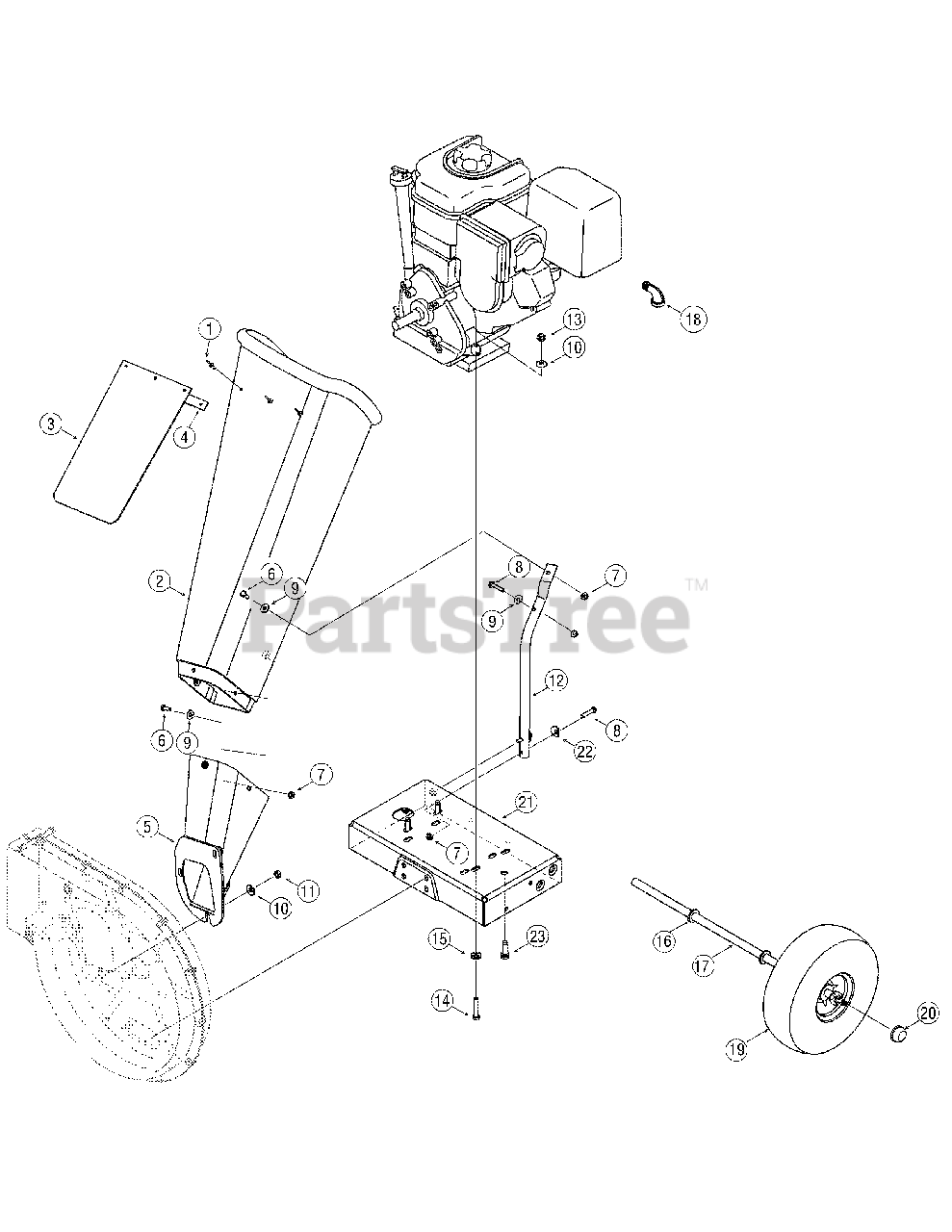

Chute & Frame Assembly Parts Diagram

  • Title

1

MTD 728-0175

Pop Rivet

$4.99

$

In Stock, Qty 20+

0

2

MTD 731-1899

Chipper Shredder Chute
(Superseded to 753-05094)

$155.99

$

Usually ships in 3-6 days

0

3

MTD 735-0249

Chute Flap
(Superseded to 735-0249A)

$26.99

$

Usually ships in 3-6 days

0

4

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

5

MTD 681-0068A

Chipper Chute Assembly

Variations

681-0068A-0483

MTD 681-0068A-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$177.99

$

Usually ships in 3-6 days

0

681-0068A-0498

MTD 681-0068A-0498

CHUTE ASM-CHIPPER - OLD CUB YELLOW (0498)

$

$

Not available

681-0068A-0638

MTD 681-0068A-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$

$

Not available

681-0068A-0650

MTD 681-0068A-0650

ASM-CHUTE - RED METALLIC (0650)

$

$

Not available

681-0068A-0662

MTD 681-0068A-0662

ASM-CHUTE - OYSTER GRAY (0662)

$

$

Not available

681-0068A-0674

MTD 681-0068A-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$

$

Not available

681-0068A-0689

MTD 681-0068A-0689

ASM-CHUTE - POLO GREEN (0689)

$

$

Not available

681-0068A-0691

MTD 681-0068A-0691

ASM-CHUTE - BLACK JACK (0691)

$

$

Not available

681-0068A-0709

MTD 681-0068A-0709

ASM-CHUTE - MASTERCRAFT GREEN (0709)

$

$

Not available

681-0068A-0716

MTD 681-0068A-0716

CHUTE ASM-CHIPPER - CUB YELLOW-99 (0716)

$

$

Not available

681-0068A-0721

MTD 681-0068A-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$

$

Not available

681-0068A-4044

MTD 681-0068A-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$

$

Not available

$

$

6

MTD 710-0751

Hex Cap Screw 1/4 -20 x.620

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0106

Hex Cap Screw 1/4-20 x 1.25

$4.49

$

In Stock, Qty 12

0

9

MTD 736-0173

Flat Washer.28 ID x.74 OD

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.99

$

In Stock, Qty 20+

0

11

MTD 712-3010

Hex Nut 5/16-18

$4.99

$

In Stock, Qty 20+

0

12

MTD 749-1004

Support Brace

Variations

749-1004-0637

MTD 749-1004-0637

SUPPORT-CHUTE - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

749-1004-0638

MTD 749-1004-0638

SUPPORT-CHUTE - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

749-1004-0689

MTD 749-1004-0689

SUPPORT-CHUTE - POLO GREEN (0689)

$49.99

$

Usually ships in 3-6 days

0

749-1004-0721

MTD 749-1004-0721

SUPPORT-CHUTE - SEARS RED (0721)

$46.99

$

Usually ships in 3-6 days

0

749-1004-4044

MTD 749-1004-4044

SUPPORT-CHUTE - CRAFTSMAN RED (4044)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

13

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-0805

Hex Cap Screw 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

15

MTD 736-0170

Bell Washer 5/16 x 1.0

$5.99

$

Usually ships in 3-6 days

0

16

MTD 736-0366

Flat Washer

$4.99

$

In Stock, Qty 20+

0

17

MTD 738-0813

Axle Assembly

$55.99

$

Usually ships in 3-6 days

0

18

MTD 737-0195

Elbow Fitting
(Superseded to 937-0195)

$18.99

$

Usually ships in 3-6 days

0

19

MTD 734-1845

Wheel Complete, 10.0 x 4.0 Gray
(Superseded to 753-08108)

$134.99

$

Usually ships in 3-6 days

0

20

MTD 726-0214

Push Cap

$11.99

$

In Stock, Qty 20+

0

21

MTD 681-0184A

Frame
(Superseded to 681-0184C)

Variations

681-0184A-0483

MTD 681-0184A-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$108.99

$

Usually ships in 3-6 days

0

681-0184A-0638

MTD 681-0184A-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$124.99

$

Usually ships in 3-6 days

0

681-0184A-0689

MTD 681-0184A-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$108.99

$

Usually ships in 3-6 days

0

681-0184A-0691

MTD 681-0184A-0691

FRAME ASM-SHREDDER - BLACK JACK (0691)

$108.99

$

Usually ships in 3-6 days

0

681-0184A-0709

MTD 681-0184A-0709

FRAME ASM-SHREDDER - MASTERCRAFT GREEN (0709)

$108.99

$

Usually ships in 3-6 days

0

681-0184A-0721

MTD 681-0184A-0721

FRAME ASM-SHREDDER - SEARS RED (0721)

$124.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

22

MTD 736-0451

Washer,.320 ID x.93 OD

$4.99

$

In Stock, Qty 8

0

23

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, Qty 9

0

MTD 723-0400

Safety Glasses (Not Shown)

$27.99

$

Usually ships in 3-6 days

0

MTD 664-04024

Chipper Bag Ass’y (Not Shown)
(Superseded to 964-04024A)

$118.99

$

Usually ships in 3-6 days

0
