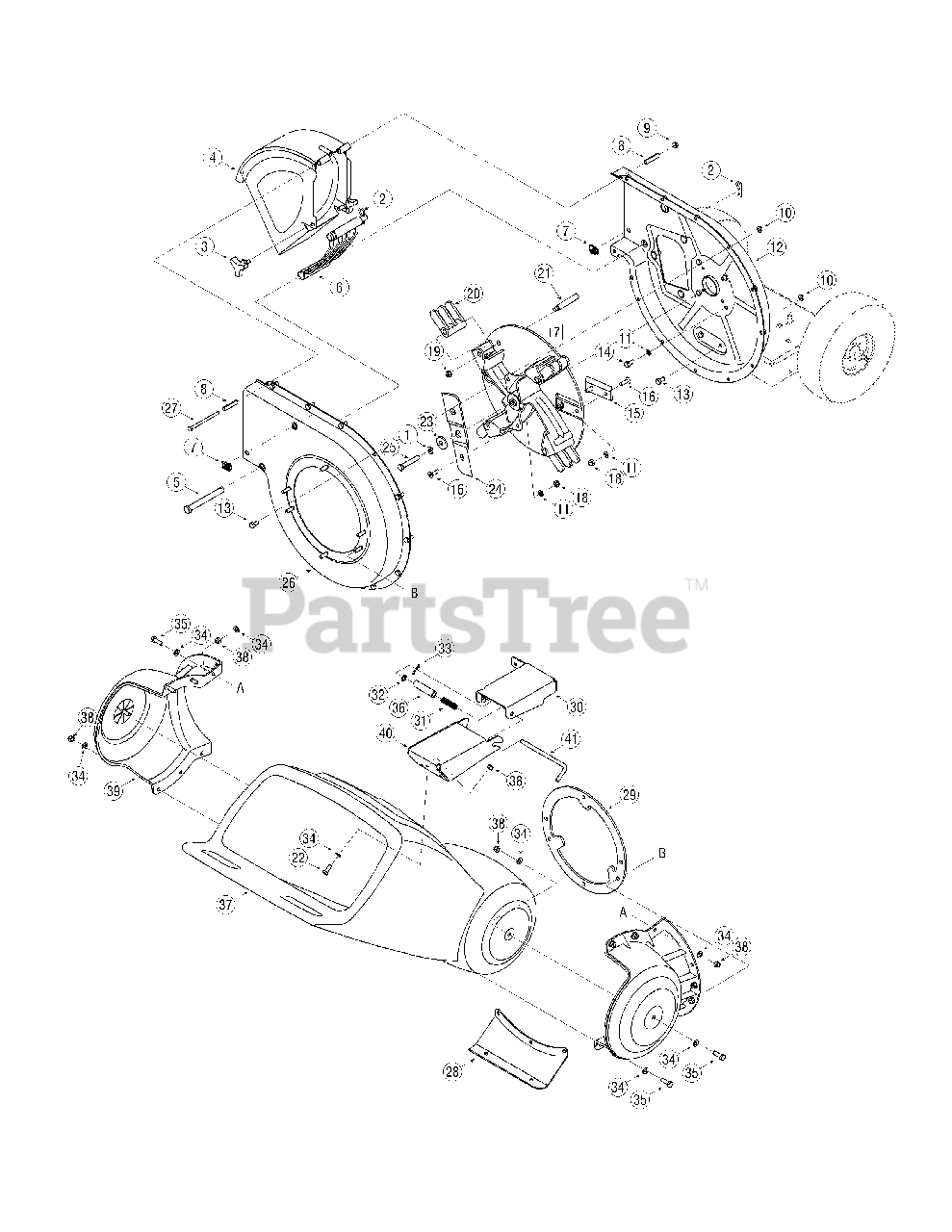

247.776380 (24A-464G099) - Craftsman Chipper Shredder (2010) (Sears) Impeller & Housing Assembly Parts Diagram

Chipper Shredder

Impeller & Housing Assembly Parts Diagram

  • Title

1

MTD 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, only 3 left!

0

2

MTD 914-0149B

Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

3

MTD 720-0170

Wing Knob 5/16-18

$11.99

$

In Stock, Qty 15

0

4

MTD 681-0094-4044

Chute Deflector Assembly
(Superseded to 681-0094A-0637)

$137.99

$

Usually ships in 3-6 days

0

5

MTD 911-0835

Clevis Pin

$13.99

$

In Stock, only 2 left!

0

6

MTD 781-0457-0637

Shredder Screen

$43.99

$

In Stock, Qty 7

0

7

MTD 926-0211

U-Nut 5/16-18
(Superseded to 726-0211)

$4.99

$

In Stock, only 2 left!

0

8

MTD 950-0793

Spacer

$3.99

$

In Stock, Qty 10

0

9

MTD 912-3027

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

12

MTD 981-04091

Inner Impeller Housing Assembly

$565.99

$

Usually ships in 3-6 days

0

13

MTD 710-3025

Hex Cap Screw 5/16-18 x.625

$4.49

$

In Stock, Qty 7

0

14

MTD 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, only 3 left!

0

15

MTD 942-0544B

Chipper Blade

$95.99

$

Usually ships in 3-6 days

0

16

MTD 710-1054

Hex Cap Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

17

MTD 681-04095

Impeller Assembly

$486.99

$

Usually ships in 3-6 days

0

18

MTD 912-0411

Hex Lock Nut 5/16-24
(Superseded to 712-0411)

$

$

Not available

19

MTD 712-0266A

Nut, Jam Lock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 719-04308

Flail Blade

$19.99

$

In Stock, Qty 5

0

21

MTD 738-04286A

Shoulder Pin, .5 x 2.625

$5.49

$

In Stock, only 3 left!

0

22

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0247

Flat Washer 3/8 x 1.25

$10.99

$

In Stock, Qty 20+

0

24

MTD 942-0571

Shredder Blade

$39.99

$

In Stock, only 4 left!

0

25

MTD 710-1254

Hex Cap Screw 3/8-24 x 2.25

$

$

Not available

26

MTD 681-0004A-4044

Outer Impeller Housing Assembly

$233.99

$

Usually ships in 3-6 days

0

27

MTD 710-0825

Hex Cap Screw 1/4-20 x 3.75

$5.99

$

In Stock, only 2 left!

0

28

MTD 781-0515-0637

Front Support Bracket

$56.99

$

Usually ships in 3-6 days

0

29

MTD 781-0574-0637

Shredder Plate

$196.99

$

Usually ships in 3-6 days

0

30

MTD 681-0104-4044

Rear Hopper Bracket Assembly
(Superseded to 681-0104-0691)

$67.99

$

Usually ships in 3-6 days

0

31

MTD 932-0306A

Compression Spring 1.75

$8.99

$

In Stock, Qty 17

0

32

MTD 936-0117

Flat Washer

$7.49

$

In Stock, only 2 left!

0

33

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 16

0

34

MTD 936-0264

Flat Washer.330 ID x .630 OD

$7.49

$

In Stock, Qty 9

0

35

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

36

MTD 748-0453

Spacer, .375 ID x 2.50 LG

$10.99

$

Usually ships in 3-6 days

0

37

MTD 731-1707A

Hopper Assembly

$462.99

$

Usually ships in 3-6 days

0

38

MTD 912-0429

Hex Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

39

MTD 731-1710A

Hopper Collar

$63.99

$

In Stock, only 2 left!

0

40

MTD 681-0123-4044

Front Hopper Bracket Assembly
(Superseded to 681-0123-0637)

$67.99

$

In Stock, only 1 left!

0

41

MTD 711-1128

Lock Rod

$17.99

$

Usually ships in 3-6 days

0
