247.776380 (24A-464G799) - Craftsman Chipper Shredder (2008) (Sears) General Assembly Parts Diagram

Chipper Shredder

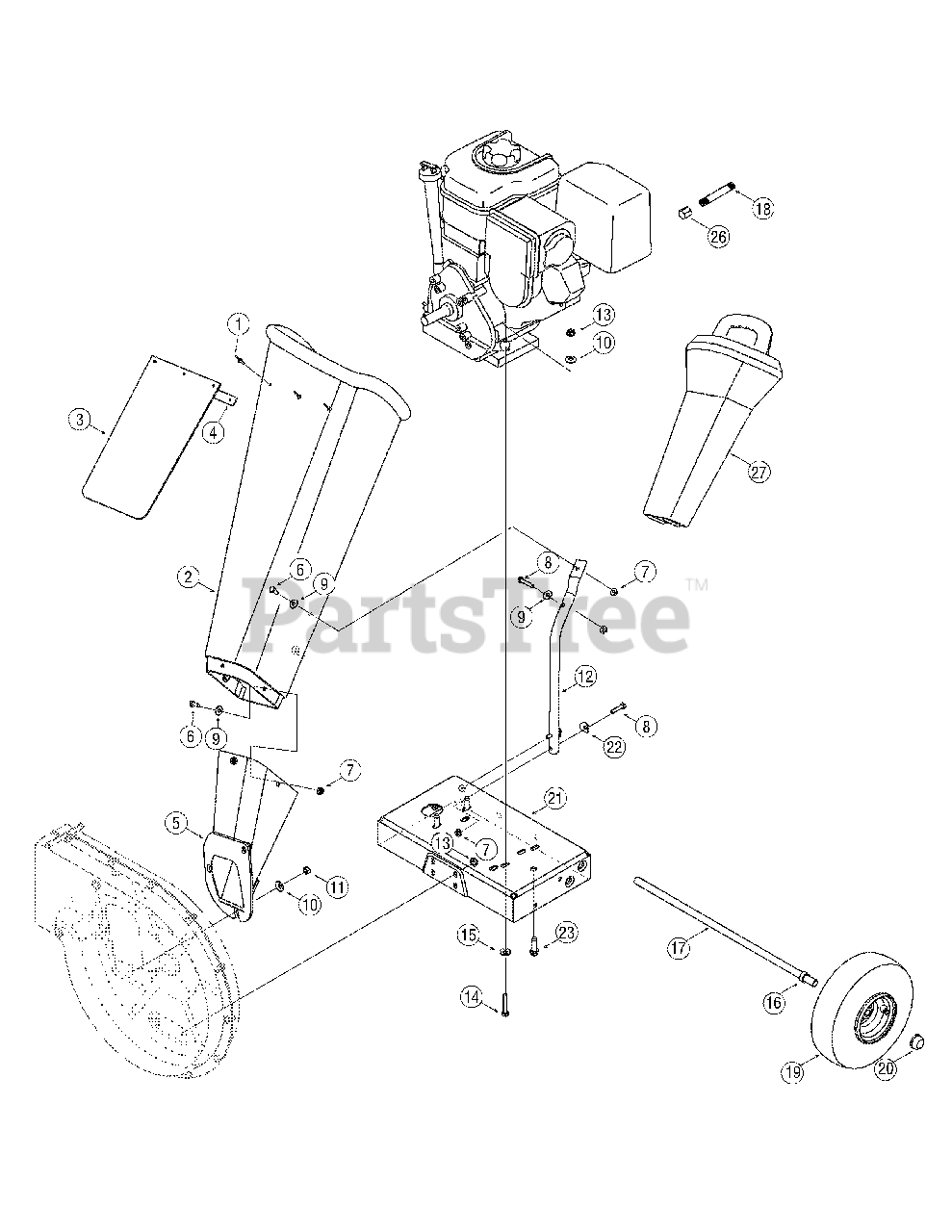

General Assembly Parts Diagram

  • Title

1

MTD 728-0175

Pop Rivet

$4.99

$

In Stock, Qty 20+

0

2

MTD 731-1899

Chipper Shredder Chute
(Superseded to 753-05094)

$146.99

$

In Stock, only 1 left!

0

3

MTD 735-0249

Chute Flap
(Superseded to 735-0249A)

$24.99

$

Usually ships in 3-6 days

0

4

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

5

MTD 681-0068A-0637

Chipper Chute Assembly

$

$

Currently unavailable

6

MTD 710-0751

Hex Cap Screw 1/4 -20 x.620

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0106

Hex Cap Screw 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

9

MTD 736-0173

Flat Washer.28 ID x.74 OD

$4.49

$

In Stock, Qty 10

0

10

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 749-1004-0637

Support Brace

$46.99

$

Usually ships in 3-6 days

0

13

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

15

MTD 736-0170

Bell Washer 5/16 x 1.0

$5.99

$

Usually ships in 3-6 days

0

16

MTD 750-0786

Spacer
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

17

MTD 738-0813

Axle Assembly

$52.99

$

Usually ships in 3-6 days

0

18

MTD 737-0298

Pipe, Oil Drain

$12.99

$

Usually ships in 3-6 days

0

19

MTD 634-04009

Wheel Complete, 10.0 x 4.0 Gray
(Superseded to 934-04009)

$122.99

$

Usually ships in 3-6 days

0

20

MTD 726-0214

Push Cap

$10.99

$

In Stock, Qty 20+

0

21

MTD 681-0183A-0637

Frame

$

$

Currently unavailable

22

MTD 736-0451

Washer,.320 ID x.93 OD

$4.49

$

In Stock, only 2 left!

0

23

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, Qty 7

0

26

MTD 737-0132

Oil Drain End Cap

$10.99

$

Usually ships in 3-6 days

0

27

MTD 731-1617

Tamper

$139.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0

MTD 664-04024

Chipper Bag Ass’y
(Superseded to 964-04024A)

Note: (Not Shown)

$112.99

$

Usually ships in 3-6 days

0
