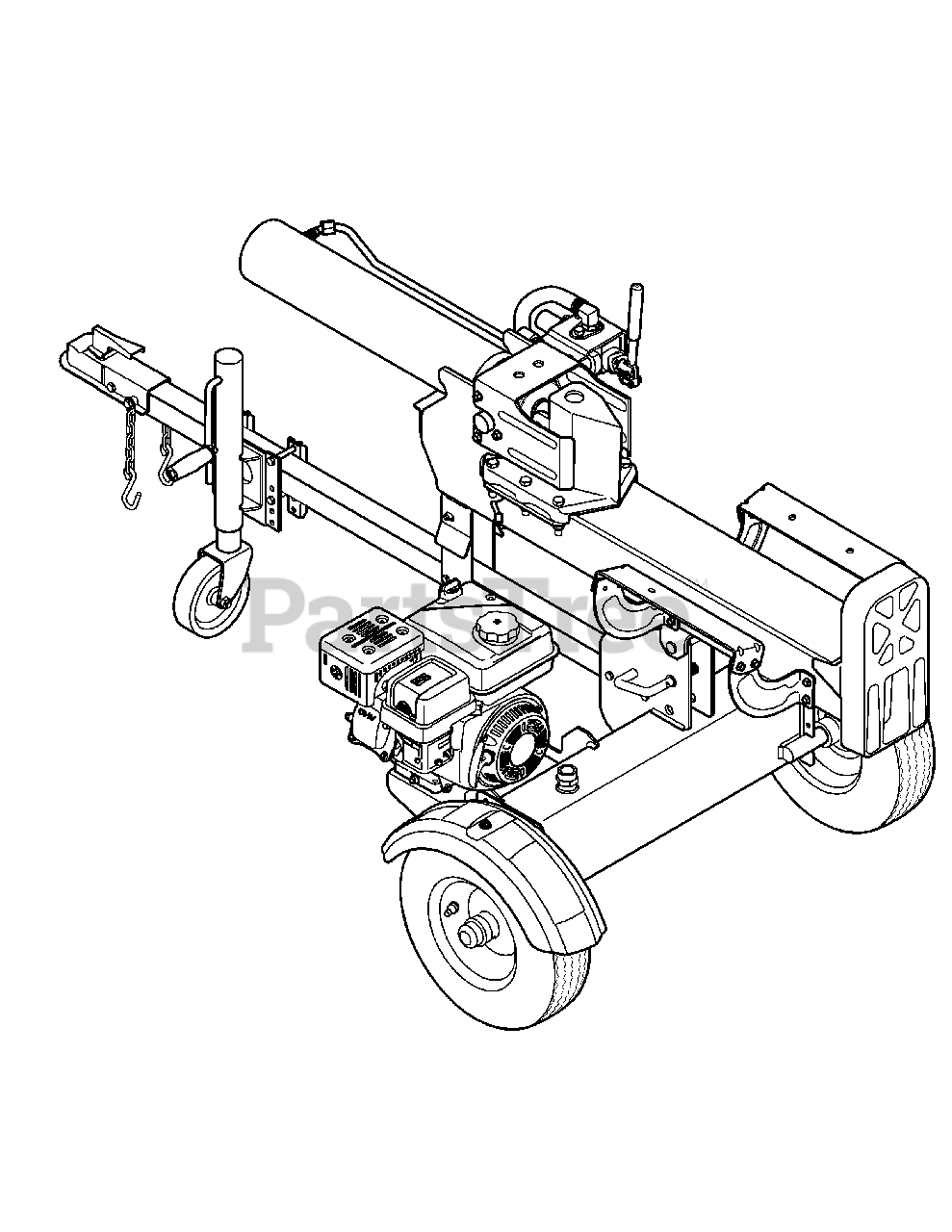

247.776611 (24BG57M1799) - Craftsman Log Splitter (2012) .Quick Reference Parts Diagram

Log Splitter

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 951-10794

Air & Pre Filter

$13.99

$

In Stock, Qty 20+

0

MTD 951-10651

Fuel Filter

$14.99

$

In Stock, Qty 10

0

MTD 918-04713

Hydraulic Cylinder

$760.99

$

Usually ships in 3-6 days

0

MTD 723-0405

Hydraulic Filter
(Superseded to 723P0405)

$39.99

$

In Stock, only 4 left!

0

MTD 737-04308

Inlet Filter

$40.99

$

Usually ships in 3-6 days

0

MTD 737-0348A

Vented Dipstick

$21.99

$

In Stock, only 4 left!

0

MTD 718-04392

Flexible Coupling .500

$13.99

$

In Stock, only 4 left!

0

MTD 718-04474

Flexible Coupling

$24.99

$

Usually ships in 3-6 days

0

MTD 735-04103

Spider Bushing

$13.99

$

In Stock, Qty 8

0

MTD 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$42.99

$

In Stock, only 1 left!

0

MTD 720-04088

Grip

$9.99

$

In Stock, only 1 left!

0

MTD 913-04036

Valve Handle Link

$19.99

$

In Stock, only 2 left!

0

MTD 713-0433A

Chain

$41.99

$

Usually ships in 3-6 days

0

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

MTD 634-0186

Wheel Assembly

$337.99

$

In Stock, only 1 left!

0
