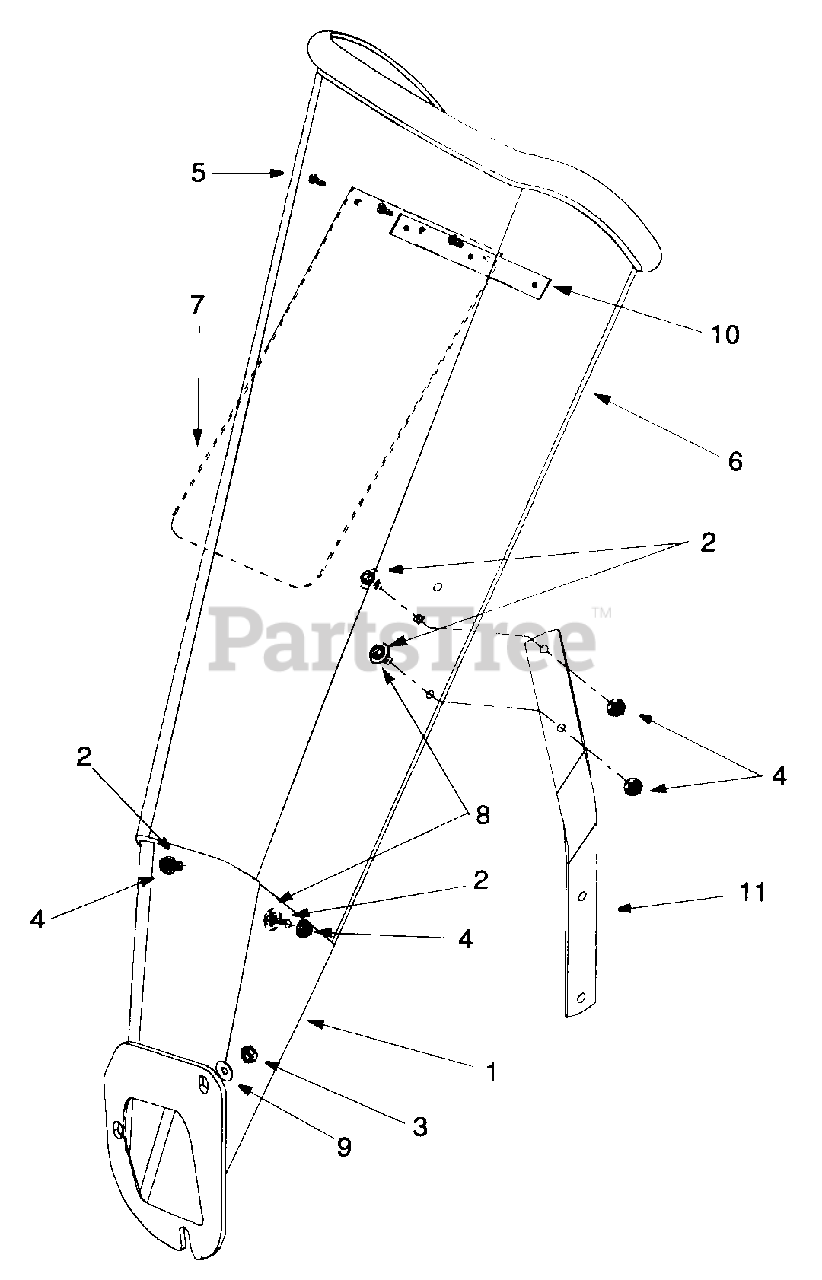

247.777630 (24A-203D099) - Craftsman Shredder Vacuum (1999) (Sears) Chute Parts Diagram

Shredder Vacuum

Chute Parts Diagram

  • Title

1

MTD 681-0068

Chipper Chute Assembly
(Superseded to 681-0068A)

Variations

MTD 681-0068-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0662

ASM-CHUTE - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0689

ASM-CHUTE - POLO GREEN (0689)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0691

ASM-CHUTE - BLACK JACK (0691)

$165.99

$

Usually ships in 3-6 days

0

$165.99

$

Usually ships in 3-6 days

0

2

MTD 710-0751

Hex Cap Screw

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-3027

Hex Flange Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

5

MTD 728-0175

Pop Rivet

$4.49

$

In Stock, Qty 20+

0

6

MTD 731-1574A

Chipper Chute, Black

$188.99

$

Usually ships in 3-6 days

0

7

MTD 735-0249

Chute Flap
(Superseded to 735-0249A)

$23.99

$

Usually ships in 3-6 days

0

8

MTD 736-0173

Flat Washer, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

9

MTD 736-0242

Bell Washer, .34 x .872

$3.99

$

In Stock, Qty 20+

0

10

MTD 781-0633

Chute Flap Strip

$9.99

$

Usually ships in 3-6 days

0

11

MTD 781-0780

Chute Bracket
(Superseded to 781-0780-0637)

Variations

MTD 781-0780-0637

Chute Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0
