247.777630 (24A-203D099) - Craftsman Shredder Vacuum (1999) (Sears) Chute And Bag Parts Diagram

Shredder Vacuum

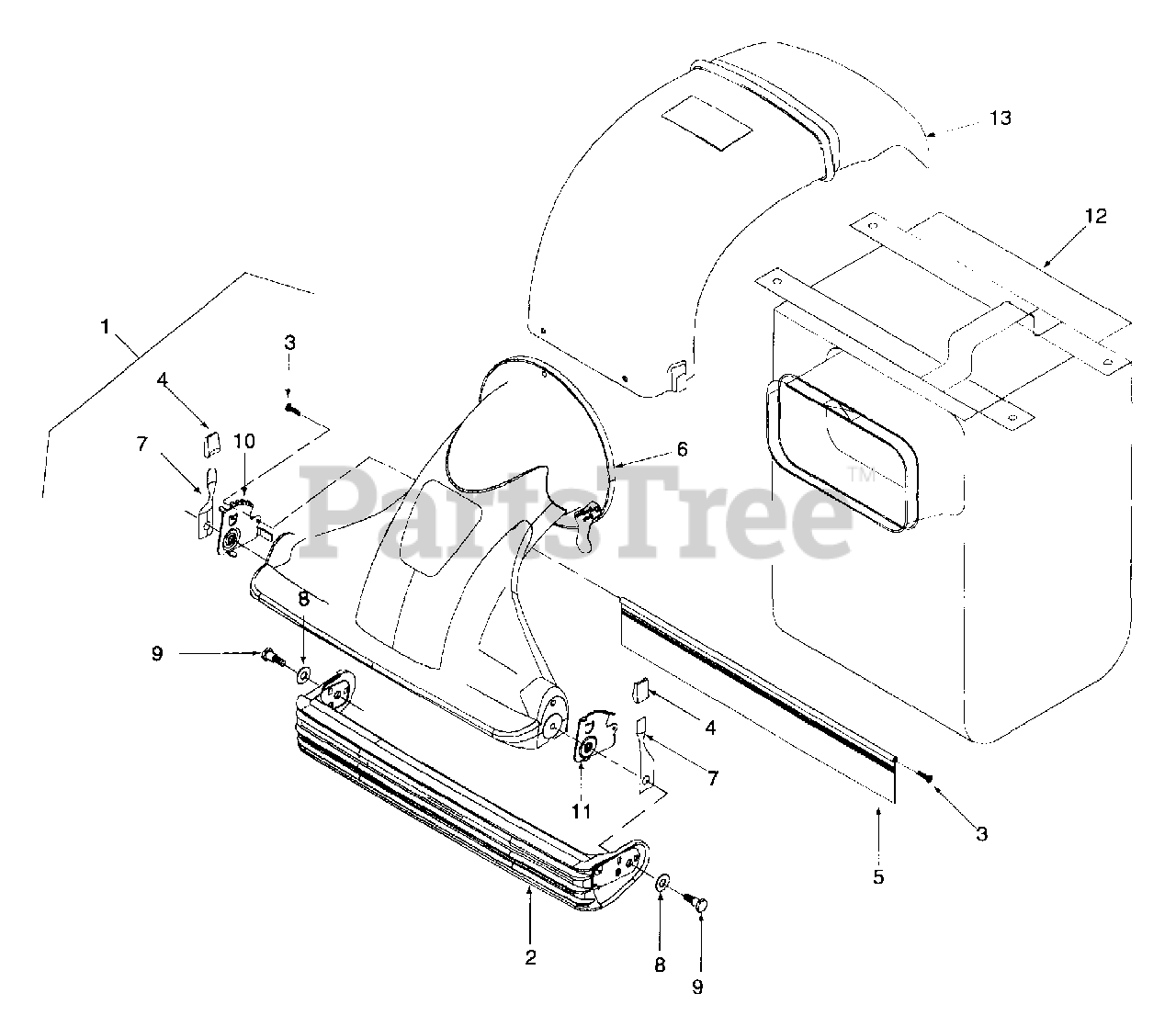

Chute And Bag Parts Diagram

  • Title

1

MTD 631-0086

Nozzle Assembly Complete

Note: (Includes Keys 2-11)

$

$

Not available

2

MTD 631-0049

Door Assembly, Black

$

$

Not available

3

MTD 710-0969

Screw, Truss Hd Tapp

$4.99

$

In Stock, only 2 left!

0

4

MTD 720-0190

Knob, Height Adj.
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 2 left!

0

5

MTD 731-1831

Flap, Nozzle Rear

$21.99

$

In Stock, Qty 12

0

6

Nozzle, Black, w/ Switch Bracket

Note: (Use 631-0086)

$

$

Not available

7

MTD 732-0754

Spring Lever

$10.99

$

Usually ships in 3-6 days

0

8

MTD 736-3084

Washer, Flat, .510 x 1.20 x .060

$5.49

$

In Stock, Qty 20+

0

9

MTD 738-0913

Screw, Shoulder, .50 x 5/8-16

$13.99

$

Usually ships in 3-6 days

0

10

MTD 781-0702

Bracket, Door Index RH
(Superseded to 781-0702-0637)

Variations

781-0702-0637

MTD 781-0702-0637

Index Door Bracket, RH - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

11

MTD 781-0703

Bracket, Door Index LH
(Superseded to 781-0703-0637)

Variations

781-0703-0637

MTD 781-0703-0637

Index Door Bracket, LH - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

12

MTD 764-0522

Bag, 3 Bushel
(Superseded to 964-0522)

$

$

Not available

13

MTD 731-1838A

Discharge Chute

$205.99

$

Usually ships in 3-6 days

0
