247.795860 (243-650C099) - Craftsman Chipper Shredder (1993) (Sears) General Assembly Parts Diagram

Chipper Shredder

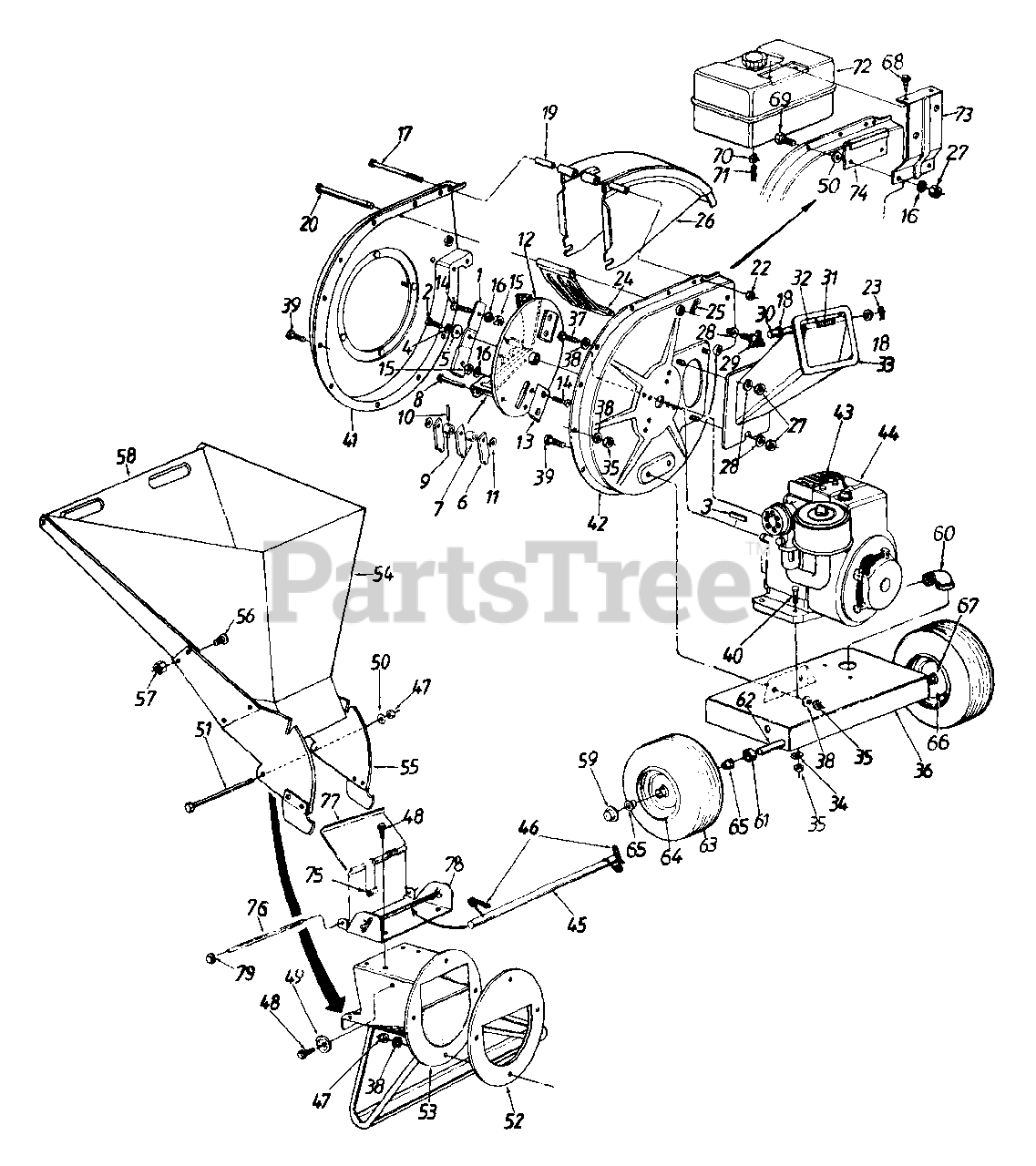

General Assembly Parts Diagram

  • Title

1

MTD 742-0571

Blade
(Superseded to 942-0571)

$39.99

$

In Stock, only 4 left!

0

2

MTD 710-0818

Hex Patch Bolt 3/8-24 x 2" Lg. (Gr. 8)

$7.49

$

In Stock, only 2 left!

0

MTD 710-1254

Hex Patch Bolt 3/8-24 x 2.25" (Gr. 8)

$7.99

$

In Stock, only 4 left!

0

3

MTD 714-0114

Sq. Key 1/4 x 2.0" Lg.
(Superseded to 914-0114)

Note: New Part

$4.49

$

In Stock, only 2 left!

0

4

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, only 3 left!

0

5

MTD 736-0247

Fl-Wash..406" I.D. x 1.25" O.D. Hdn.

$10.99

$

In Stock, Qty 20+

0

6

MTD 11459B

Flail
(Superseded to 91459B)

$22.99

$

In Stock, Qty 19

0

7

MTD 711-0564

Flail Spacer
(Superseded to 911-0564)

$17.99

$

In Stock, Qty 9

0

8

MTD 711-0833A

Clevis Pin .496" Dia.
(Superseded to 911-0833B)

$12.99

$

In Stock, only 2 left!

0

9

MTD 711-0834

Flail Spacer w/.160" Dia. Hole
(Superseded to 911-0834A)

$

$

Not available

10

MTD 715-0249

Spring Roll Pin 1.12" Lg.
(Superseded to 915-0249)

$7.49

$

In Stock, Qty 19

0

11

MTD 736-0192

Fl-Wash..531" I.D. x.94" O.D.

$4.99

$

In Stock, Qty 16

0

12

MTD 681-0002

impeller Ass'y. Comp.

$

$

Not available

MTD 681-0030

Impeller Ass'y. Comp.
(Superseded to 981-04096)

Note: New Part

$636.99

$

Usually ships in 3-6 days

0

13

MTD 742-0544

Chipper Blade
(Superseded to 942-0544B)

Note: New Part

$95.99

$

In Stock, only 2 left!

0

14

MTD 710-1054

Flat Hd. Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0411

Hex Top L-Nut 5/16-24 (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

MTD 710-0825

Hex Bolt 1/4-20 x 3.75" Lg.

$5.99

$

In Stock, only 2 left!

0

18

MTD 736-0142

Fl-Wash..281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

19

MTD 750-0793

Chute Hinge Spacer 1.66" Lg.
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 10

0

20

MTD 711-0835

Clevis Pin .5" Dia. x 4.62" Lg.
(Superseded to 911-0835)

$13.99

$

In Stock, only 2 left!

0

22

MTD 712-0291

Hex Ctr. L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 4 left!

0

23

MTD 714-3010

Cotter Pin 3/32" x 5/8"

$4.99

$

In Stock, Qty 7

0

24

MTD 781-0457

Shredder Screen
(Superseded to 781-0457-0637)

Variations

MTD 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$43.99

$

In Stock, Qty 7

0

$43.99

$

In Stock, Qty 7

0

25

MTD 714-0149B

Internal Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 5

0

26

MTD 781-0480

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Variations

MTD 781-0480-0480

CHUTE-DISCHARGE - BRILLIANT GREEN (0480)

$137.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$137.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$137.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$137.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0662

CHUTE-DISCHARGE - OYSTER GRAY (0662)

$137.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$137.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0480-0686

No Longer Available DEFLECTOR - SIMPLICITY ORANGE (0686)

$

$

Not available

$143.99

$

Usually ships in 3-6 days

0

27

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0242

Bell-Wash..345" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

29

MTD 720-0170

Hand Knob

$11.99

$

In Stock, Qty 17

0

30

MTD 747-0744A

Chipper Door Rod

$

$

Not available

31

MTD 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

32

MTD 781-0489

Chipper Door

Variations

MTD 781-0489-0483

No Longer Available DOOR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0489-0498

No Longer Available DOOR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0489-0629

No Longer Available DOOR - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0489-0637

No Longer Available DOOR-CHIPP - POWDER BLACK (0637)

$

$

Not available

MTD 781-0489-0638

No Longer Available DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0489-0662

No Longer Available DOOR - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0489-0665

No Longer Available DOOR - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

MTD 781-0475

Chipper Chute Ass'y.

Variations

MTD 781-0475-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0475-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0475-0498

No Longer Available CHUTE CHIP - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0475-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0475-0637

No Longer Available CHUTE-CHIP - POWDER BLACK (0637)

$

$

Not available

MTD 781-0475-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0475-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 781-0475-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0475-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0475-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0475-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 781-0475-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

34

MTD 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

35

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 20+

0

36

MTD 781-0510A

Shredder Frame
(Superseded to 681-0184C)

Note: Model (645C)

Variations

MTD 781-0510A-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$108.99

$

Usually ships in 3-6 days

0

MTD 781-0510A-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$108.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

MTD 781-0459A

Shredder Frame

Note: Model (650C)

Variations

MTD 781-0459A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0459A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0459A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0459A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

37

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 7

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.99

$

In Stock, Qty 20+

0

41

MTD 681-0004

Flail Housing Ass'y.- L.H.
(Superseded to 681-0004A)

Variations

MTD 681-0004-0498

HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$250.99

$

Usually ships in 3-6 days

0

MTD 681-0004-0637

HOUSING ASSY-FLAIL - POWDER BLACK (0637)

$250.99

$

Usually ships in 3-6 days

0

MTD 681-0004-0638

HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$250.99

$

Usually ships in 3-6 days

0

MTD 681-0004-0483

HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$233.99

$

Usually ships in 3-6 days

0

MTD 681-0004-0662

HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$202.99

$

Usually ships in 3-6 days

0

MTD 681-0004-0665

HOUSING ASSY-FLAIL - YARDMAN GREEN (0665)

$202.99

$

Usually ships in 3-6 days

0

MTD 681-0004-0689

HOUSING ASSY-FLAIL - POLO GREEN (0689)

$233.99

$

Usually ships in 3-6 days

0

$202.99

$

Usually ships in 3-6 days

0

42

MTD 781-0474A

Flail Housing Ass'y.- R.H.

Variations

MTD 781-0474A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0474A-0483

No Longer Available HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0474A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0474A-0629

No Longer Available HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0474A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0474A-0638

No Longer Available HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0474A-0648

No Longer Available HOUSING AS - TECH GRAY (0648)

$

$

Not available

MTD 781-0474A-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0474A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0474A-0674

No Longer Available HOUSING AS - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

44

Engine

$

$

Not available

45

MTD 747-0531A

Release Bar

$

$

Not available

46

MTD 732-0546

Torsion Spring 1.06" Lg.
(Superseded to 932-0546)

$5.49

$

Usually ships in 3-6 days

0

47

MTD 712-0429

Elastic Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

49

MTD 11480

Stop Washer

$

$

Not available

50

MTD 736-0264

Fl-Wash. 5/16" I.D.

$7.49

$

In Stock, only 3 left!

0

51

MTD 710-0542

Hex Bolt 5/16-18 x 8.38" Lg.

$

$

Not available

52

MTD 781-0487B

Back-Up Plate

Variations

MTD 781-0487B-0637

No Longer Available PLATE-BACK - POWDER BLACK (0637)

$

$

Not available

MTD 781-0487B-0638

No Longer Available PLATE-BACK - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

53

MTD 16522B

Inlet Guide Ass'y.

Variations

MTD 16522B-0483

No Longer Available GUIDE ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16522B-0498

No Longer Available GUIDE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16522B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16522B-0638

No Longer Available GUIDE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16522B-0662

No Longer Available GUIDE ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

54

MTD 781-0494

Pivot Hopper Hood

Variations

MTD 781-0494-0483

No Longer Available HOOD-PIVOT - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0494-0498

No Longer Available HOOD-PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0494-0499

No Longer Available HOOD-PIVOT - CUB BEIGE (0499)

$

$

Not available

MTD 781-0494-0638

No Longer Available HOOD-PIVOT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0494-0662

No Longer Available HOOD-PIVOT - OYSTER GRAY (0662)

$

$

Not available

$

$

55

MTD 16524B

Upper Guide Assembly

Variations

MTD 16524B-0483

No Longer Available GUIDE ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16524B-0498

No Longer Available GUIDE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16524B-0638

No Longer Available GUIDE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16524B-0648

No Longer Available GUIDE ASM - TECH GRAY (0648)

$

$

Not available

MTD 16524B-0662

No Longer Available GUIDE ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

56

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5"

$4.99

$

Usually ships in 3-6 days

0

57

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

58

MTD 11461B

Upper Leaf Ramp Section

Variations

MTD 11461B-0483

No Longer Available RAMP SECTI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 11461B-0498

No Longer Available RAMP SECTI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 11461B-0629

No Longer Available RAMP SECTI - SILVER FLAKE (0629)

$

$

Not available

MTD 11461B-0638

No Longer Available RAMP SECTI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 11461B-0662

No Longer Available RAMP SECTI - OYSTER GRAY (0662)

$

$

Not available

$

$

59

MTD 726-0214

Push Cap 5/8" Dia. Rod

$11.99

$

In Stock, Qty 20+

0

60

MTD 737-0195

Drain Elbow (5 HP B & S)
(Superseded to 937-0195)

Note: New Part

$18.99

$

Usually ships in 3-6 days

0

MTD 737-0125

Drain Elbow (8 HP B & S)

$

$

Not available

61

MTD 750-0786

Spacer .64" I.D. x .38" Lg.
(Superseded to 950-0786)

$7.99

$

Usually ships in 3-6 days

0

62

MTD 738-0813

Shredder Axle

$55.99

$

Usually ships in 3-6 days

0

63

MTD 734-1597

Wheel Ass'y. Comp.
(Superseded to 934-04009)

Variations

MTD 734-1597-0911

Wheel Assembly Complete, 10 - Carlisle Gray (0911)

$129.99

$

Usually ships in 3-6 days

0

MTD 734-1597-0931

Wheel Assembly Complete, 10 - Carlisle Beige (0931)

$129.99

$

Usually ships in 3-6 days

0

MTD 734-1597-0941

Wheel Assembly Complete, 10 - Carlisle Yellow (0941)

$129.99

$

Usually ships in 3-6 days

0

$129.99

$

Usually ships in 3-6 days

0

MTD 734-1598

Tire Only
(Superseded to 734-1598-0901)

Variations

MTD 734-1598-0901

Tire, 648 4.10 /3.5 - Carlisle (0901)

$126.99

$

Usually ships in 3-6 days

0

MTD 734-1598-0902

Tire, 648 4.10 /3.5 - Dico (0902)

$126.99

$

Usually ships in 3-6 days

0

MTD 734-1598-0905

Tire, 648 4.10 /3.5 - Duro (0905)

$126.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

64

MTD 734-1455

Rim Only

$

$

Not available

65

MTD 741-0487

Flange Bearing .632" I.D.
(Superseded to 741-0487C)

$7.99

$

In Stock, Qty 20+

0

66

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

67

MTD 737-0280

Grease Fltting

$8.49

$

In Stock, only 4 left!

0

68

MTD 710-0895

Hex Hi-Low Scr. 1/4 x .75"

Note: Model (650C)

$6.99

$

In Stock, Qty 20+

0

69

MTD 710-3038

Hex Bolt 5/16-18 x .88" Lg.

Note: Model (650C)

$5.49

$

In Stock, only 1 left!

0

70

MTD 726-0205

Hose Clamp

Note: Model (650C)

$4.49

$

In Stock, Qty 20+

0

71

MTD 751-0535-7

Fuel Line - 7 in.
(Superseded to 751-10349-13)

Note: Model (650C)

$18.99

$

In Stock, only 4 left!

0

72

MTD 751-0570

Fuel Tank Ass'y. Comp.
(Superseded to BS-691993)

Note: New Part; Model (650C)

$159.99

$

In Stock, only 1 left!

0

73

MTD 781-0497

Fuel Tank Mtg. Brkt.

Note: New Part; Model (650C)

Variations

MTD 781-0497-0483

BRACKET-TANK MTG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0497-0637

BRACKET-TANK MTG - POWDER BLACK (0637)

$

$

Not available

MTD 781-0497-0638

BRACKET-TANK MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

74

MTD 781-0498

Fuel Tank Support Brkt.
(Superseded to 781-0498-0638)

Note: New Part; Model (650C)

Variations

MTD 781-0498-0483

BRACKET-TANK SUPPO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0498-0637

BRACKET-TANK SUPPO - POWDER BLACK (0637)

$

$

Not available

MTD 781-0498-0638

BRACKET-TANK SUPPO - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

75

MTD 732-0629

Torsion Spring
(Superseded to 932-0629)

$

$

Not available

76

MTD 747-0747

Hopper Door Rod

$

$

Not available

77

MTD 781-0492

Hopper-Pivot Door
(Superseded to 781-0492A)

Variations

MTD 781-0492-0483

No Longer Available DOOR-HOPPE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0492-0498

No Longer Available DOOR-HOPPE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0492-0637

No Longer Available DOOR-HOPPER PIVOT - POWDER BLACK (0637)

$

$

Not available

MTD 781-0492-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0492-0648

No Longer Available DOOR-HOPPE - TECH GRAY (0648)

$

$

Not available

MTD 781-0492-0662

No Longer Available DOOR-HOPPE - OYSTER GRAY (0662)

$

$

Not available

$

$

78

MTD 781-0493

Hopper Lockout Brkt.

Variations

MTD 781-0493-0483

No Longer Available BRACKET-HO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0493-0498

No Longer Available BRACKET-HO - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0493-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

MTD 781-0493-0638

No Longer Available BRACKET-HO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0493-0662

No Longer Available BRACKET-HO - OYSTER GRAY (0662)

$

$

Not available

$

$

79

MTD 726-0106

Cap Speed Nut 1/4" Rod

$4.49

$

Usually ships in 3-6 days

0

MTD 764-0199A

Bag
(Superseded to 964-04022)

$79.99

$

In Stock, only 3 left!

0

MTD 723-0400

Safety Glasses

$27.99

$

Usually ships in 3-6 days

0
