247.799630 (246-331D099) - Craftsman Shredder Vacuum (1996) (Sears) Impeller Assembly Parts Diagram

Shredder Vacuum

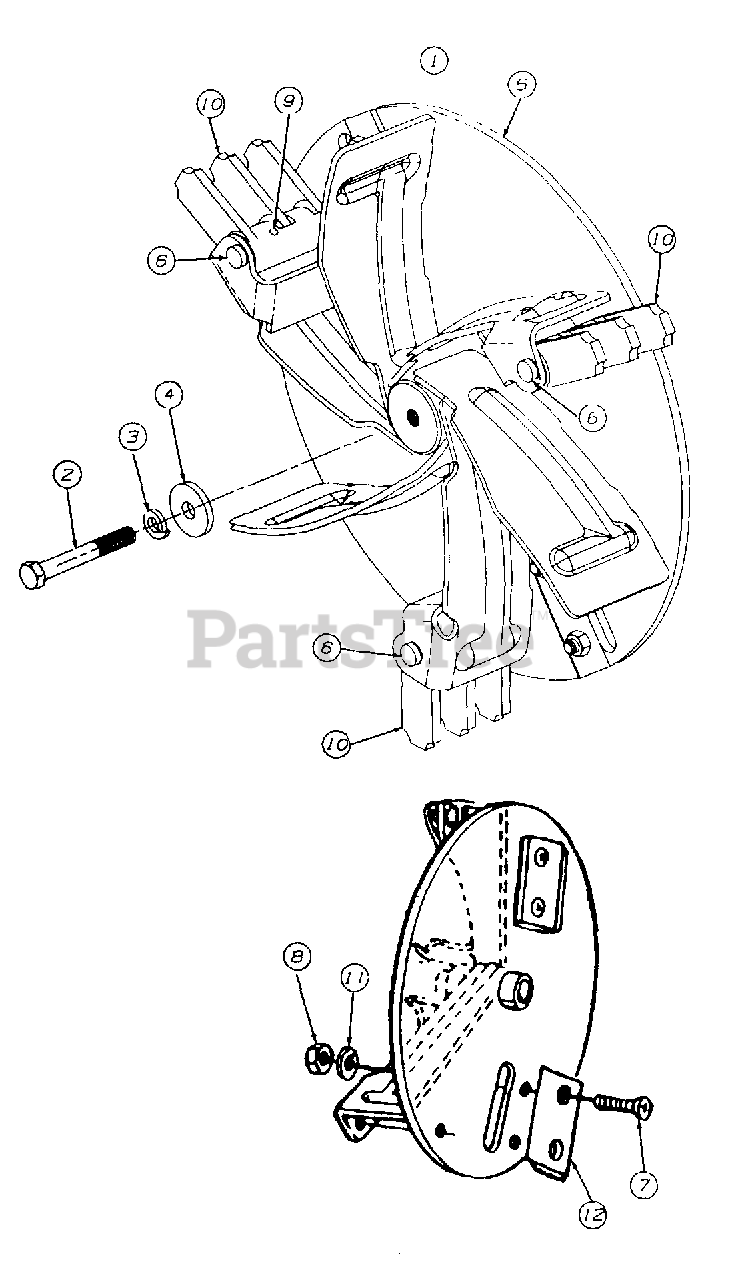

Impeller Assembly Parts Diagram

  • Title

1

MTD 681-0078

IMPELLER ASSY COMP.
(Superseded to 981-04091)

Note: For model 315B-INCL. REF. NOS. 2 THRU 12)

$565.99

$

Usually ships in 3-6 days

0

MTD 681-0051

IMPELLER ASS'Y COMP.
(Superseded to 981-04090)

Note: For model 315D-INCL. REF. NOS. 2 THRU 12)

$372.99

$

Usually ships in 3-6 days

0

2

MTD 710-1273

SCREW-HEX

$8.49

$

Usually ships in 3-6 days

0

3

MTD 736-0217

WASHER-LOCK

$4.49

$

In Stock, only 3 left!

0

4

MTD 736-0247

WASHER-FLAT

$10.99

$

In Stock, Qty 20+

0

5

MTD 681-0078

IMPELLER ASSY
(Superseded to 981-04091)

$565.99

$

Usually ships in 3-6 days

0

6

MTD 711-0833A

PIN-CLEVIS
(Superseded to 911-0833B)

$12.99

$

In Stock, only 2 left!

0

7

MTD 710-1054

SCREW-FLAT HEAD

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0411

NUT-HEX LOCK

$4.49

$

In Stock, Qty 20+

0

9

MTD 715-0249

PIN-ROLL SPRING
(Superseded to 915-0249)

$7.49

$

In Stock, Qty 19

0

10

MTD 719-0329

BLADE-FLAIL

$33.99

$

In Stock, only 2 left!

0

11

MTD 736-0119

WASHER-LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 742-0544

BLADE-CHIPPER
(Superseded to 942-0544B)

Note: For model 315B

$95.99

$

In Stock, only 2 left!

0

MTD 781-0490

BLADE-CHIPPER
(Superseded to 981-0490)

Note: For model 315D

$32.99

$

In Stock, Qty 8

0
