247.799630 (247-333C099) - Craftsman Shredder Vacuum (1997) (Sears) Drive Parts Diagram

Shredder Vacuum

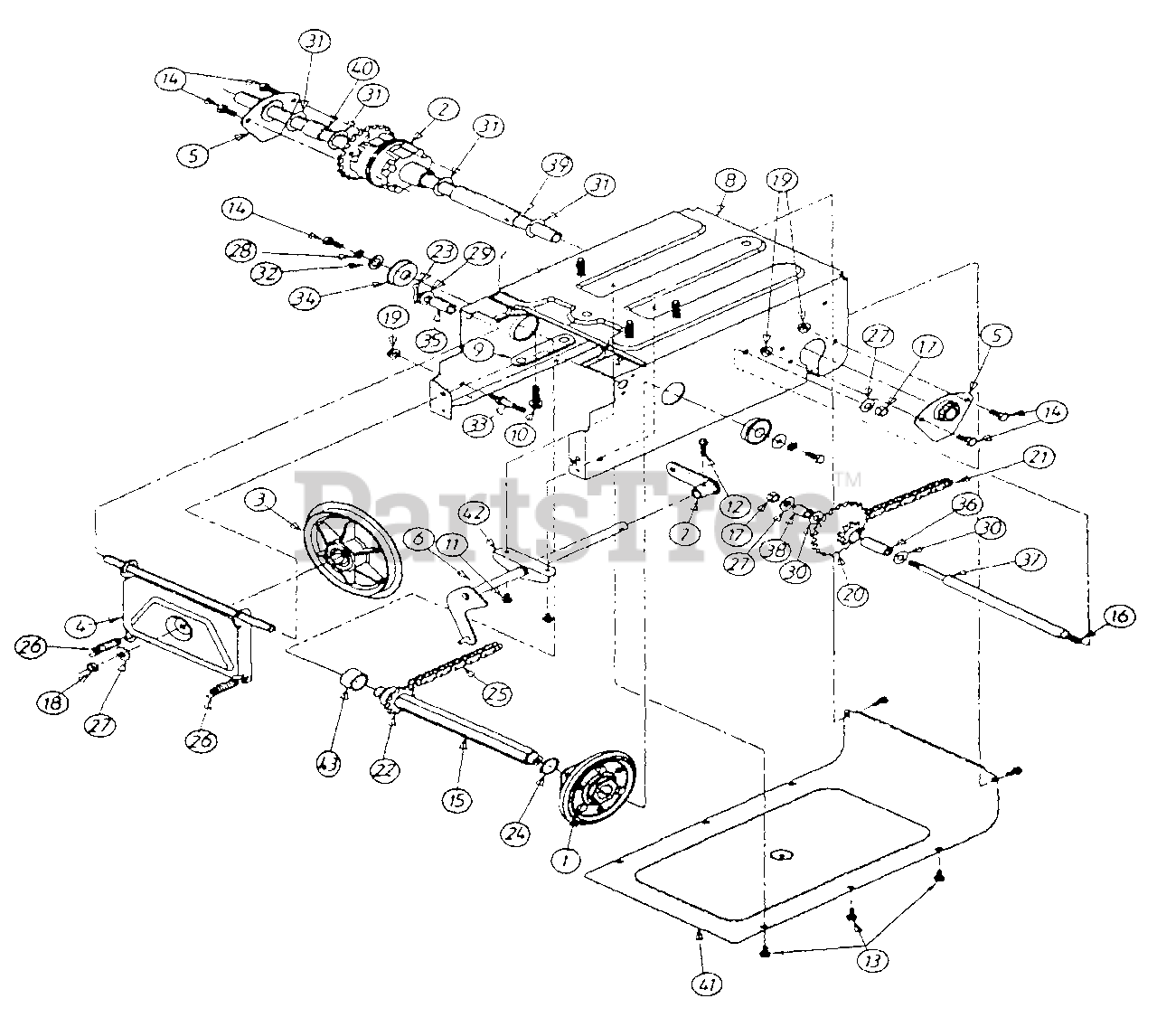

Drive Parts Diagram

  • Title

1

MTD 684-0042A

FRICTION WHEEL ASSY
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

2

MTD 618-0168

DIFFERENTIAL ASSY. COMP.

$

$

Not available

3

MTD 656-0012A

FR. WHEEL DISC ASSY
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

4

MTD 681-0055

SUPPORT BRKT. ASSY
(Superseded to 681-0055-0637)

Variations

MTD 681-0055-0637

BRACKET ASSY - SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 681-0058

AXLE BRKT. ASSY

$

$

Not available

6

MTD 681-0082

SHAFT ASSY-SHIFT

$

$

Not available

7

MTD 681-0072

ARM ASSY-SHIFT

Variations

MTD 681-0072-0637

No Longer Available ARM-SHIFT- - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 681-0081

FRAME ASSY

Variations

MTD 681-0081-0483

No Longer Available FRAME ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0081-0498

Frame Assembly - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0081-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0081-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 681-0081-0662

Frame Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0081-0716

No Longer Available FRAME ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

9

MTD 781-0638A

FRAME PLATE

Variations

MTD 781-0638A-0483

No Longer Available PLATE-REIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0638A-0637

PLATE-REINFORCEMEN - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 710-0502A

SCREW-HEX SELF-TAP.

$6.49

$

In Stock, Qty 7

0

11

MTD 710-0653

SCREW-HEX WASHER

$4.49

$

In Stock, Qty 16

0

12

MTD 710-0788

SCREW-HEX WASHER

$6.99

$

In Stock, only 4 left!

0

13

MTD 710-0896

SCREW-HEX

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-3008

SCREW-HEX

$3.99

$

In Stock, Qty 20+

0

15

MTD 711-1073

SHAFT-HEX

$

$

Not available

16

MTD 711-1028

SHAFT-JACK

$

$

Not available

17

MTD 712-0241

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-0711

NUT-HEX JAM

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-3004A

NUT-HEX FLANGE LOCK

$3.49

$

In Stock, Qty 20+

0

20

MTD 713-0330

SPROCKET & HUB

$

$

Not available

21

MTD 713-0374

CHAIN

$23.99

$

Usually ships in 3-6 days

0

22

MTD 713-0413

SPROCKET 10T

$11.99

$

Usually ships in 3-6 days

0

23

MTD 714-0474

COTTER PIN

$4.49

$

In Stock, Qty 16

0

24

MTD 716-0102

SNAP RING

$4.99

$

In Stock, Qty 20+

0

25

MTD 713-0284

CHAIN

$22.99

$

Usually ships in 3-6 days

0

26

MTD 732-0209

EXTENSION SPRING
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 12

0

27

MTD 736-0105

WASHER-BELL

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0119

WASHER-LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0160

WASHER-FLAT

$3.99

$

In Stock, only 2 left!

0

30

MTD 736-0267

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

31

MTD 736-0287

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

32

MTD 736-3089

WASHER-FLAT

$

$

Not available

33

MTD 738-0908

IDLER BOLT

$

$

Not available

34

MTD 741-0563

BALL BEARING
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

35

MTD 748-0382

SPACER

$

$

Not available

36

MTD 750-0351

SLEEVE

$

$

Not available

37

MTD 750-0978

SPACER

$

$

Not available

38

MTD 750-0979

SPACER

$

$

Not available

39

MTD 750-0980

SPACER

$

$

Not available

40

MTD 750-0981

SPACER

$

$

Not available

41

MTD 781-0612A

FRAME COVER

Variations

MTD 781-0612A-0483

No Longer Available COVER-FRAM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0612A-0498

Cover, Frame Bottom - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0612A-0650

No Longer Available COVER-FRAM - RED METALLIC (0650)

$

$

Not available

MTD 781-0612A-0662

Cover, Frame Bottom - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0612A-0716

No Longer Available COVER-FRAM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

42

MTD 784-5590

SHIFT BRACKET

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

43

MTD 750-0998

SPACER

$

$

Not available
