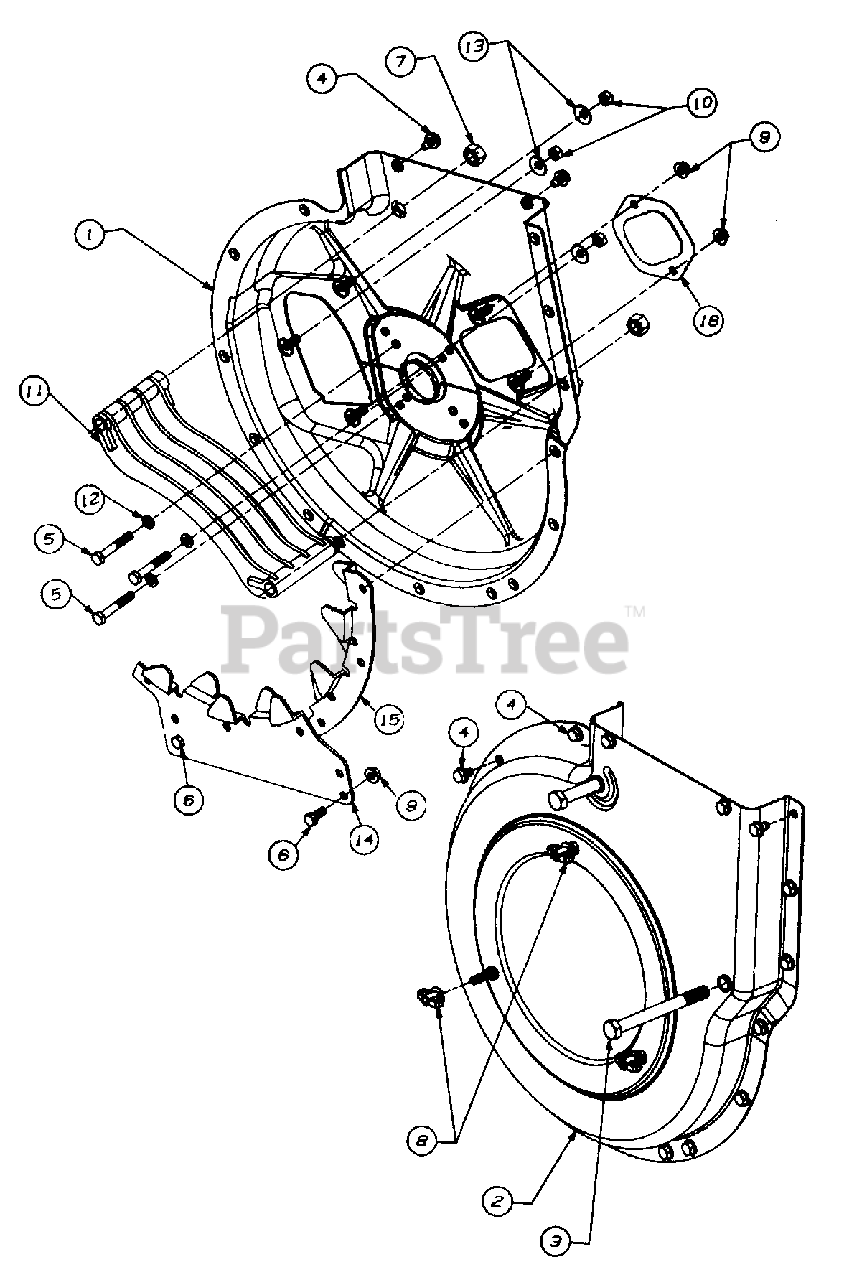

247.799640 (245-315D099) - Craftsman Shredder Vacuum (1995) (Sears) Housing Assembly Parts Diagram

Shredder Vacuum

Housing Assembly Parts Diagram

  • Title

1

MTD 681-0059

HOUSING ASSY - INNER

Variations

MTD 681-0059-0483

No Longer Available HSG-ASSY-I - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0059-0498

No Longer Available HSG-ASSY-I - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0059-0638

No Longer Available HSG-ASSY-I - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0059-0650

No Longer Available HSG-ASSY-I - RED METALLIC (0650)

$

$

Not available

MTD 681-0059-0662

Housing Ass'y, Inner Flail - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0059-0665

No Longer Available HSG-ASSY-I - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0059-0716

No Longer Available HSG-ASSY-I - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

MTD 681-0060

HOUSING ASSY - OUTER

Variations

MTD 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

3

MTD 710-0382

SCREW - HEX

$11.99

$

In Stock, only 2 left!

0

4

MTD 710-0607

SCREW - HEX SELF TAP

$6.49

$

In Stock, Qty 20+

0

5

MTD 710-0772

SCREW - HEX

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-3008

SCREW - HEX

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0384

NUT - HEX LOCK
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

8

MTD 712-0421

KNOB

$6.49

$

In Stock, Qty 20+

0

9

MTD 712-3004A

NUT - HEX LOCK

$3.49

$

In Stock, Qty 20+

0

10

MTD 712-3010

NUT - HEX (GR 5)

$4.49

$

In Stock, Qty 20+

0

11

MTD 719-0326

SCREEN

$94.99

$

In Stock, only 2 left!

0

12

MTD 736-0119

WASHER - LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0242

WASHER - BELL

$3.99

$

In Stock, Qty 20+

0

14

MTD 781-0598

BLADE - FLAIL HOUSING
(Superseded to 781-0598-0637)

Variations

MTD 781-0598-0637

Shredder Blade, Lower - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

15

MTD 781-0599

BLADE - FLAIL HOUSING
(Superseded to 781-0599-0637)

Variations

MTD 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$30.99

$

In Stock, only 1 left!

0

$30.99

$

In Stock, only 1 left!

0

16

MTD 781-0627

COVER - CHIPPER

Variations

MTD 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0
