247.799640 (246-315D099) - Craftsman Shredder Vacuum (1996) (Sears) Chute Assembly Parts Diagram

Shredder Vacuum

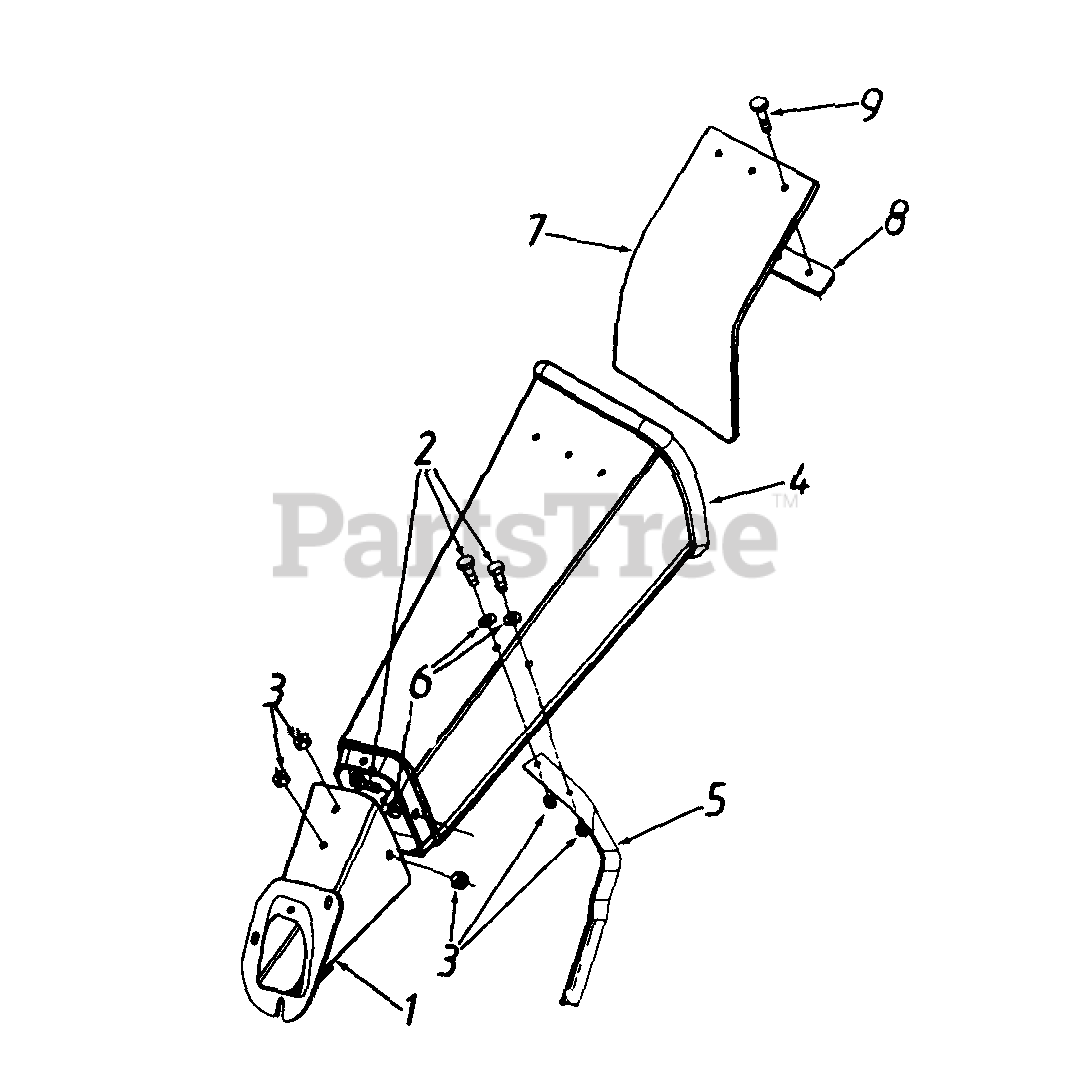

Chute Assembly Parts Diagram

  • Title

1

MTD 681-0068

CHUTE ASSEMBLY
(Superseded to 681-0068A)

Variations

MTD 681-0068-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0662

ASM-CHUTE - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0689

ASM-CHUTE - POLO GREEN (0689)

$165.99

$

Usually ships in 3-6 days

0

MTD 681-0068-0691

ASM-CHUTE - BLACK JACK (0691)

$165.99

$

Usually ships in 3-6 days

0

$165.99

$

Usually ships in 3-6 days

0

2

MTD 710-0258

SCREW HEX
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-3027

NUT-LOCK
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

4

MTD 731-1609

CHUTE -CH(PPER UPPER
(Superseded to 731-1574A)

Note: For model 315B

$188.99

$

Usually ships in 3-6 days

0

MTD 731-1574

CHUTE-CHIPPER UPPER
(Superseded to 731-1574A)

Note: For model 315D

$188.99

$

Usually ships in 3-6 days

0

5

MTD 736-0173

FL-WASH..28" I.D. x .73" O.D.

$3.99

$

In Stock, Qty 10

0

6

MTD 781-0625

BRACKET SUPPORT

Variations

MTD 781-0625-0483

No Longer Available BRKT-SUPPO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0625-0498

BRACKET-SUPPORT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0625-0637

BRACKET-SUPPORT-CHIPP - POWDER BLACK (0637)

$

$

Not available

MTD 781-0625-0638

No Longer Available BRKT-SUPPO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0625-0662

BRACKET-SUPPORT-CHIPP - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0625-0716

BRACKET-SUPPORT-CHIPP - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

MTD 735-0249

FLAP
(Superseded to 735-0249A)

$23.99

$

Usually ships in 3-6 days

0

8

MTD 781-0633

STRIP-FLAP

$9.99

$

Usually ships in 3-6 days

0

9

MTD 728-0175

RIVET

$4.49

$

In Stock, Qty 20+

0

MTD 731-1617

TAMPER PLUG

Note: (Not Shown - Optional)

$130.99

$

Usually ships in 3-6 days

0
