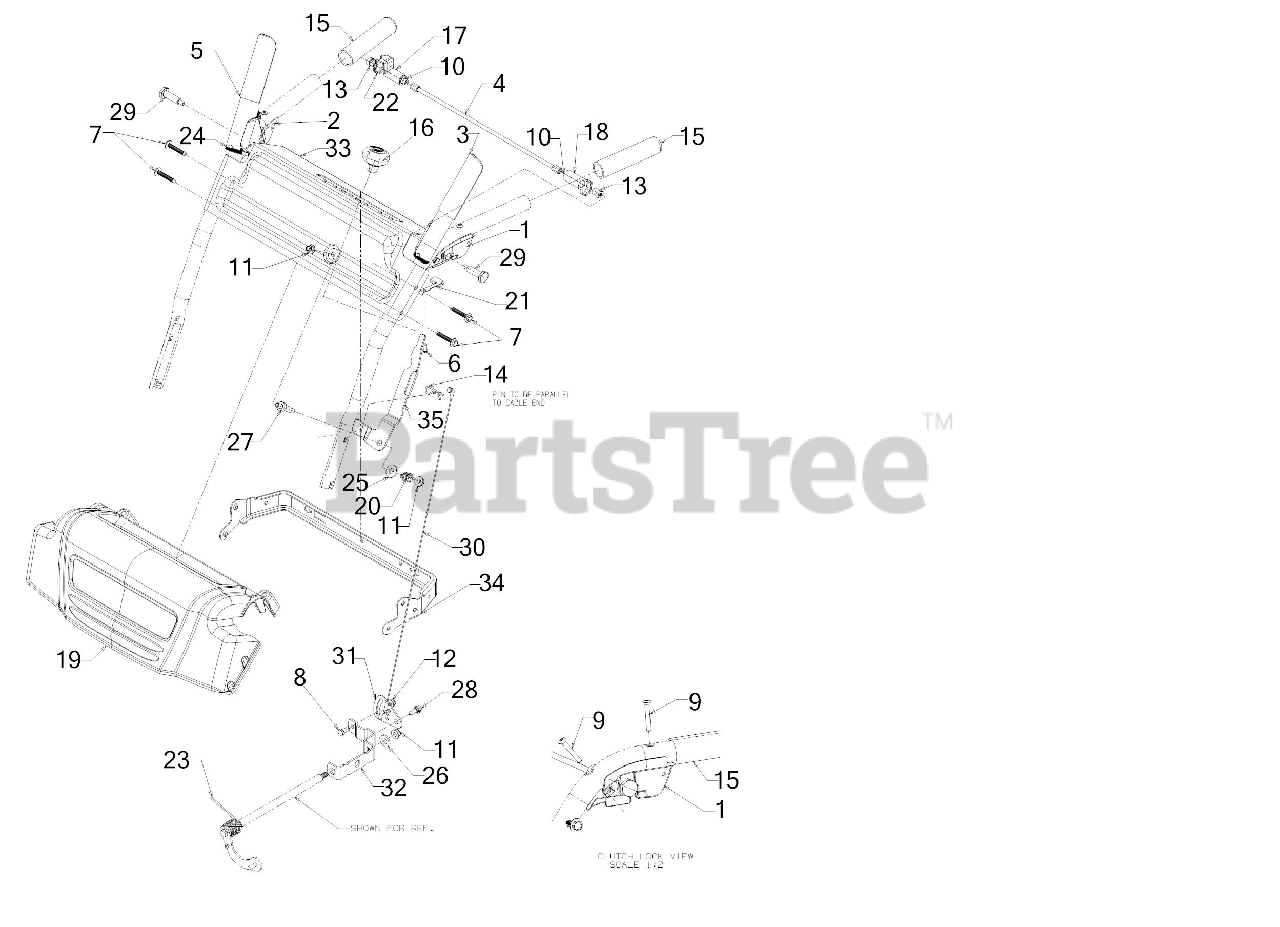

247.881733 (31AS6BEE799) - Craftsman Snow Thrower (2016) Panel Parts Diagram

Snow Thrower

Panel Parts Diagram

  • Title

1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$14.99

$

In Stock, only 1 left!

0

2

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$14.99

$

In Stock, only 3 left!

0

3

MTD 684-04111C

HANDLE ASSEMBLY (LH)
(Superseded to 684-04111D)

$20.99

$

In Stock, only 1 left!

0

4

MTD 684-04250

PIVOT ROD

$11.99

$

In Stock, Qty 8

0

5

MTD 684-05225

ENGAGEMENT HANDLE ASSEMBLY (RH) (RED)
(Superseded to 684-04112D)

$19.99

$

In Stock, only 1 left!

0

6

MTD 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, Qty 11

0

7

MTD 710-04586

SCREW 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

8

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1233

SCREW #10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

10

MTD 710-3069

SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 13

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04081A

HEX NUT W/PATCH

$6.99

$

In Stock, only 1 left!

0

14

MTD 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

15

MTD 720-0274

GRIP

$10.99

$

In Stock, Qty 6

0

16

MTD 720-04039

SHIFT KNOB

$9.99

$

In Stock, only 4 left!

0

17

MTD 731-04894D

LOCK PLATE

$4.99

$

In Stock, only 4 left!

0

18

MTD 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

19

MTD 731-06471

PANEL HANDLE COVER

$38.99

$

Usually ships in 3-6 days

0

20

MTD 732-0193

COMPRESSION SPRING

$4.49

$

In Stock, Qty 8

0

21

MTD 732-04219C

CLUTCH SPRING

$3.99

$

In Stock, Qty 20+

0

22

MTD 732-04238B

TORSION SPRING

$4.99

$

In Stock, Qty 12

0

23

MTD 732-04311A

TORSION SPRING

$9.99

$

In Stock, only 1 left!

0

24

MTD 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

25

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

26

MTD 936-3015

FLAT WASHER

$3.99

$

In Stock, only 3 left!

0

27

MTD 738-04118

SHOULDER BOLT

$5.49

$

Usually ships in 3-6 days

0

28

MTD 738-04184A

SHOULDER SCREW

$6.49

$

In Stock, Qty 20+

0

29

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.49

$

In Stock, only 1 left!

0

30

MTD 946-04397A

SPEED SELECTOR CABLE (STEEL)

$19.99

$

In Stock, Qty 15

0

31

MTD 790-00217A-0637

PIVOT BRACKET
(Superseded to 790P01117)

$49.99

$

In Stock, only 1 left!

0

32

MTD 790-00218A-0637

SHIFT SPEED BRACKET
(Superseded to 790-00218A)

$44.99

$

In Stock, only 1 left!

0

33

MTD 790-00219A-0637

HANDLE PANEL-STEEL W/O CUTOUT

$67.99

$

Usually ships in 3-6 days

0

34

MTD 790-00248D-0637

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

$22.99

$

In Stock, only 2 left!

0

35

MTD 790-00313A-0637

SPEED SHIFT LEVER

$45.99

$

Usually ships in 3-6 days

0
