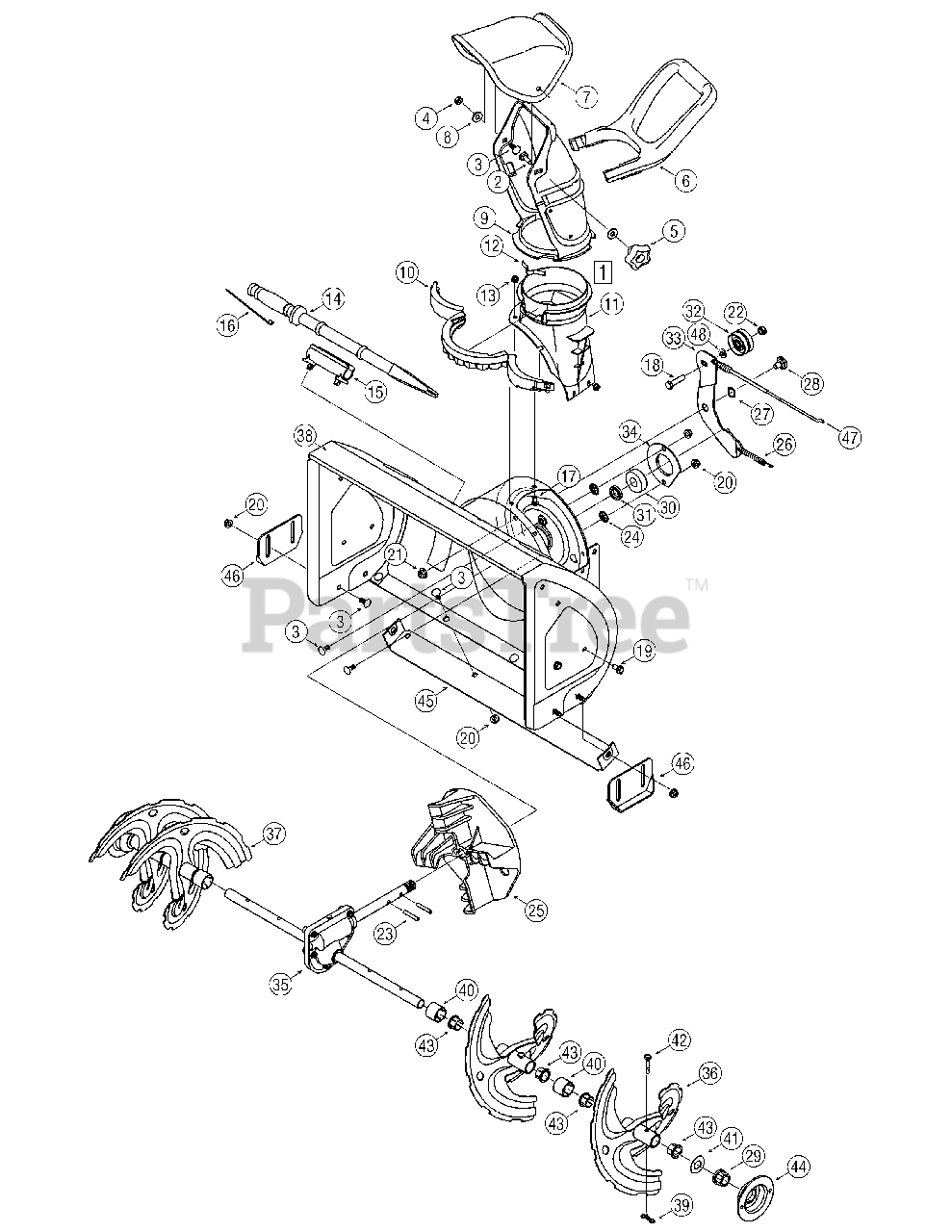

247.882550 (31A-3BDE799) - Craftsman Snow Thrower (2005-2) (Sears) General Assembly Parts Diagram

Snow Thrower

General Assembly Parts Diagram

  • Title

1

MTD 684-04037

Chute Assembly
(Superseded to 984-04037)

$76.99

$

Usually ships in 3-6 days

0

2

MTD 710-04071

Carriage Bolt 5/16-18 x 1.0"

$4.49

$

In Stock, Qty 16

0

3

MTD 710-0451

Carriage Bolt 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-3068

Flange Lock Nut, 5/16-18
(Superseded to 912-3009)

$

$

Not available

5

MTD 720-0284

Nut Knob 5/16-18

$6.49

$

In Stock, Qty 20+

0

6

MTD 731-04388A

Chute Handle

$24.99

$

Usually ships in 3-6 days

0

7

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

8

MTD 736-0159

Flat Washer .349 x .879 x .063

$3.99

$

In Stock, Qty 20+

0

9

MTD 731-04127

Lower Chute
(Superseded to 931-04127)

$31.99

$

Usually ships in 3-6 days

0

10

MTD 731-04353

Chute Ring
(Superseded to 931-04353)

$17.99

$

In Stock, only 2 left!

0

11

MTD 731-2636A

Chute Adapter 5" Dia.
(Superseded to 931-2636A)

$19.99

$

In Stock, only 1 left!

0

12

MTD 732-04111

Chute Adjustment Spring
(Superseded to 932-04111)

$4.49

$

In Stock, only 2 left!

0

13

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 731-2643

Clean-out Tool
(Superseded to 931-2643)

$18.99

$

In Stock, Qty 8

0

15

MTD 731-2635

Clean-out Tool Mount
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

16

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

17

MTD 710-0134

Carriage Screw 1/4-20 x 0.62"

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0520

Hex Bolt 3/8-16 x 1.50"

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0604A

AB Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0266

Hex Lock Nut 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

23

MTD 715-04020

Spiral Pin

$11.99

$

In Stock, only 2 left!

0

24

MTD 726-04012

Push On Nut

$6.99

$

In Stock, Qty 12

0

25

MTD 731-04218B

Impeller

$76.99

$

In Stock, only 2 left!

0

26

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$6.99

$

In Stock, Qty 20+

0

27

MTD 736-0174

Wave Washer

$6.49

$

In Stock, only 2 left!

0

28

MTD 738-0281

Shoulder Screw 3/8-16

$9.99

$

In Stock, only 1 left!

0

29

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

30

MTD 741-0309

Ball Bearing
(Superseded to 941-0309)

$69.99

$

In Stock, Qty 7

0

31

MTD 750-04191

Spacer
(Superseded to 950-04191)

$5.99

$

Usually ships in 3-6 days

0

32

MTD 756-04035

Flat Idler

$

$

Not available

33

MTD 784-0434

Auger Idler Bracket
(Superseded to 784-0434C-0637)

Variations

MTD 784-0434-0637

Auger with Brake Bracket - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

34

MTD 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

35

MTD 618-04293

Auger Gearbox Assembly
(Superseded to 918-04294A)

$

$

Not available

36

MTD 684-04113

Auger Assembly - LH
(Superseded to 684-04113A)

Variations

MTD 684-04113-0637

AUGER ASM-LH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04113-0638

AUGER ASM-LH - MTD/TROY-BILT RED (0638)

$75.99

$

Usually ships in 3-6 days

0

MTD 684-04113-0731

AUGER ASM-LH - YELLOW JACKET (0731)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

37

MTD 684-04114

Auger Assembly - RH
(Superseded to 684-04114A)

Variations

MTD 684-04114-0637

AUGER ASM-RH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04114-0638

AUGER ASM-RH - MTD/TROY-BILT RED (0638)

$75.99

$

Usually ships in 3-6 days

0

MTD 684-04114-0731

AUGER ASM-RH - YELLOW JACKET (0731)

$75.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

38

MTD 684-04165

Auger Housing, 24"
(Superseded to 684-04165A)

Variations

MTD 684-04165-0638

HOUSING ASM-AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04165-0709

HOUSING ASSY AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-04165-0729

HOUSING ASSY AUGER - STORM GRAY (0729)

$

$

Not available

$

$

39

MTD 714-04040

Bow Tie Cotter Pin 72

$1.49

$

In Stock, Qty 20+

0

40

MTD 731-04870

Spacer, 1.25 x.75 x 1.00

$4.49

$

In Stock, Qty 8

0

41

MTD 736-0351

Flat Washer

$3.99

$

In Stock, Qty 20+

0

42

MTD 738-04124A

Shear Pin,.25 x 1.50

$1.99

$

In Stock, Qty 20+

0

43

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

44

MTD 790-00087A

Hex Bearing Housing

Variations

MTD 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

$21.99

$

In Stock, only 2 left!

0

MTD 790-00087A-0638

Bearing Housing, 1" - MTD/TROY-BILT RED

$21.99

$

In Stock, only 2 left!

0

$19.99

$

Usually ships in 3-6 days

0

45

MTD 790-00120

Shave Plate 2.25 x 23.66 LG

Variations

MTD 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-0638

Shave Plate, 24" Mtd/Troy-Bilt Red - MTD/TROY-BILT RED

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-0606

Shave Plate, 24" Orange - MAJESTIC ORANGE

$33.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-4021

Shave Plate, 24" Yellow - CUB YELLOW 2

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-0691

Shave Plate, 24" Black - BLACK JACK

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-4062

Shave Plate, 24" - COOL GRAY (4062)

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-0665

Shave Plate, 24" - YARDMAN GREEN

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-4043

Shave Plate, 24" - CRAFTSMAN METALLIC GRAY

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-0662

Shave Plate, 24" Gray - OYSTER GRAY

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-0689

Shave Plate, 24" - POLO GREEN

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-0709

Shave Plate, 24" - MASTERCRAFT GREEN

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-4041

Shave Plate, 24" - PURE ORANGE

$33.99

$

In Stock, Qty 20+

0

MTD 790-00120-0729

PLATE-SHAVE 24" - STORM GRAY

$

$

Not available

$27.99

$

Usually ships in 3-6 days

0

46

MTD 784-5580

Skid Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$22.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$22.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$22.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$22.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$22.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$22.99

$

In Stock, Qty 20+

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$22.99

$

In Stock, Qty 20+

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$22.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$20.99

$

Usually ships in 3-6 days

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$22.99

$

In Stock, Qty 20+

0

$22.99

$

In Stock, Qty 20+

0

47

MTD 746-04246

Auger Cable

$

$

Not available

48

MTD 736-0258

Flat Washer

$4.49

$

In Stock, only 4 left!

0
