247.882901 (312-174-099) - Craftsman Snow Thrower (1991) (Sears)

Snow Thrower

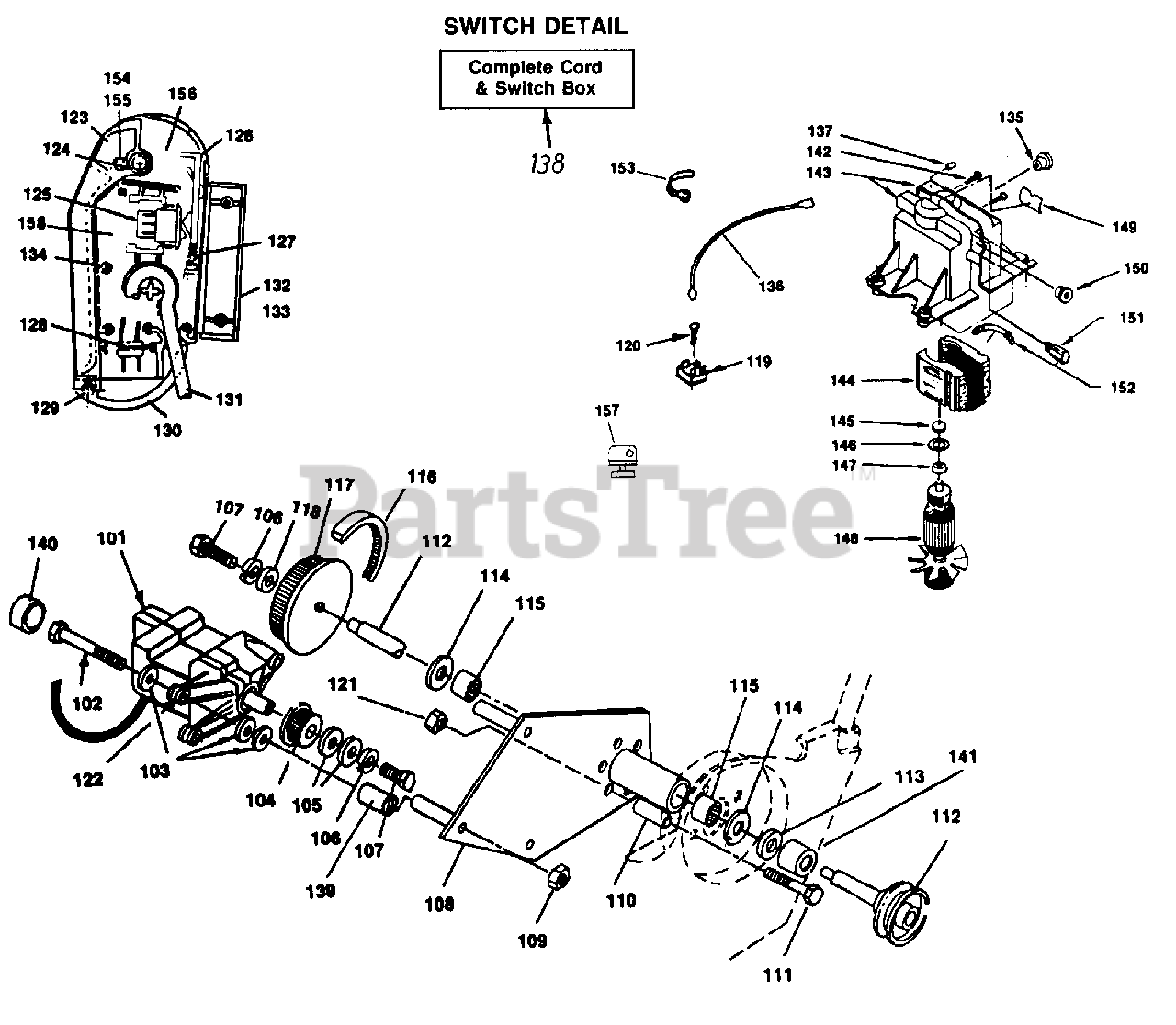

247.882901 (312-174-099) - Craftsman Snow Thrower (1991) (Sears) > Parts Diagrams (2) > Motor, Drive & Switch Detail

  • Title
831-60051

101

Motor and Switch Box Ass'y.

Part# 831-60051

Note: (Includes Nos. 104, 105, 106, 107, 122)

OEM Warranty Repair Part for MTD

Currently unavailable

710-1123

102

Hex Bolt 1/4-20 x 3-1/4" Grade 5 Special

Part# 710-1123

OEM Warranty Repair Part for MTD

Not available

736-3020

103

Washer 1/4"

Part# 736-3020 (Superseded to 936-3020)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.76

756-0548

104

Pulley-Motor

Part# 756-0548

Note: (22T)

OEM Warranty Repair Part for MTD

Currently unavailable

736-0483

105

Washer

Part# 736-0483 (Superseded to 936-0176)

Note: (Special)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

106

L-Wash. 1/4n I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-1115

107

Hex Bolt 1/4-20 x 3/4"" Grade 5 Special

Part# 710-1115

OEM Warranty Repair Part for MTD

Not available

684-0005

108

Plate Assembly

Part# 684-0005

Note: (Includes Bearings #115)

OEM Warranty Repair Part for MTD

Currently unavailable

712-0324

109

Lock Nut 1/420 Thd.

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

750-0589

110

Spacer

Part# 750-0589 (Superseded to 950-0589)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

710-0442

111

Hex Bolt 5/16-18 x 1-1/2"

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

112

UNKNOWN

Part#

Not available

736-0162

113

Washer

Part# 736-0162

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0489

114

Washer-Thrust

Part# 736-0489

OEM Warranty Repair Part for MTD

Currently unavailable

741-0586

115

Bearing-Needle

Part# 741-0586

OEM Warranty Repair Part for MTD

Not available

754-0426

116

Belt-Cog

Part# 754-0426 (Superseded to 954-0426)

OEM Warranty Repair Part for MTD

Not available

756-0598

117

Pulley-Shaft

Part# 756-0598

Note: (71T)

OEM Warranty Repair Part for MTD

Not available

736-0488

118

Washer-Special

Part# 736-0488 (Superseded to 736-0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.97

725-0631

119

Rectifier

Part# 725-0631

OEM Warranty Repair Part for MTD

Currently unavailable

710-0430

120

Tap Scr. #10-24 x 3/4"

Part# 710-0430

OEM Warranty Repair Part for MTD

Currently unavailable

712-0429

121

Lock Nut 5/16-24 x 3/4"

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

721-0289

122

Insulator-Motor Housing

Part# 721-0289

OEM Warranty Repair Part for MTD

Currently unavailable

731-1210

123

Handle Dash Switch Actuator

Part# 731-1210

OEM Warranty Repair Part for MTD

Not available

732-0679

124

Spring-Switch Handle

Part# 732-0679

OEM Warranty Repair Part for MTD

Not available

725-1565

125

Switch

Part# 725-1565 (Superseded to 925-1565)

OEM Warranty Repair Part for MTD

Not available

731-1198

126

Latch

Part# 731-1198

OEM Warranty Repair Part for MTD

Not available

732-0681

127

Spring-Latch

Part# 732-0681

OEM Warranty Repair Part for MTD

Not available

729-0304

128

Plug-2 Prong

Part# 729-0304 (Superseded to 929-0304)

Note: (Part of Cord Ass'y. #131)

OEM Warranty Repair Part for MTD

Not available

732-0680

129

Spring-Cord Retainer

Part# 732-0680 (Superseded to 932-0680)

OEM Warranty Repair Part for MTD

Not available

731-1211

130

Cord Retainer

Part# 731-1211

OEM Warranty Repair Part for MTD

Not available

729-0011

131

Cord Assembly

Part# 729-0011

Note: (Includes Plug #128 and all Terminals)

OEM Warranty Repair Part for MTD

Currently unavailable

725-1628

132

Housing-Upper Half

Part# 725-1628

OEM Warranty Repair Part for MTD

Not available

731-1209

133

Housing-Lower Half

Part# 731-1209

OEM Warranty Repair Part for MTD

Not available

710-1147

134

Screw #6 x 1/2" Drive

Part# 710-1147

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Not available

741-0588

135

Bushing-Split

Part# 741-0588

OEM Warranty Repair Part for MTD

Currently unavailable

629-0015

136

Jumper Wire Assembly (Blue)

Part# 629-0015

OEM Warranty Repair Part for MTD

Currently unavailable

735-0242

137

Pad-Pressure

Part# 735-0242

OEM Warranty Repair Part for MTD

Currently unavailable

625-0002

138

Cord & Switch Box Ass'y. Complete

Part# 625-0002

OEM Warranty Repair Part for MTD

Currently unavailable

750-0824

139

Spacer Insulator

Part# 750-0824

OEM Warranty Repair Part for MTD

Currently unavailable

720-0264

140

End Cap Insulator

Part# 720-0264

OEM Warranty Repair Part for MTD

Not available

748-0201

141

Spacer

Part# 748-0201 (Superseded to 948-0201)

OEM Warranty Repair Part for MTD

Not available

710-1146

142

Screw-Motor Housing

Part# 710-1146

Note: (Special)

OEM Warranty Repair Part for MTD

Not available

724-0197

143

Kit-Motor Housing (Both Halves)

Part# 724-0197

OEM Warranty Repair Part for MTD

Currently unavailable

624-0020

144

Field Assembly

Part# 624-0020

OEM Warranty Repair Part for MTD

Currently unavailable

721-0265

145

Oil Wick

Part# 721-0265

OEM Warranty Repair Part for MTD

Not available

721-0266

146

"O"-Ring

Part# 721-0266

OEM Warranty Repair Part for MTD

Not available

741-0572

147

Bearing-Spherical

Part# 741-0572

OEM Warranty Repair Part for MTD

Currently unavailable

624-0019

148

Armature & Pulley Ass'y.

Part# 624-0019

Note: (Includes Nos. 104, 105, 106, 107)

OEM Warranty Repair Part for MTD

Currently unavailable

724-0159

149

Spring-Field

Part# 724-0159

OEM Warranty Repair Part for MTD

Not available

731-1207

150

Strain Relief

Part# 731-1207

OEM Warranty Repair Part for MTD

Not available

818-60004

151

Brush Assembly

Part# 818-60004

OEM Warranty Repair Part for MTD

Currently unavailable

726-0302

152

Wire Clip

Part# 726-0302

OEM Warranty Repair Part for MTD

Not available

726-0303

153

Plastic Tie

Part# 726-0303

OEM Warranty Repair Part for MTD

Not available

715-0214

154

Pin-Handle Lock

Part# 715-0214

OEM Warranty Repair Part for MTD

Not available

732-0670

155

Spring-Handle Lock Pin

Part# 732-0670

OEM Warranty Repair Part for MTD

Not available

784-0296

156

Plate-Key

Part# 784-0296

OEM Warranty Repair Part for MTD

Not available

725-1627

157

Key-Switch Box

Part# 725-1627

OEM Warranty Repair Part for MTD

Not available

158

UNKNOWN

Part#

Not available
