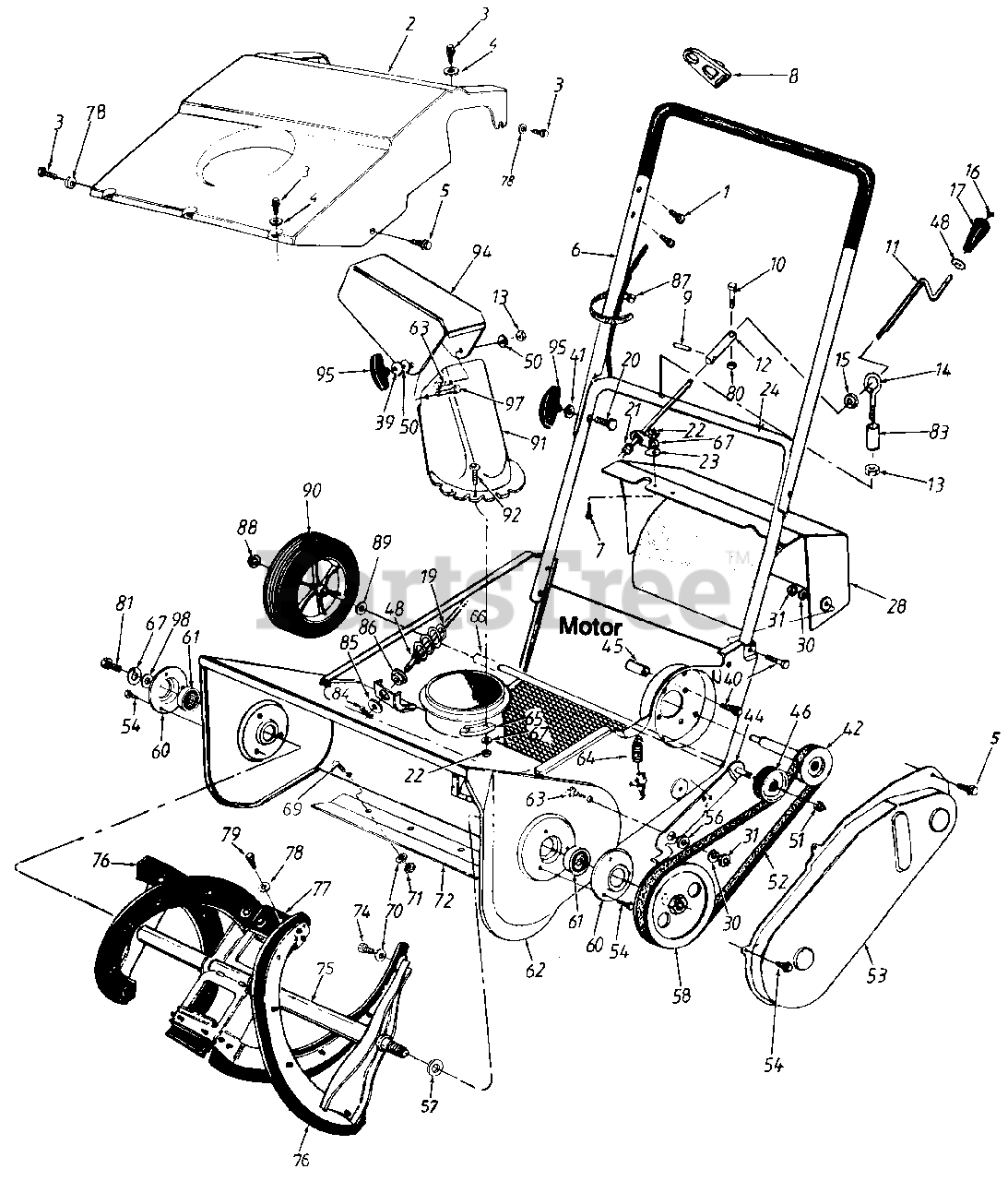

247.882901 (312-174-099) - Craftsman Snow Thrower (1991) (Sears)

Snow Thrower

247.882901 (312-174-099) - Craftsman Snow Thrower (1991) (Sears) > Parts Diagrams (2) > Parts03

  • Title
710-1150

1

Self-Tap Scr. #7 x 1" Lg.

Part# 710-1150

OEM Warranty Repair Part for MTD

Not available

731-1050

2

Shroud-21" Snow Thrower

Part# 731-1050

OEM Warranty Repair Part for MTD

Not available

710-0429

3

Tap Scr. #10 x 3/8"

Part# 710-0429 (Superseded to 910-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.57

736-0370

4

Washer-Spring

Part# 736-0370

OEM Warranty Repair Part for MTD

Not available

710-0892

5

Tap Scr. 1/4 x 5/8"

Part# 710-0892 (Superseded to 910-0892)

OEM Warranty Repair Part for MTD

Not available

749-0699

6

Upper Handle (Vinyl)

Part# 749-0699

OEM Warranty Repair Part for MTD

Currently unavailable

710-0289

7

Hex Bolt 1/4-20 x 1/2"

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.53

725-1590

8

Cord Minder

Part# 725-1590

OEM Warranty Repair Part for MTD

Not available

715-0138

9

Roll Pin 1/8 x 5/8"

Part# 715-0138 (Superseded to 915-0138)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.34

710-0547

10

Mach. Scr. #6-32 x 3/4"

Part# 710-0547

OEM Warranty Repair Part for MTD

Currently unavailable

747-0809

11

Chute Crank-Upper

Part# 747-0809

OEM Warranty Repair Part for MTD

Not available

723-0408

12

Sleeve

Part# 723-0408

OEM Warranty Repair Part for MTD

Currently unavailable

712-0429

13

Hex L-Nut 5/16-18 Thd.

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

747-0416

14

Eyebolt

Part# 747-0416

OEM Warranty Repair Part for MTD

Not available

741-0475

15

Grommet

Part# 741-0475 (Superseded to 941-0475)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.96

726-0100

16

Retainer-Push Cap 3/8"

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for MTD

Not available

720-0171

17

Knob-Chute Rod

Part# 720-0171 (Superseded to 920-0171)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.03

747-0720

19

Chute Crank-Lower

Part# 747-0720

OEM Warranty Repair Part for MTD

Currently unavailable

710-0405

20

Saddle Bolt 5/16-18 x 1-3/4"

Part# 710-0405 (Superseded to 710-1174)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

735-0218

21

Grommet

Part# 735-0218 (Superseded to 941-0475)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.96

712-0287

22

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

784-5178

23

Chute Crank Brkt.

Part# 784-5178 (Superseded to 784-5178A)

OEM Warranty Repair Part for MTD

Not available

749-0863

24

Lower Handle

Part# 749-0863

OEM Warranty Repair Part for MTD

Not available

831-60042

28

Dash Panel

Part# 831-60042

Note: (Electric)

OEM Warranty Repair Part for MTD

Currently unavailable

736-0119

30

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0267

31

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

736-0242

39

Bell-Wash. 345n I.D. x .88"

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0442

40

Hex Bolt 5/16-18 x 1-1/2"

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

736-10057

41

Saddle Washer

Part# 736-10057

OEM Warranty Repair Part for MTD

Currently unavailable

611-0006

42

Pulley and Shaft Assembly

Part# 611-0006

OEM Warranty Repair Part for MTD

Not available

784-5180A

44

Idler Arm Assembly

Part# 784-5180A (Superseded to 753-05156)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.69

750-0589

45

Spacer

Part# 750-0589 (Superseded to 950-0589)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

756-0313

46

Idler-Flat 2-1/8" O.D.

Part# 756-0313

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.43

736-0140

48

Washer 3/8" I.D. x 5/8" O.D.

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for MTD

Not available

736-0231

50

Washer 5/16" I.D. x 1-1/4" O.D.

Part# 736-0231 (Superseded to 936-0231)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.23

712-0296

51

Hex L-Nut 3/8-24 Thd.

Part# 712-0296 (Superseded to 912-0296)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.71

754-0101

52

"V"-Belt

Part# 754-0101 (Superseded to 954-0101A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $24.59

784-5178

53

Belt Cover

Part# 784-5178 (Superseded to 784-5178A)

OEM Warranty Repair Part for MTD

Not available

710-0352

54

Tap Scr. 1/4 x 3/8"

Part# 710-0352

Note: (Special Tap)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.24

748-0234

56

Spacer-Shoulder

Part# 748-0234

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

736-0326

57

Fl-Wash. .51n I.D.

Part# 736-0326 (Superseded to 936-0326)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

756-0475

58

"V"-Pulley 1/2-20 L.H. Thd.

Part# 756-0475

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $56.29

784-5174

60

Cup Bearing

Part# 784-5174

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

CUP-BEARING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

741-0124

61

Ball Bearing

Part# 741-0124 (Superseded to 941-0600)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $18.53

684-0003

62

Housing Assembly

Part# 684-0003

OEM Warranty Repair Part for MTD

Not available

710-0323

63

Truss Mach. Scr. 5/16-18 x 3/4n

Part# 710-0323

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.23

732-0671

64

Spring-Idler

Part# 732-0671

OEM Warranty Repair Part for MTD

Not available

731-0851

65

Keeper-Chute Flange

Part# 731-0851 (Superseded to 731-0851A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

711-0904

66

Axle-Wheel

Part# 711-0904

OEM Warranty Repair Part for MTD

Not available

736-0329

67

L-Wash. 1/4n I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0134

69

Carriage Bolt 1/4-20 x .62n

Part# 710-0134

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

736-3090

70

Washer 1/4" I.D.

Part# 736-3090

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.65

712-0298

71

Hex Jam Nut 1/4-20 Thd.

Part# 712-0298 (Superseded to 912-0298)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.32

731-1033

72

Scraper Bar

Part# 731-1033

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $34.76

710-0896

74

Tap Scr. 1/4 x 5/8n

Part# 710-0896

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

784-5485

75

Auger Assembly-21 n

Part# 784-5485

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $141.11

Variations

OLD CUB YELLOW (0498)

Auger Assembly, 21" Complete

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $141.11

OYSTER GRAY (0662)

Auger Assembly, 21" Complete

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $141.11

SPRING GREEN (0688)

Auger Assembly, 21" Complete

Part# SPRING GREEN (0688)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $141.11

721-0286

76

Rubber Spiral

Part# 721-0286 (Superseded to 931-0780A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.50

721-0287

77

Rubber Paddle

Part# 721-0287 (Superseded to 931-0782A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.87

736-0400

78

Washer 3/16" I.D. x 7/8" O.D.

Part# 736-0400 (Superseded to 936-0400)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.66

710-1003

79

Tap Scr. #10 x 5/8"

Part# 710-1003 (Superseded to 710-04669)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.39

712-0135

80

Hex L-Nut #6-32 Thd.

Part# 712-0135

OEM Warranty Repair Part for MTD

Currently unavailable

710-0875

81

Tap Scr. 1/4 x 5/8"

Part# 710-0875

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.88

741-0585

83

Spacer-Eyebolt

Part# 741-0585

OEM Warranty Repair Part for MTD

Not available

714-0507

84

Cotter Pin 3/32" x 3/4"

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0133

85

Washer 3/8" I.D. x 1-1/4" O.D.

Part# 736-0133 (Superseded to 936-0133)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.57

741-0403

86

Hex Bushing

Part# 741-0403

OEM Warranty Repair Part for MTD

Not available

726-0303

87

Plastic Tie

Part# 726-0303

OEM Warranty Repair Part for MTD

Not available

726-0221

88

Retainer-Push Cap 1/2"

Part# 726-0221

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.27

736-3068

89

Washer 1/2"

Part# 736-3068

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.74

734-1529

90

Wheel-7"

Part# 734-1529

OEM Warranty Repair Part for MTD

Not available

731-1126

91

Lower Chute

Part# 731-1126

OEM Warranty Repair Part for MTD

Not available

710-0166

92

Screw 1/4-20 x ln Truss Mach.

Part# 710-0166 (Superseded to 710-0166A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.02

731-1125

94

Upper Chute

Part# 731-1125

OEM Warranty Repair Part for MTD

Not available

09966

95

Hand Knob

Part# 09966 (Superseded to 720-04072A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

710-0276

97

Carriage Bolt 5/16-18 x 1"

Part# 710-0276

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0176

98

Fl-Wash. .25" I.D.

Part# 736-0176 (Superseded to 936-0176)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

831-60051

Motor and Switch Box Ass'y.

Part# 831-60051

Note: (Includes Nos. 104, 105, 106, 107, 122)

OEM Warranty Repair Part for MTD

Currently unavailable

710-1123

Hex Bolt 1/4-20 x 3-1/4" Grade 5 Special

Part# 710-1123

OEM Warranty Repair Part for MTD

Not available

736-3020

Washer 1/4"

Part# 736-3020 (Superseded to 936-3020)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.76

756-0548

Pulley-Motor

Part# 756-0548

Note: (22T)

OEM Warranty Repair Part for MTD

Currently unavailable

736-0483

Washer

Part# 736-0483 (Superseded to 936-0176)

Note: (Special)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

L-Wash. 1/4n I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-1115

Hex Bolt 1/4-20 x 3/4"" Grade 5 Special

Part# 710-1115

OEM Warranty Repair Part for MTD

Not available

684-0005

Plate Assembly

Part# 684-0005

Note: (Includes Bearings #115)

OEM Warranty Repair Part for MTD

Currently unavailable

712-0324

Lock Nut 1/420 Thd.

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

750-0589

Spacer

Part# 750-0589 (Superseded to 950-0589)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

710-0442

Hex Bolt 5/16-18 x 1-1/2"

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

736-0162

Washer

Part# 736-0162

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0489

Washer-Thrust

Part# 736-0489

OEM Warranty Repair Part for MTD

Currently unavailable

741-0586

Bearing-Needle

Part# 741-0586

OEM Warranty Repair Part for MTD

Not available

754-0426

Belt-Cog

Part# 754-0426 (Superseded to 954-0426)

OEM Warranty Repair Part for MTD

Not available

756-0598

Pulley-Shaft

Part# 756-0598

Note: (71T)

OEM Warranty Repair Part for MTD

Not available

736-0488

Washer-Special

Part# 736-0488 (Superseded to 736-0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.97

725-0631

Rectifier

Part# 725-0631

OEM Warranty Repair Part for MTD

Currently unavailable

710-0430

Tap Scr. #10-24 x 3/4"

Part# 710-0430

OEM Warranty Repair Part for MTD

Currently unavailable

712-0429

Lock Nut 5/16-24 x 3/4"

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

721-0289

Insulator-Motor Housing

Part# 721-0289

OEM Warranty Repair Part for MTD

Currently unavailable

731-1210

Handle Dash Switch Actuator

Part# 731-1210

OEM Warranty Repair Part for MTD

Not available

732-0679

Spring-Switch Handle

Part# 732-0679

OEM Warranty Repair Part for MTD

Not available

725-1565

Switch

Part# 725-1565 (Superseded to 925-1565)

OEM Warranty Repair Part for MTD

Not available

731-1198

Latch

Part# 731-1198

OEM Warranty Repair Part for MTD

Not available

732-0681

Spring-Latch

Part# 732-0681

OEM Warranty Repair Part for MTD

Not available

729-0304

Plug-2 Prong

Part# 729-0304 (Superseded to 929-0304)

Note: (Part of Cord Ass'y. #131)

OEM Warranty Repair Part for MTD

Not available

732-0680

Spring-Cord Retainer

Part# 732-0680 (Superseded to 932-0680)

OEM Warranty Repair Part for MTD

Not available

731-1211

Cord Retainer

Part# 731-1211

OEM Warranty Repair Part for MTD

Not available

729-0011

Cord Assembly

Part# 729-0011

Note: (Includes Plug #128 and all Terminals)

OEM Warranty Repair Part for MTD

Currently unavailable

725-1628

Housing-Upper Half

Part# 725-1628

OEM Warranty Repair Part for MTD

Not available

731-1209

Housing-Lower Half

Part# 731-1209

OEM Warranty Repair Part for MTD

Not available

710-1147

Screw #6 x 1/2" Drive

Part# 710-1147

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Not available

741-0588

Bushing-Split

Part# 741-0588

OEM Warranty Repair Part for MTD

Currently unavailable

629-0015

Jumper Wire Assembly (Blue)

Part# 629-0015

OEM Warranty Repair Part for MTD

Currently unavailable

735-0242

Pad-Pressure

Part# 735-0242

OEM Warranty Repair Part for MTD

Currently unavailable

625-0002

Cord & Switch Box Ass'y. Complete

Part# 625-0002

OEM Warranty Repair Part for MTD

Currently unavailable

750-0824

Spacer Insulator

Part# 750-0824

OEM Warranty Repair Part for MTD

Currently unavailable

720-0264

End Cap Insulator

Part# 720-0264

OEM Warranty Repair Part for MTD

Not available

748-0201

Spacer

Part# 748-0201 (Superseded to 948-0201)

OEM Warranty Repair Part for MTD

Not available

710-1146

Screw-Motor Housing

Part# 710-1146

Note: (Special)

OEM Warranty Repair Part for MTD

Not available

724-0197

Kit-Motor Housing (Both Halves)

Part# 724-0197

OEM Warranty Repair Part for MTD

Currently unavailable

624-0020

Field Assembly

Part# 624-0020

OEM Warranty Repair Part for MTD

Currently unavailable

721-0265

Oil Wick

Part# 721-0265

OEM Warranty Repair Part for MTD

Not available

721-0266

"O"-Ring

Part# 721-0266

OEM Warranty Repair Part for MTD

Not available

741-0572

Bearing-Spherical

Part# 741-0572

OEM Warranty Repair Part for MTD

Currently unavailable

624-0019

Armature & Pulley Ass'y.

Part# 624-0019

Note: (Includes Nos. 104, 105, 106, 107)

OEM Warranty Repair Part for MTD

Currently unavailable

724-0159

Spring-Field

Part# 724-0159

OEM Warranty Repair Part for MTD

Not available

731-1207

Strain Relief

Part# 731-1207

OEM Warranty Repair Part for MTD

Not available

818-60004

Brush Assembly

Part# 818-60004

OEM Warranty Repair Part for MTD

Currently unavailable

726-0302

Wire Clip

Part# 726-0302

OEM Warranty Repair Part for MTD

Not available

726-0303

Plastic Tie

Part# 726-0303

OEM Warranty Repair Part for MTD

Not available

715-0214

Pin-Handle Lock

Part# 715-0214

OEM Warranty Repair Part for MTD

Not available

732-0670

Spring-Handle Lock Pin

Part# 732-0670

OEM Warranty Repair Part for MTD

Not available

784-0296

Plate-Key

Part# 784-0296

OEM Warranty Repair Part for MTD

Not available

725-1627

Key-Switch Box

Part# 725-1627

OEM Warranty Repair Part for MTD

Not available
