247.883940 (31AM59TG799) - Craftsman Snow Thrower (2015) 375-QU Carburetor Parts Diagram

Snow Thrower

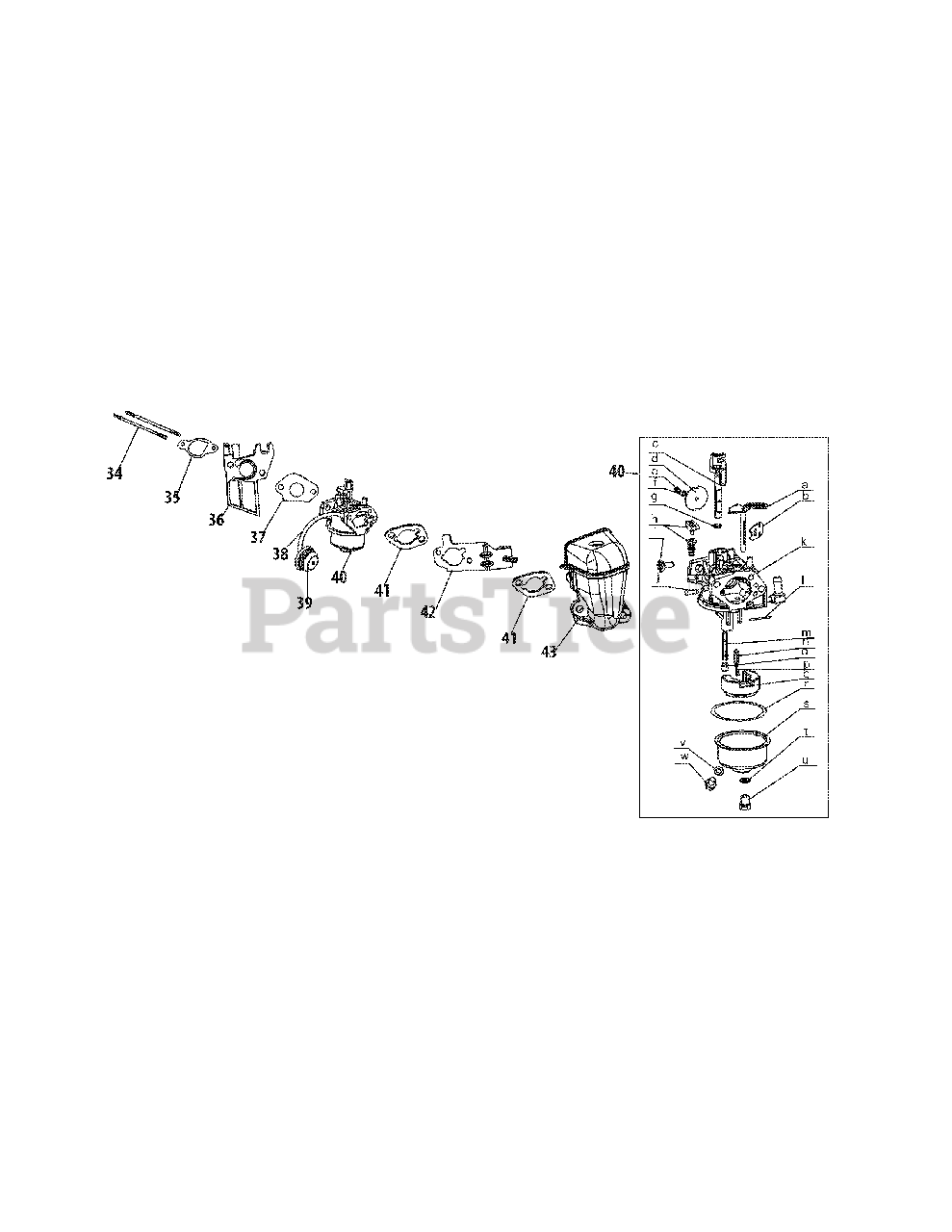

375-QU Carburetor Parts Diagram

  • Title

34

MTD 710-05093

Stud, M6×92

$3.99

$

In Stock, only 2 left!

0

35

MTD 951-11567

Gasket, Carburetor Insulator
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

36

MTD 951-11568

Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 7

0

37

MTD 951-11569A

Gasket, Carburetor
(Superseded to 751P12005A)

$5.49

$

In Stock, Qty 20+

0

38

MTD 935-05038

Fuel Hose, 3.2×6.5×150

$11.99

$

In Stock, only 1 left!

0

39

MTD 951-10639A

Primer

$13.99

$

In Stock, Qty 20+

0

40

MTD 651-05118B

Carburetor
(Superseded to 951-05118B)

$96.99

$

In Stock, only 2 left!

0

41

MTD 951-11897

Gasket, Air Filter
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

42

MTD 951-14869

Choke Controller Assembly

$6.99

$

Usually ships in 3-6 days

0

43

MTD 951-14870

Heater Box

$15.99

$

In Stock, only 1 left!

0

a

MTD n/a

Choke Shaft

$

$

Currently unavailable

b

MTD n/a

Choke Plate

$

$

Currently unavailable

c

MTD n/a

Throttle Shaft

$

$

Currently unavailable

d

MTD n/a

Throttle Plate

$

$

Currently unavailable

e

MTD 710-06230

Screw, M3×6

$3.49

$

Usually ships in 3-6 days

0

f

MTD 736-04638

Washer, 3
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

MTD n/a

Gasket

$

$

Currently unavailable

h

MTD n/a

Idle Jet

$

$

Currently unavailable

i

MTD n/a

Idle Adjusting Screw

$

$

Currently unavailable

j

MTD n/a

Primer Line

$

$

Currently unavailable

k

MTD n/a

Carburetor Body

$

$

Currently unavailable

l

MTD n/a

Float Pin

$

$

Currently unavailable

m

MTD n/a

Nozzle Tube

$

$

Currently unavailable

n

MTD n/a

Needle Valve

$

$

Currently unavailable

o

MTD n/a

Main Jet

$

$

Currently unavailable

p

MTD n/a

Needle Valve Spring

$

$

Currently unavailable

q

MTD n/a

Float

$

$

Currently unavailable

r

MTD 951-11589

O-Ring, Float Bowl
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

s

MTD 608-05001

Float Bowl
(Superseded to 908-05001)

$7.99

$

Usually ships in 3-6 days

0

t

MTD 951-11348

O-Ring, Float Bowl
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

u

MTD 710-04945

Bolt

$3.99

$

In Stock, Qty 8

0

v

MTD 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 15

0

w

MTD 710-04938

Drain Bolt

$3.99

$

In Stock, only 4 left!

0
