247.883960 (31BH55TH799) - Craftsman Snow Thrower (2012) Handle & Chute Control Parts Diagram

Snow Thrower

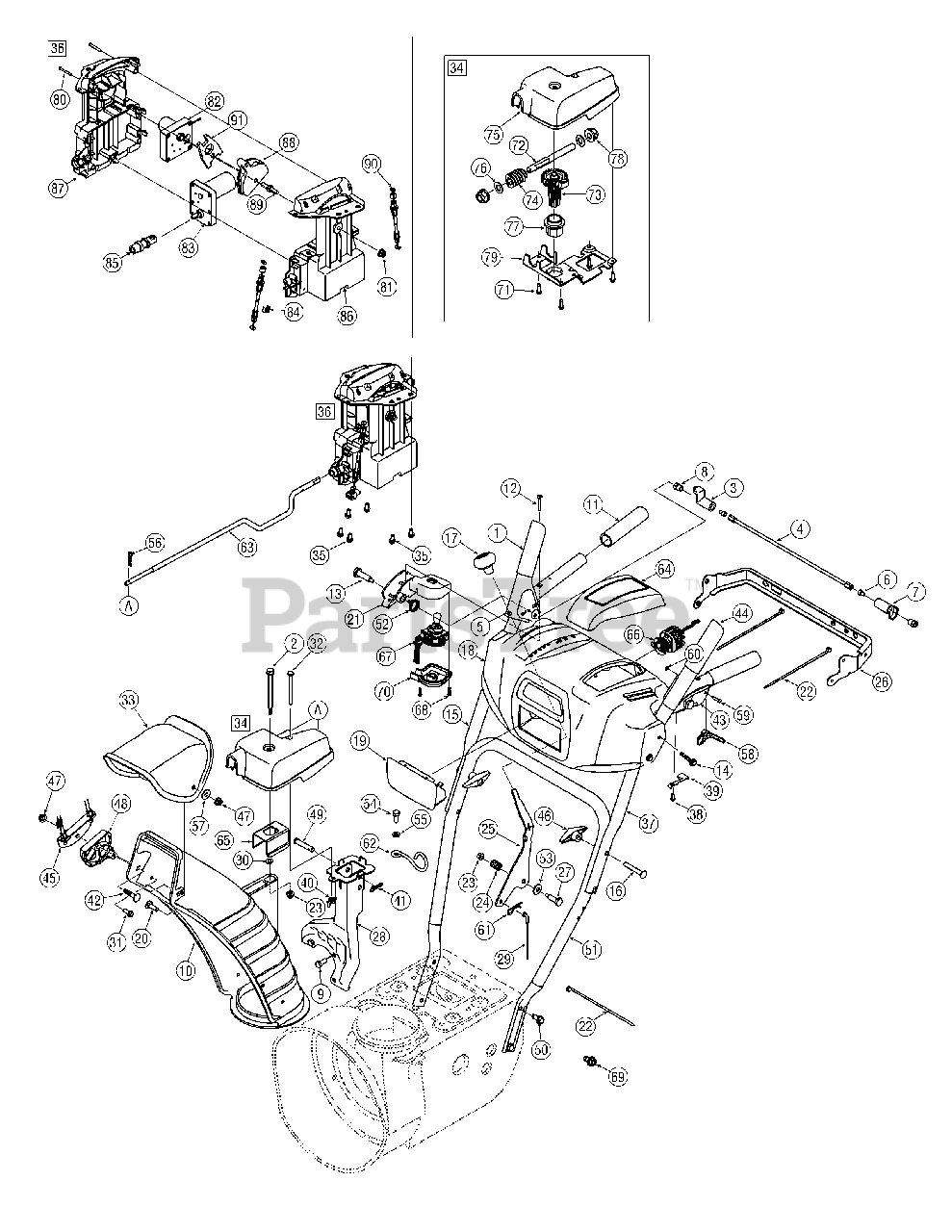

Handle & Chute Control Parts Diagram

  • Title

1

MTD 684-04112C

Handle Engagement Assembly RH
(Superseded to 684-04112D)

$19.99

$

In Stock, only 1 left!

0

2

MTD 738-04367

Flange Shoulder Screw

$4.99

$

In Stock, only 1 left!

0

3

MTD 731-04894D

Lock Plate

$4.99

$

In Stock, only 4 left!

0

4

MTD 684-04250

Pivot Rod

$11.99

$

In Stock, Qty 8

0

5

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

6

MTD 710-3069

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 13

0

7

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

8

MTD 712-04081A

Shoulder Nut, 1/4-20

$6.99

$

In Stock, only 1 left!

0

9

MTD 710-0627

Hex Screw, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-06440A

Lower Chute

$48.99

$

In Stock, Qty 20+

0

11

MTD 720-0274

Grip

$10.99

$

In Stock, Qty 6

0

12

MTD 710-1233

Screw, #10-24 x 0.375

$4.49

$

In Stock, Qty 13

0

13

MTD 738-04348

Shoulder Screw, 1/4-20

$3.49

$

In Stock, only 1 left!

0

14

MTD 710-04586

Screw, 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

15

MTD 749-04190A-0691

Upper Handle RH
(Superseded to 749-04190A-0637)

$42.99

$

Usually ships in 3-6 days

0

16

MTD 710-0572

Carriage Screw, 5/16-18 x 2.25

$3.99

$

In Stock, only 4 left!

0

17

MTD 720-04039

Shift Knob

$9.99

$

In Stock, only 4 left!

0

18

MTD 931-04187A

Handle Panel

$66.99

$

Usually ships in 3-6 days

0

19

MTD 731-05324

Lens

$13.99

$

Usually ships in 3-6 days

0

20

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

21

MTD 631-04653

Handle Clutch Lock Assembly - RH
(Superseded to 931-04653)

$11.99

$

In Stock, only 1 left!

0

22

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

23

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-0193

Compression Spring

$4.49

$

In Stock, Qty 8

0

25

MTD 790-00311A-0637

Shift Lever
(Superseded to 790-00311C-0637)

$25.99

$

In Stock, only 1 left!

0

26

MTD 790-00248C-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$22.99

$

In Stock, only 2 left!

0

27

MTD 738-04125

Shoulder Screw

$4.49

$

In Stock, Qty 18

0

28

MTD 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$37.99

$

Usually ships in 3-6 days

0

29

MTD 946-04396A

Speed Selector Cable

$19.99

$

In Stock, Qty 20+

0

30

MTD 736-04446

Flat Washer, .25 x .630 x .0515

$3.99

$

In Stock, Qty 6

0

31

MTD 710-0895

Hi-Lo Screw, 1/4-15 x .75

$5.99

$

In Stock, Qty 20+

0

32

MTD 710-04370

Hex Screw, 1/4-20 x 3.00

$3.99

$

In Stock, only 1 left!

0

33

MTD 731-04427A

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

34

MTD 918-04932A

Electric Chute Gearbox Assembly
(Superseded to 918-04932B)

$72.99

$

Usually ships in 3-6 days

0

35

MTD 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

36

MTD 984-04404

Electric Chute Control Assembly

$398.99

$

Usually ships in 3-6 days

0

37

MTD 749-04191A-0691

Upper Handle LH

$36.99

$

Usually ships in 3-6 days

0

38

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, Qty 11

0

39

MTD 732-04219C

Clutch Lock Spring

$3.99

$

In Stock, Qty 20+

0

40

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

41

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

42

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

43

MTD 631-04133A

Handle Clutch Lock Assembly - LH

$14.99

$

In Stock, only 1 left!

0

44

MTD 684-04111B

Handle Engagement Assembly LH
(Superseded to 684-04111D)

$20.99

$

In Stock, only 1 left!

0

45

MTD 784-5594-0637

Cable Bracket

$10.99

$

In Stock, only 1 left!

0

46

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

47

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

48

MTD 731-06451

Chute Tilt Cable Guide

$4.99

$

In Stock, only 1 left!

0

49

MTD 711-04469A

Clevis Pin

$5.49

$

In Stock, Qty 8

0

50

MTD 710-04484

Screw, 5/16-18 x 0.75

$3.49

$

In Stock, Qty 20+

0

51

MTD 749-04138A-0691

Lower Handle
(Superseded to 749-04138C-0691)

$71.99

$

Usually ships in 3-6 days

0

52

MTD 732-04238

Torsion Spring
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

53

MTD 936-0267

Flat Washer
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

54

MTD 710-04022

Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

55

MTD 936-0264

Flat Washer, .330 x .630 x .0635

$6.49

$

In Stock, Qty 11

0

56

MTD 914-0101

Cotter Pin
(Superseded to 714-0101)

$

$

Not available

57

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

58

MTD 731-06113

Steering Control

$4.49

$

In Stock, Qty 14

0

59

MTD 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

60

MTD 716-04036

E-Ring

$5.99

$

In Stock, Qty 9

0

61

MTD 914-0145

Click Pin
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

62

MTD 732-04677

Cable Guide

$8.49

$

Usually ships in 3-6 days

0

63

MTD 747-05721

Chute Rod

$27.99

$

Usually ships in 3-6 days

0

64

MTD 731-08947

Handle Panel Cover

$15.99

$

Usually ships in 3-6 days

0

65

MTD 790-00503

Chute Bracket

$5.99

$

In Stock, only 1 left!

0

66

MTD 925-05239

LED Light Socket
(Superseded to 925-06095A)

$48.99

$

Usually ships in 3-6 days

0

67

MTD 725-05463

Electric Chute Harness
(Superseded to 925-06243)

$197.99

$

In Stock, only 1 left!

0

68

MTD 710-04329

Screw, .159 OD x .610

$4.49

$

In Stock, only 2 left!

0

69

MTD 710-0599

Screw (For ground wire)

$3.99

$

In Stock, Qty 20+

0

70

MTD 731-08876

Joystick Housing Cover

$3.99

$

Usually ships in 3-6 days

0

71

MTD 710-04373A

Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

72

MTD 911-05752

Shaft, Worm Drive

$7.99

$

Usually ships in 3-6 days

0

73

MTD 917-04973

Gear, Helical
(Superseded to 917-04973A)

$13.99

$

In Stock, only 1 left!

0

74

MTD 917-05019

Worm, 2-Start Nylon

$6.49

$

Usually ships in 3-6 days

0

75

MTD 731-07529A

Cover, Gear, Chute Control

$17.99

$

In Stock, only 1 left!

0

76

MTD 936-0272

Wash., Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.49

$

In Stock, Qty 20+

0

77

MTD 741-04388A

Bearing, Flange, 1.00 ID

$6.99

$

Usually ships in 3-6 days

0

78

MTD 741-04453A

Bearing, Flange, .50 ID

$4.49

$

Usually ships in 3-6 days

0

79

MTD 790-00342B-0637

Brkt., Gear, Chute Rotation
(Superseded to 790-00342C-0637)

$26.99

$

Usually ships in 3-6 days

0

80

MTD 710-04509

Scr., AB, #10-16 x 1.25

$3.49

$

Usually ships in 3-6 days

0

81

MTD 712-04063

Nut, Flglk., 5/16-18

$3.99

$

In Stock, Qty 20+

0

82

MTD 724-04145

Motor, Pitch, Chute

$119.99

$

In Stock, only 1 left!

0

83

MTD 724-04146

Motor, Rotate, Chute

$167.99

$

In Stock, only 1 left!

0

84

MTD 731-07868

Clip, Cable

$3.49

$

In Stock, only 1 left!

0

85

MTD 731-08795

Coupler, Electric Chute

$3.99

$

In Stock, only 2 left!

0

86

MTD 731-08845

Hsg., LH, 4-Way, Chute Control
(Superseded to 731-08845A)

$20.99

$

Usually ships in 3-6 days

0

87

MTD 731-08846

Hsg., RH, 4-Way, Chute Control

$20.99

$

Usually ships in 3-6 days

0

88

MTD 731-1313C

Gde., Cbl., Chute Tilt

$11.99

$

Usually ships in 3-6 days

0

89

MTD 938-0849

Scr., Hex, 5/16-18 x .75

$9.49

$

Usually ships in 3-6 days

0

90

MTD 946-04528B

Cbl., Snow, 4-Way, Tall Chute

$38.99

$

In Stock, only 1 left!

0

91

MTD 748-04297

Adpt., Pitch, Chute
(Superseded to 748-04297A)

$10.99

$

Usually ships in 3-6 days

0
