247.883961 (31BH55TH799) - Craftsman Snow Thrower (2015) Chute Control Parts Diagram

Snow Thrower

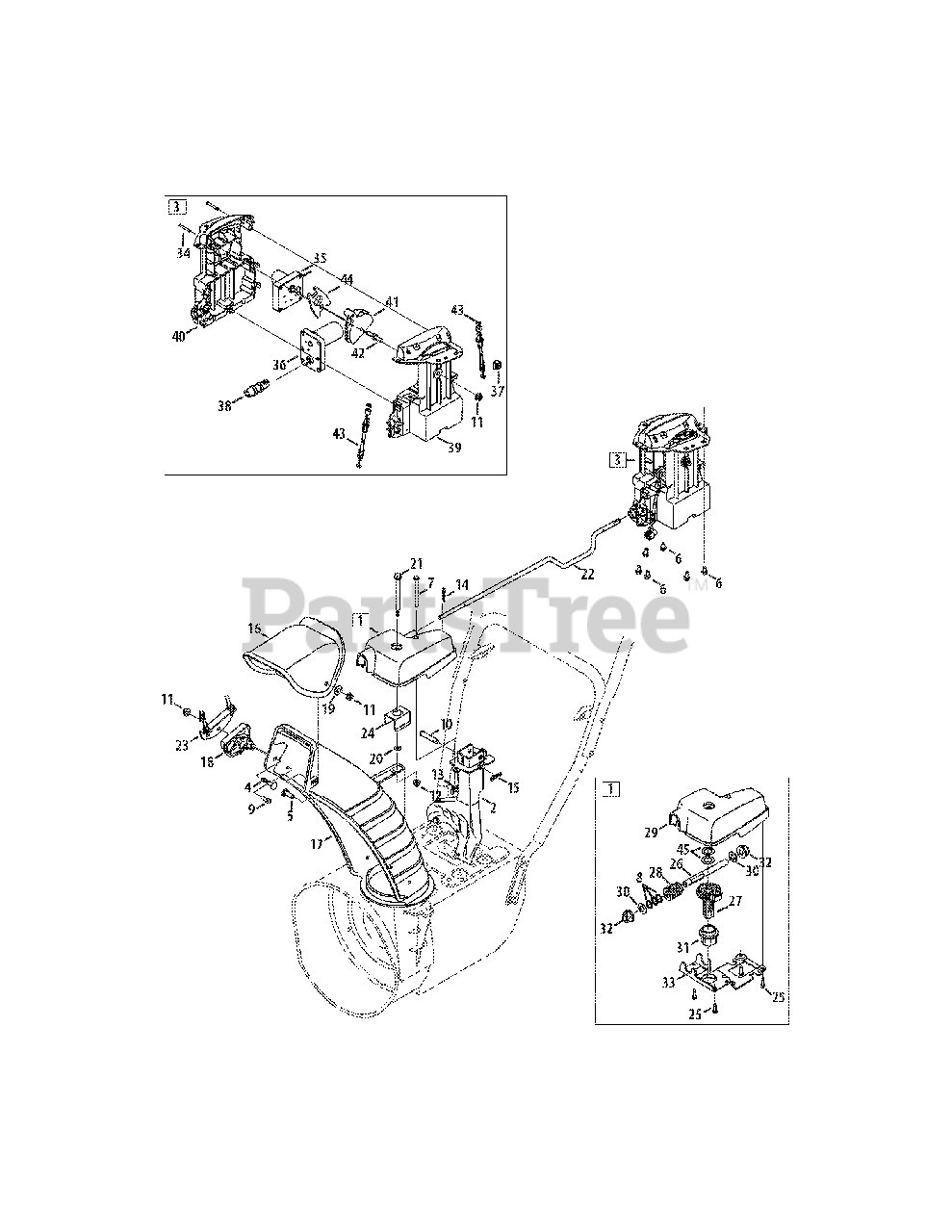

Chute Control Parts Diagram

  • Title

1

MTD 918-04932B

Gearbox Assembly, Chute Rotation

$72.99

$

Usually ships in 3-6 days

0

2

MTD 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$37.99

$

Usually ships in 3-6 days

0

3

MTD 984-05051

Chute Assembly, 4-Way Elec.

$394.99

$

In Stock, only 1 left!

0

4

MTD 710-0262

Bolt, Carriage, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

5

MTD 710-04071

Bolt, Carrier, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 16

0

6

MTD 710-04187A

Screw, HL, 1/4-15 x 0.50

$6.49

$

In Stock, Qty 10

0

7

MTD 710-04370

Hex Head Screw, 1/4-20 x 3.00

$3.99

$

In Stock, only 1 left!

0

8

MTD 736-04202

Shim Washer, .504 x .700 x .010

$3.49

$

Usually ships in 3-6 days

0

9

MTD 710-0895

Screw, HL, 1/4-15 x 0.750

$5.99

$

In Stock, Qty 20+

0

10

MTD 711-04469A

Clevis Pin, 3/8 x 1.87

$5.49

$

In Stock, Qty 8

0

11

MTD 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

15

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

16

MTD 731-04427A

Chute, Upper
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

17

MTD 731-06440A

Chute, Lower

$48.99

$

In Stock, Qty 20+

0

18

MTD 731-06451

Cable Guide, Chute Tilt

$4.99

$

In Stock, only 1 left!

0

19

MTD 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

20

MTD 736-04446

Washer, Flat, .25 x .630

$3.99

$

In Stock, Qty 6

0

21

MTD 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, only 1 left!

0

22

MTD 747-05721

Chute Crank Rod

$27.99

$

Usually ships in 3-6 days

0

23

MTD 784-5594-0637

Cable Bracket

$10.99

$

In Stock, only 1 left!

0

24

MTD 790-00503

Chute Bracket

$5.99

$

In Stock, only 1 left!

0

25

MTD 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

26

MTD 911-05752

Hex Shaft

$7.99

$

Usually ships in 3-6 days

0

27

MTD 917-04973A

Gear, 23 T

$13.99

$

In Stock, only 1 left!

0

28

MTD 917-05019

Worm

$6.49

$

Usually ships in 3-6 days

0

29

MTD 731-07529A

Gear Cover

$17.99

$

In Stock, only 1 left!

0

30

MTD 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.49

$

In Stock, Qty 20+

0

31

MTD 741-04388A

Flange Bearing, 1.00 ID

$6.99

$

Usually ships in 3-6 days

0

32

MTD 741-04453A

Flange Bearing, .50 ID

$4.49

$

Usually ships in 3-6 days

0

33

MTD 790-00342C-0637

Gear Bracket

$26.99

$

Usually ships in 3-6 days

0

34

MTD 710-04509

Screw, #10-16 x 1.25

$3.49

$

Usually ships in 3-6 days

0

35

MTD 724-04209

Chute Pitch Motor

$128.99

$

Usually ships in 3-6 days

0

36

MTD 724-04210

Chute Rotation Motor

$167.99

$

Usually ships in 3-6 days

0

37

MTD 731-07868

Cable Clip

$3.49

$

In Stock, only 1 left!

0

38

MTD 731-08795

Electric Chute Coupler

$3.99

$

In Stock, only 2 left!

0

39

MTD 731-08845A

Housing, LH

$20.99

$

Usually ships in 3-6 days

0

40

MTD 731-08846

Housing, RH

$20.99

$

Usually ships in 3-6 days

0

41

MTD 731-1313C

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

42

MTD 938-0849

Hex Screw, 5/16-18 x .75

$9.49

$

Usually ships in 3-6 days

0

43

MTD 946-04528B

4-Way Cable

$38.99

$

In Stock, only 1 left!

0

43

MTD 731-07868

Cable Clip

Note: Not Shown

$3.49

$

In Stock, only 1 left!

0

44

MTD 748-04297

Chute Pitch Adapter
(Superseded to 748-04297A)

$10.99

$

Usually ships in 3-6 days

0

45

MTD 736-04337

Shim Washer, .632 x 1.00 x .010

$3.99

$

In Stock, Qty 15

0
