247.885570 (317E738E099) - Craftsman Snow Thrower (1997) (Sears) Drive Assembly Parts Diagram

Snow Thrower

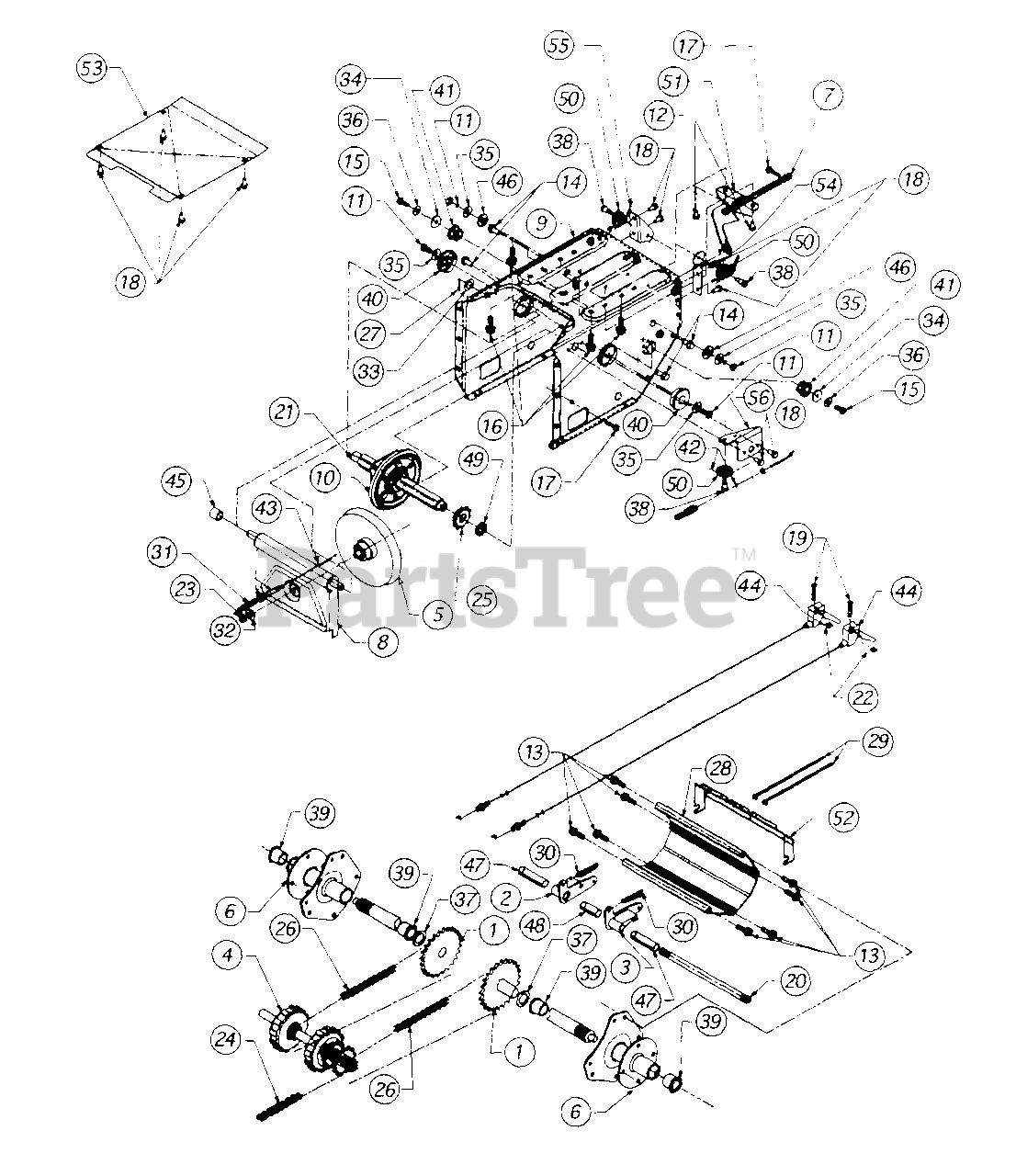

Drive Assembly Parts Diagram

  • Title

1

MTD 611-0053

Axle Assembly

$90.99

$

In Stock, only 2 left!

0

2

MTD 618-0043

Dog Assembly - R.H.

$22.99

$

In Stock, only 1 left!

0

3

MTD 618-0044

Dog Assembly - L.H.

$22.99

$

In Stock, only 1 left!

0

4

MTD 618-0169

Shaft Assembly
(Superseded to 918-0169B)

$321.99

$

Usually ships in 3-6 days

0

5

MTD 656-0012A

Disc Assembly
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

6

MTD 683-0024

Hub Assembly
(Superseded to 683-0024-0637)

Variations

MTD 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

7

MTD 684-0014A

Shift Rod Assembly
(Superseded to 684-0014B-0637)

Variations

MTD 684-0014A-0637

Shift Rod Assembly - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

8

MTD 684-0021

Bracket Assembly
(Superseded to 984-0021-0637)

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 684-0031-0483

Frame Assembly
(Superseded to 753-06327)

$

$

Not available

10

MTD 684-0042A

Wheel Assembly Friction
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

MTD 735-0243

Rubber Only
(Superseded to 935-0243B)

$17.99

$

In Stock, Qty 20+

0

11

MTD 710-0118

Screw
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0599

Screw

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-0602

Screw

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0604

Screw
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0654A

Screw

$3.99

$

In Stock, only 4 left!

0

17

MTD 710-0788

Screw

$6.99

$

In Stock, only 4 left!

0

18

MTD 710-0896

Screw

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-1233

Screw

$4.49

$

In Stock, Qty 13

0

20

MTD 711-0911

Actuator Shaft

$

$

Not available

21

MTD 711-1042

Drive Shaft

$139.99

$

In Stock, only 2 left!

0

22

MTD 712-0127

Flange Nut

$3.49

$

In Stock, Qty 13

0

23

MTD 712-0711

Jam Nut

$3.99

$

In Stock, Qty 20+

0

24

MTD 713-0233

Chain - 1/2 pitch x 30 links

$38.99

$

In Stock, only 1 left!

0

25

MTD 713-0413

Sprocket - 10 tooth

$11.99

$

Usually ships in 3-6 days

0

26

MTD 713-0437

#420 Chain - 32 Links

$34.99

$

Usually ships in 3-6 days

0

27

MTD 714-0474

Pin Cotter

$4.49

$

In Stock, Qty 16

0

28

MTD 719-0295A

Housing Track

$

$

Not available

29

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

30

MTD 732-0209

Spring
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 12

0

31

MTD 732-0264

Spring
(Superseded to 932-0264)

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0105

Bell Washer

$3.99

$

In Stock, Qty 20+

0

33

MTD 736-0160

Flat Washer

$3.99

$

In Stock, only 2 left!

0

34

MTD 736-0176

Flat Washer

$3.99

$

In Stock, Qty 20+

0

35

MTD 736-0242

Bell Washer

$3.99

$

In Stock, Qty 20+

0

36

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 13

0

37

MTD 736-0287

Flat Washer

$3.99

$

In Stock, Qty 20+

0

38

MTD 738-0924

Shoulder Screw
(Superseded to 738-0924A)

$6.49

$

In Stock, Qty 6

0

39

MTD 741-0339

Flange Bearing
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

40

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

41

MTD 741-0597

Hex Flange Bearing
(Superseded to 941-0597)

$11.99

$

In Stock, Qty 12

0

42

MTD 746-0897

Cable - Auger Clutch
(Superseded to 946-0897)

$23.99

$

In Stock, Qty 20+

0

43

MTD 746-0898

Cable - Drive Clutch
(Superseded to 946-0898)

$25.99

$

In Stock, Qty 20+

0

44

MTD 746-0900

Cable with Trigger Lever
(Superseded to 753-0707)

$69.99

$

In Stock, Qty 6

0

45

MTD 748-0190

Spacer

$5.99

$

In Stock, only 1 left!

0

46

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

47

MTD 750-0903

Split Spacer
(Superseded to 750-0903B)

$9.99

$

Usually ships in 3-6 days

0

48

MTD 750-0904

Split Spacer

$

$

Not available

49

MTD 750-0997

Spacer
(Superseded to 950-0997)

$6.49

$

In Stock, only 4 left!

0

50

MTD 756-0625

Roller - Cable

$8.99

$

In Stock, Qty 20+

0

51

MTD 784-5590

Bracket

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

52

MTD 784-5609-0483

Bracket

$

$

Not available

53

MTD 784-5648-0483

Cover - Frame
(Superseded to 784-5648A-0637)

$

$

Not available

54

MTD 784-5687-0483

Bracket - Guide

$

$

Currently unavailable

55

MTD 784-5688-0483

Bracket - Guide

$

$

Currently unavailable

56

MTD 784-5689-0483

Bracket - Guide

$

$

Currently unavailable
