247.885570 (317E738E099) - Craftsman Snow Thrower (1997) (Sears) Gear Assembly Parts Diagram

Snow Thrower

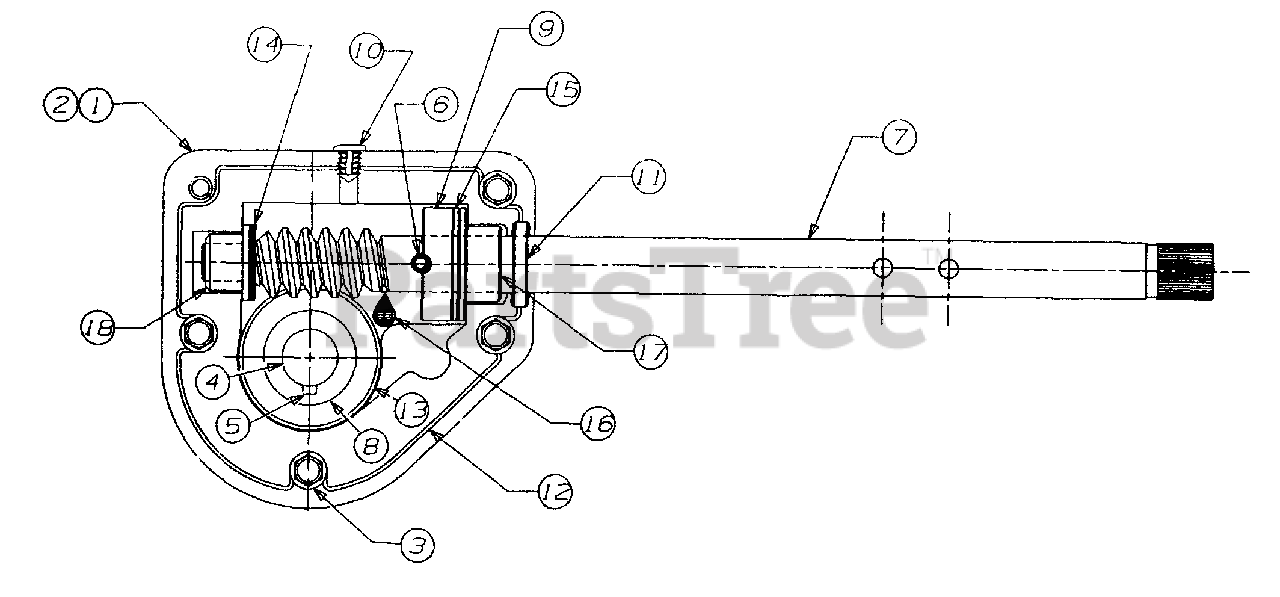

Gear Assembly Parts Diagram

  • Title

1

MTD 618-0123-0483

Housing - R.H.

$

$

Currently unavailable

2

MTD 618-0124-0463

Housing - L.H.

$

$

Currently unavailable

3

MTD 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0908

Axle, Spiral
(Superseded to 711-0908A)

$

$

Not available

5

MTD 714-0161

Key, Hi-Pro
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 12

0

6

MTD 715-0143

Pin, Spiral

$4.49

$

In Stock, Qty 15

0

7

MTD 717-0526

Worm, Shaft
(Superseded to 717P0526)

$101.99

$

In Stock, only 2 left!

0

8

MTD 717-0528

Gear, Worm
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

9

MTD 718-0186

Collar, Thrust

$7.99

$

In Stock, only 2 left!

0

10

MTD 721-0325

Plug

$4.49

$

In Stock, only 1 left!

0

11

MTD 721-0327

Seal, Oil

$6.49

$

In Stock, Qty 20+

0

12

MTD 721-0328

Loctite 5699, Ultra

$

$

Currently unavailable

13

MTD 736-0351

Washer

$3.99

$

In Stock, Qty 20+

0

14

MTD 736-0369

Washer

$4.49

$

In Stock, Qty 6

0

15

MTD 736-0445

Washer

$3.99

$

In Stock, only 3 left!

0

16

MTD 737-0168

Grease
(Superseded to 737-0168A)

$28.99

$

In Stock, only 1 left!

0

17

MTD 741-0662

Bearing Flange

$9.99

$

In Stock, Qty 20+

0

18

MTD 741-0663

Bearing Flange

$8.99

$

In Stock, Qty 20+

0
