247.885690 (317E758F099) - Craftsman Snow Thrower (1997) (Sears) Blower Housing Parts Diagram

Snow Thrower

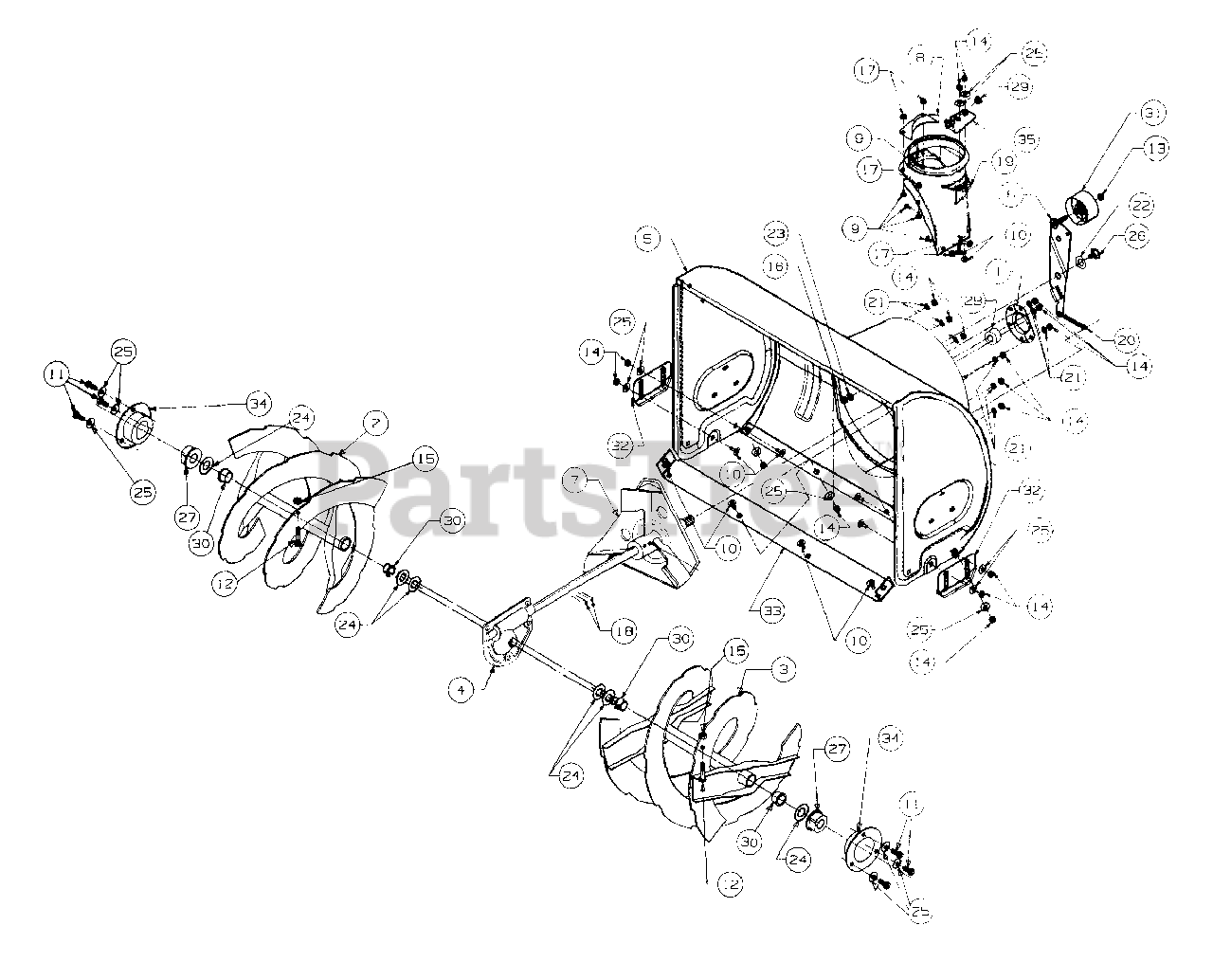

Blower Housing Parts Diagram

  • Title

1

MTD 05931

Housing - Bearing
(Superseded to 05931A)

$11.99

$

Usually ships in 3-6 days

0

2

MTD 605-5193-0637

Spiral Assembly - L.H.

$

$

Currently unavailable

3

MTD 605-5192-0637

Spiral Assembly - R.H.

$

$

Currently unavailable

4

MTD 618-0121

Gear Assembly
(Superseded to 918-0415B)

$468.99

$

Usually ships in 3-6 days

0

5

MTD 684-0040A-0689

Housing Assembly
(Superseded to 684-0040D-0689)

$

$

Not available

6

MTD 684-0064

Arm - Idler Assembly
(Superseded to 984-0064-0637)

$34.99

$

In Stock, only 2 left!

0

7

MTD 684-0065-0637

Impeller Assembly
(Superseded to 684-06276-0637)

$95.99

$

In Stock, only 4 left!

0

8

MTD 705-5226

Reinforcement - Chute

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$11.99

$

In Stock, Qty 6

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$11.99

$

In Stock, Qty 6

0

$10.99

$

Usually ships in 3-6 days

0

9

MTD 710-0167

Carriage Screw
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 16

0

10

MTD 710-0451

Carriage Screw

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0604

Hex Screw
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 19

0

12

MTD 710-0890

Shear Bolt
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

13

MTD 712-0116

Hex Lock Nut

$4.99

$

In Stock, only 3 left!

0

14

MTD 712-0267

Hex Nut
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0429

Hex Nut

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0798

Hex Nut

$4.49

$

In Stock, only 2 left!

0

17

MTD 712-3027

Hex Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

18

MTD 715-0114

Pin - Spring

$9.99

$

In Stock, Qty 20+

0

19

MTD 731-1379

Adapter - Chute
(Superseded to 731-1379D)

$69.99

$

In Stock, Qty 6

0

20

MTD 732-0611

Spring
(Superseded to 932-0611)

$7.99

$

In Stock, Qty 8

0

21

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0167

Flat Washer
(Superseded to 936-0167)

$7.49

$

In Stock, Qty 5

0

23

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

24

MTD 736-0188

Flat Washer

$4.99

$

In Stock, Qty 20+

0

25

MTD 736-0242

Bell Washer

$4.99

$

In Stock, Qty 20+

0

26

MTD 738-0281

Shoulder Screw

$11.99

$

In Stock, only 2 left!

0

27

MTD 741-0245

Flange Bearing
(Superseded to 941-0245)

$10.99

$

In Stock, Qty 20+

0

28

MTD 741-0309

Ball Bearing
(Superseded to 941-0309)

$79.99

$

In Stock, Qty 20+

0

29

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

30

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

31

MTD 756-0178

Flat Idler

$21.99

$

In Stock, only 2 left!

0

32

MTD 784-5580-0689

Slide Shoe

$

$

Currently unavailable

33

MTD 784-5579A-0689

Shave Plate
(Superseded to 790-00121-0637)

$38.99

$

In Stock, Qty 8

0

34

MTD 784-5618

Housing - Bearing
(Superseded to 784-5618A-0637)

Variations

MTD 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

35

MTD 784-5647

Bracket - Chute Crank
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$15.99

$

In Stock, only 3 left!

0

$15.99

$

In Stock, only 3 left!

0
