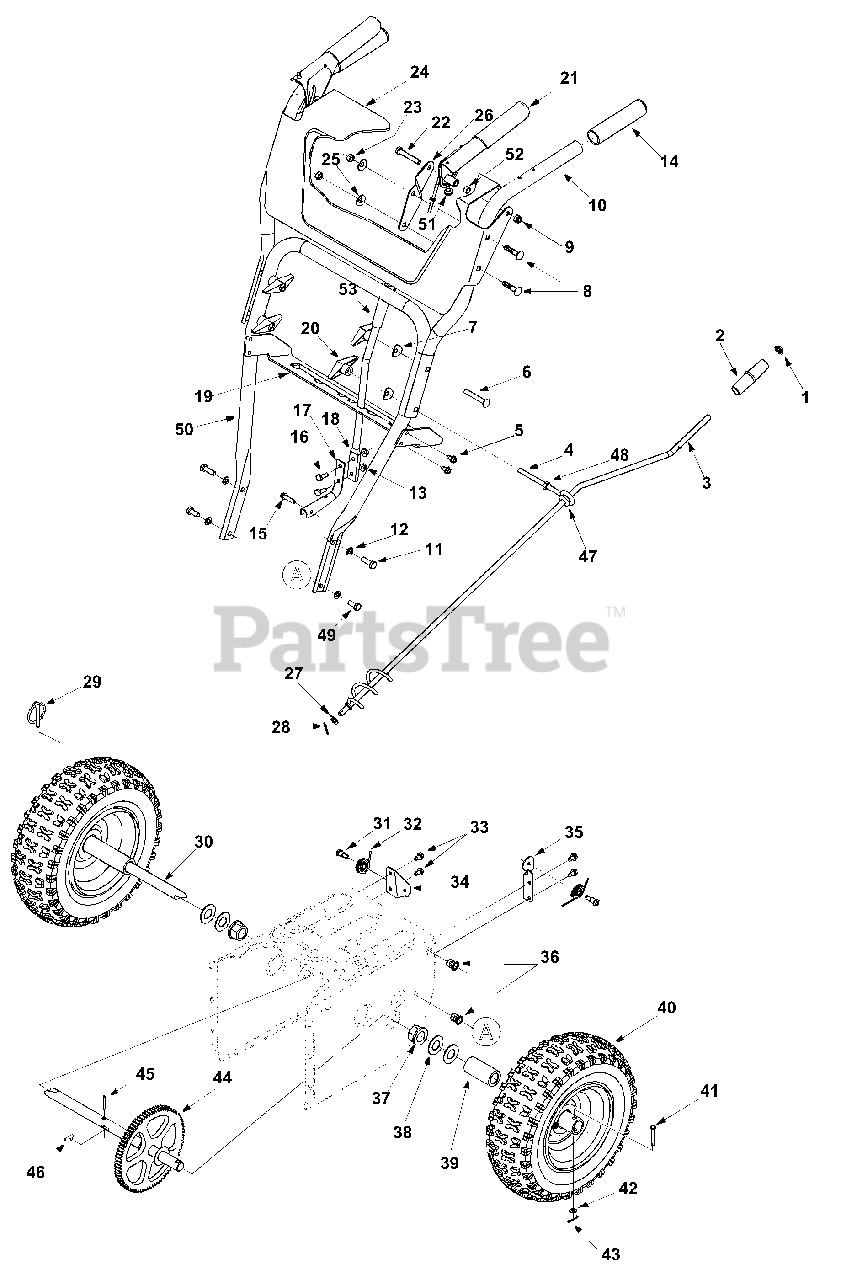

247.886640 (31AS615E099) - Craftsman Snow Thrower (2004) (Sears) Handle & Wheels Parts Diagram

Snow Thrower

Handle & Wheels Parts Diagram

  • Title

1

MTD 726-0100

Push Cap

$4.99

$

In Stock, only 2 left!

0

2

MTD 720-0201A

Chute Crank Knob

$11.99

$

In Stock, only 2 left!

0

3

MTD 705-5204A

Chute Crank Assembly
(Superseded to 984-0022)

$105.99

$

In Stock, only 2 left!

0

4

MTD 747-0697

Eye Bolt

$8.49

$

Usually ships in 3-6 days

0

5

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0449

Carriage Screw 5/16-18 x 2.25"
(Superseded to 710-0572)

$4.99

$

In Stock, Qty 8

0

7

MTD 736-0451

Saddle Washer

$4.99

$

In Stock, Qty 8

0

8

MTD 710-0262

Carriage Bolt

$4.49

$

In Stock, Qty 5

0

9

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 749-0953A

Handle: L Style LH

Variations

749-0953A-0637

MTD 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

749-0953A-0638

MTD 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

749-0953A-0665

MTD 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

MTD 749-0952A

Handle: L Style RH

Variations

749-0952A-0637

MTD 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

749-0952A-0638

MTD 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

749-0952A-0665

MTD 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

11

MTD 710-0643

Hex Lock Bolt 5/16-18 x 1.0"

$7.49

$

In Stock, Qty 20+

0

12

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-3027

Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-0274

Handle Grip

$12.99

$

In Stock, only 2 left!

0

15

MTD 710-0788

TT Screw 1/4-20 x 1.0"

$7.49

$

In Stock, only 2 left!

0

16

MTD 710-3015

Hex Bolt 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

17

MTD 732-0733

Shift Arm

$20.99

$

In Stock, only 2 left!

0

18

MTD 747-0904

Shift Lever
(Superseded to 747-0904-0637)

Variations

747-0904-0637

MTD 747-0904-0637

Shift Lever, Powder Black - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

19

MTD 705-5231

Speed Select Panel

Variations

705-5231-0637

MTD 705-5231-0637

Select Panel, 5-Speed Black - POWDER BLACK (0637)

$

$

Not available

705-5231-0638

MTD 705-5231-0638

Select Panel, 5-Speed Black - MTD/TROY-BILT RED (0638)

$

$

Not available

705-5231-0687

MTD 705-5231-0687

Select Panel, 5-Speed Black - PINE GREEN (0687)

$

$

Not available

705-5231-0689

MTD 705-5231-0689

Select Panel, 5-Speed Black - POLO GREEN (0689)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

20

MTD 720-0284

Handle Knob

$7.49

$

In Stock, Qty 20+

0

21

MTD 705-5233A

Clutch Lever LH

$

$

Not available

MTD 705-5234A

Clutch Lever RH

$46.99

$

Usually ships in 3-6 days

0

22

MTD 710-3103

Hex Bolt 5/16-18 x 2.0"

$4.99

$

In Stock, Qty 15

0

23

MTD 712-3068

Hex Lock Patch Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

24

MTD 784-5717A

Handle Panel

Variations

784-5717A-0638

MTD 784-5717A-0638

PANEL HANDLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

784-5717A-0689

MTD 784-5717A-0689

PANEL HANDLE ASM - POLO GREEN (0689)

$

$

Not available

784-5717A-0691

MTD 784-5717A-0691

PANEL HANDLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

25

MTD 736-0242

Bell Washer

$4.99

$

In Stock, Qty 20+

0

26

MTD 705-5275

Support Bracket LH

Variations

705-5275-0637

MTD 705-5275-0637

No Longer Available BRACKET-LH PNL SUP - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 705-5274

Support Bracket RH
(Superseded to 705-5274-0637)

Variations

705-5274-0637

MTD 705-5274-0637

No Longer Available BRACKET-RH PNL SUP - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 736-0185

FLat Washer

$4.49

$

In Stock, only 2 left!

0

28

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 15

0

29

MTD 714-0143

Klik Pin
(Superseded to 714-0143A)

$6.99

$

In Stock, only 2 left!

0

30

MTD 738-0869

Axle: 13"

$148.99

$

Usually ships in 3-6 days

0

31

MTD 738-0924

C Screw 1/4-28 x 0.375"
(Superseded to 738-0924A)

$7.49

$

In Stock, only 2 left!

0

32

MTD 756-0625

Cable Roller

$9.99

$

In Stock, Qty 6

0

33

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

34

MTD 784-5688

Drive Cable Guide Bracket
(Superseded to 784-5688-0637)

Variations

784-5688-0637

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

784-5688-0662

MTD 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

35

MTD 784-5687A

Auger Cable Guide Bracket
(Superseded to 784-5687A-0637)

Variations

784-5687A-0637

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 712-0703A

Nut Insert

$7.49

$

Usually ships in 3-6 days

0

37

MTD 741-04026

Hex Flange Bearing

$11.99

$

Usually ships in 3-6 days

0

38

MTD 736-0188

Flat Washer

$4.99

$

In Stock, Qty 20+

0

39

MTD 731-04044

Spacer

$11.99

$

Usually ships in 3-6 days

0

40

MTD 634-0114A

Wheel Assembly Complete

Variations

634-0114A-0911

MTD 634-0114A-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

634-0114A-0951

MTD 634-0114A-0951

No Longer Available WHEEL ASM- - Carlisle Yellow (0951)

$

$

Not available

$

$

MTD 734-1732

Tire

Variations

734-1732-0901

MTD 734-1732-0901

TIRE:SNOW HOG 13X4 - Carlisle (0901)

$159.99

$

Usually ships in 3-6 days

0

734-1732-0904

MTD 734-1732-0904

TIRE:SNOW HOG 13X4 - Cheng (0904)

$159.99

$

Usually ships in 3-6 days

0

734-1732-0905

MTD 734-1732-0905

TIRE:SNOW HOG 13X4 - Duro (0905)

$159.99

$

Usually ships in 3-6 days

0

$139.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 734-1713A

Rim

Variations

734-1713A-0499

MTD 734-1713A-0499

No Longer Available RIM ASM 6 - CUB BEIGE (0499)

$

$

Not available

734-1713A-0662

MTD 734-1713A-0662

No Longer Available RIM ASM 6X - OYSTER GRAY (0662)

$

$

Not available

734-1713A-0674

MTD 734-1713A-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

734-1713A-0731

MTD 734-1713A-0731

No Longer Available RIM ASM 6X - YELLOW JACKET (0731)

$

$

Not available

$

$

MTD 741-0401

Sleeve Bearing
(Superseded to 941-0401)

$7.99

$

In Stock, Qty 6

0

41

MTD 711-1364

Clevis Pin

$8.99

$

In Stock, only 2 left!

0

42

MTD 736-0142

Flat Washer

$4.99

$

In Stock, Qty 20+

0

43

MTD 714-0507

Cotter Pin

$4.99

$

In Stock, only 3 left!

0

44

MTD 717-1445

Gear 80T

$114.99

$

Usually ships in 3-6 days

0

45

MTD 715-0249

Roll Pin
(Superseded to 915-0249)

$7.49

$

In Stock, Qty 18

0

46

MTD 714-0126

Key: Hi Pro

$4.99

$

In Stock, Qty 18

0

47

MTD 735-0234

Rubber Grommet

$5.49

$

In Stock, Qty 10

0

48

MTD 712-3010

Hex Nut 5/16-18

$4.99

$

In Stock, Qty 20+

0

49

MTD 710-1880

Hex Bolt 5/16-18 x 0.75"

$4.99

$

Usually ships in 3-6 days

0

50

MTD 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

749-0951-0637

MTD 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

749-0951-0638

MTD 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

51

MTD 735-0199A

Rubber Bumper

$8.49

$

In Stock, Qty 18

0

52

MTD 750-1032

Spacer

$4.99

$

Usually ships in 3-6 days

0

53

MTD 720-0223

Shift Lever Grip

$15.99

$

In Stock, only 4 left!

0
