247.886913 (31AS53TF799) - Craftsman Snow Thrower (2013) Handle & Panel Parts Diagram

Snow Thrower

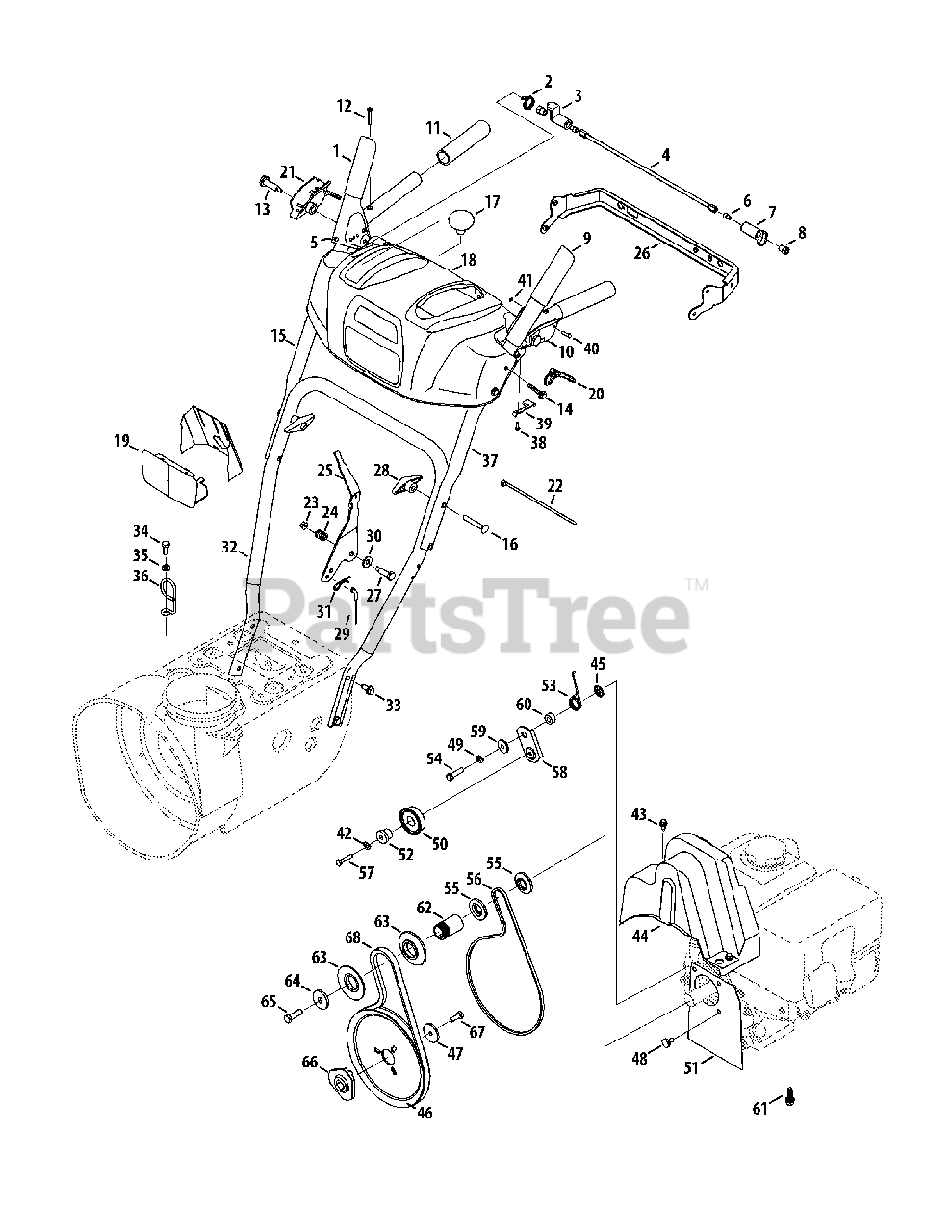

Handle & Panel Parts Diagram

  • Title

1

MTD 684-04112C

Handle Engagement Ass’y RH
(Superseded to 684-04112D)

$19.99

$

In Stock, only 1 left!

0

2

MTD 732-04238

Torsion Spring
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

3

MTD 731-04894D

Lock Plate

$4.99

$

In Stock, only 4 left!

0

4

MTD 684-04250

Pivot Rod

$11.99

$

In Stock, Qty 8

0

5

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

6

MTD 710-3069

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 13

0

7

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

8

MTD 712-04081A

Shoulder Nut, 1/4-20

$6.99

$

In Stock, only 1 left!

0

9

MTD 684-04111B

Handle Engagement Assembly LH
(Superseded to 684-04111D)

$20.99

$

In Stock, only 1 left!

0

10

MTD 631-04133A

Handle Clutch Lock LH Assembly

$14.99

$

In Stock, only 1 left!

0

11

MTD 720-0274

Handle Grip

$10.99

$

In Stock, Qty 6

0

12

MTD 710-1233

Screw, #10-24 x 0.375

$4.49

$

In Stock, Qty 13

0

13

MTD 738-04348

Shoulder Screw, 1/4-20

$3.49

$

In Stock, only 2 left!

0

14

MTD 710-04586

Screw, 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

15

MTD 749-04190A-0637

Upper Handle RH

$42.99

$

Usually ships in 3-6 days

0

16

MTD 710-0572

Carriage Screw, 5/16-18 x 2.25

$3.99

$

In Stock, Qty 5

0

17

MTD 720-04039

Shift Knob

$9.99

$

In Stock, Qty 5

0

18

MTD 753-06437

Handle Panel

$101.99

$

Usually ships in 3-6 days

0

19

MTD 731-05324

Lens

$13.99

$

Usually ships in 3-6 days

0

20

MTD 731-06113

Steering Control

$4.49

$

In Stock, Qty 14

0

21

MTD 631-04134B

Handle Clutch Lock RH Assembly

$14.99

$

In Stock, only 3 left!

0

22

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

23

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-0193

Compression Spring

$4.49

$

In Stock, Qty 8

0

25

MTD 790-00311B-0637

Shift Lever
(Superseded to 790-00311C-0637)

$25.99

$

In Stock, only 1 left!

0

26

MTD 790-00248C-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$22.99

$

In Stock, only 2 left!

0

27

MTD 738-04125

Shoulder Screw

$4.49

$

In Stock, Qty 18

0

28

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

29

MTD 946-04396A

Speed Selector Cable

$19.99

$

In Stock, Qty 20+

0

30

MTD 936-0267

Flat Washer
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

31

MTD 914-0145

Click Pin
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

32

MTD 749-04138B-0637

Lower Handle
(Superseded to 749-04138C-0637)

$82.99

$

Usually ships in 3-6 days

0

33

MTD 710-04484

Screw, 5/16-18 x 0.75

$3.49

$

In Stock, Qty 20+

0

34

MTD 710-04022

Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

35

MTD 936-0264

Flat Washer, .330 x .630 x .0635

$6.49

$

In Stock, Qty 11

0

36

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

37

MTD 749-04191A-0637

Upper Handle LH

$42.99

$

Usually ships in 3-6 days

0

38

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, Qty 11

0

39

MTD 732-04219C

Clutch Lock Spring

$3.99

$

In Stock, Qty 20+

0

40

MTD 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

41

MTD 716-04036

Retainer Ring

$5.99

$

In Stock, Qty 9

0

42

MTD 936-0329

Lock Washer

$4.49

$

In Stock, Qty 13

0

43

MTD 710-1652

AB Screw, 1/4-20 x 0.625

$3.99

$

In Stock, Qty 20+

0

44

MTD 731-05353

Belt Cover
(Superseded to 731-05353B)

$

$

Not available

45

MTD 926-04012

Push-on Nut
(Superseded to 726-04012)

$

$

Not available

46

MTD 756-04109

Auger Pulley

$50.99

$

In Stock, only 3 left!

0

47

MTD 736-0505

Flat Washer

$5.99

$

In Stock, Qty 6

0

48

MTD 738-04439

Shoulder Screw

$3.99

$

In Stock, Qty 7

0

49

MTD 936-0119

Lock Washer

$4.49

$

In Stock, Qty 20+

0

50

MTD 684-04169

Idler Pulley Assembly

$31.99

$

Usually ships in 3-6 days

0

51

MTD 790-00289A-0637

Cover Plate
(Superseded to 790-00289B-0637)

$24.99

$

Usually ships in 3-6 days

0

52

MTD 750-04571

Spacer

$6.49

$

In Stock, Qty 6

0

53

MTD 732-04308A

Torsion Spring
(Superseded to 732-04308C)

$4.99

$

In Stock, Qty 12

0

54

MTD 710-0672

Hex Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 20+

0

55

MTD 756-04252

Pulley Half

$5.99

$

In Stock, only 3 left!

0

56

MTD 954-04260

Belt, Wheel Drive

$28.99

$

In Stock, Qty 9

0

57

MTD 710-0809

TT Screw, 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

58

MTD 790-00208D

Drive Clutch Idler Bracket

$8.49

$

In Stock, only 2 left!

0

59

MTD 748-04112B

Shoulder Spacer

$3.99

$

In Stock, only 1 left!

0

60

MTD 750-04477A

Spacer

$4.99

$

In Stock, Qty 6

0

61

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

62

MTD 750-04303

Spacer

$16.99

$

In Stock, only 1 left!

0

63

MTD 756-04113

Pulley Half

$12.99

$

In Stock, only 4 left!

0

64

MTD 736-3082A

Flat Washer

$9.49

$

In Stock, Qty 17

0

65

MTD 710-0191

Hex Bolt, 3/8-24 x 1.25

$4.49

$

In Stock, Qty 8

0

66

MTD 748-04053A

Pulley Adapter

$20.99

$

In Stock, only 1 left!

0

67

MTD 710-1245B

Hex Bolt, 5/16-24 x 0.875

$7.99

$

In Stock, only 4 left!

0

68

MTD 954-04050

V-Belt,.500 x 35.00 Lg
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

MTD 952Z270-SUA

Engine Complete

$828.99

$

Usually ships in 3-6 days

0
