247.887000 (31AS380D099) - Craftsman Snow Thrower (2004) (Sears) Chute & Auger Parts Diagram

Snow Thrower

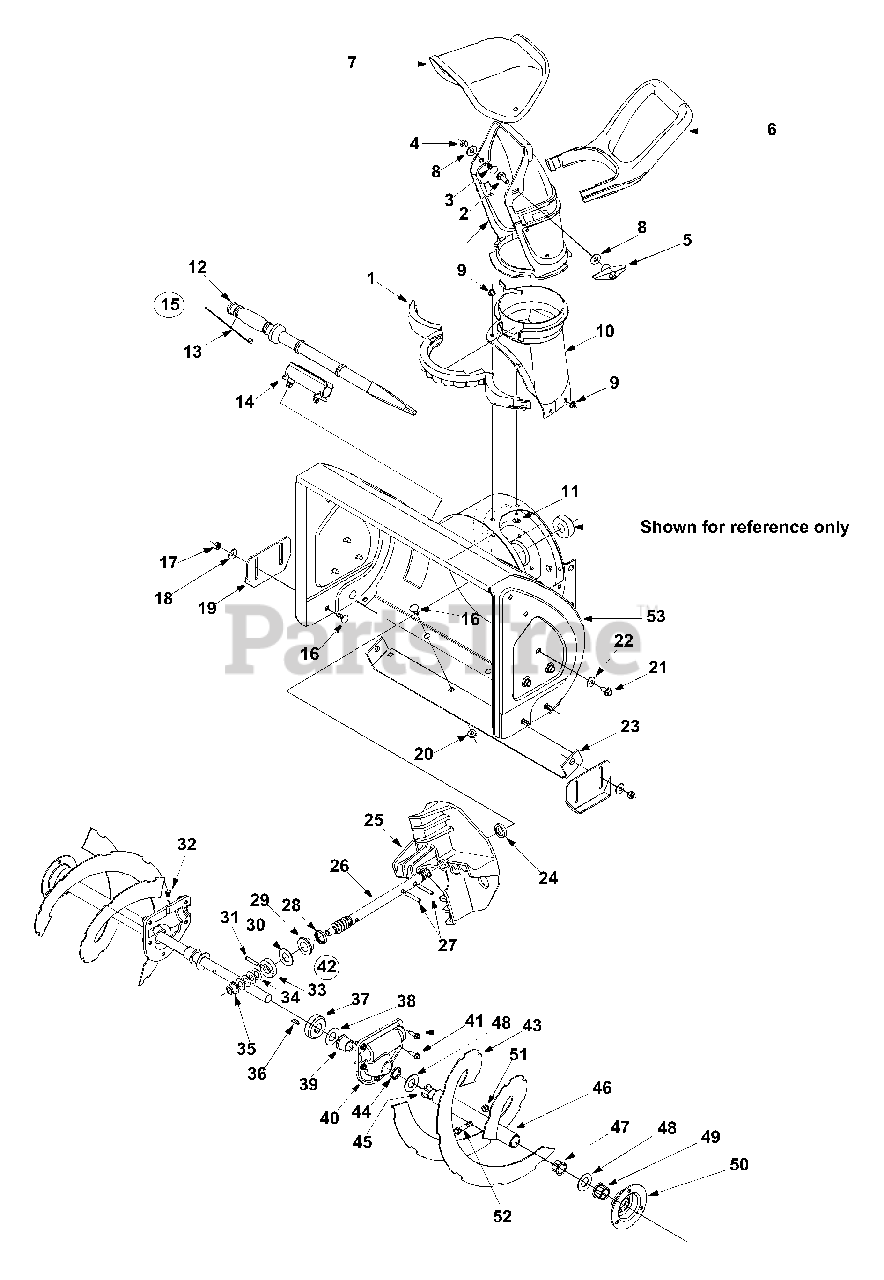

Chute & Auger Parts Diagram

  • Title

1

MTD 684-04037

Chute Assembly
(Superseded to 984-04037)

$84.99

$

Usually ships in 3-6 days

0

2

MTD 710-04071

Carriage Bolt 5/16-18 x 1.0"

$4.99

$

In Stock, only 2 left!

0

3

MTD 710-0451

Carriage Bolt 5/16-18 x 0.750"

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-3068

Patch Nut
(Superseded to 912-3009)

$

$

Not available

5

MTD 720-0284

Chute Knob Assembly

$7.49

$

In Stock, Qty 20+

0

6

MTD 731-04388

Chute Handle
(Superseded to 731-04388A)

$28.99

$

In Stock, only 2 left!

0

7

MTD 731-04426

Upper Chute
(Superseded to 731-04426C)

$20.99

$

In Stock, only 2 left!

0

8

MTD 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-3027

Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

MTD 731-2636

Lower Chute
(Superseded to 931-2636A)

$22.99

$

In Stock, only 2 left!

0

11

MTD 710-0134

Carriage Screw 1/4-20 x 0.62"

$4.49

$

In Stock, Qty 11

0

12

MTD 731-2643

Chute Clean-out Tool
(Superseded to 931-2643)

$20.99

$

In Stock, only 2 left!

0

13

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

14

MTD 731-2635

Mounting Bracket: Chute Tool
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 6

0

15

MTD 831-060000

Chute Clean-Out Tool Assy. Comp.

$

$

Currently unavailable

16

MTD 710-0451

Carriage Bolt 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-3010

Hex Nut 5/16-18

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0242

Beleville Washer

$4.99

$

In Stock, Qty 20+

0

19

MTD 784-5580

Skid Shoe

Variations

784-5580-0637

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

784-5580-0638

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

784-5580-0662

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$24.99

$

In Stock, Qty 20+

0

784-5580-0665

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$24.99

$

In Stock, Qty 20+

0

784-5580-0688

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$24.99

$

In Stock, Qty 20+

0

784-5580-0691

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$24.99

$

In Stock, Qty 20+

0

784-5580-0721

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$24.99

$

In Stock, Qty 10

0

784-5580-0729

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$24.99

$

In Stock, Qty 20+

0

784-5580-4043

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$24.99

$

In Stock, Qty 20+

0

784-5580-4044

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$24.99

$

In Stock, Qty 10

0

$24.99

$

In Stock, Qty 20+

0

20

MTD 712-3004A

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-0726

AB Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0242

Bell Washer

$4.99

$

In Stock, Qty 20+

0

23

MTD 784-5576

Shave Plate: 21.66"
(Superseded to 790-00117-0637)

Variations

784-5576-0637

MTD 784-5576-0637

Shave Plate, 22" Black - POWDER BLACK (0637)

$32.99

$

In Stock, Qty 16

0

$32.99

$

In Stock, Qty 16

0

24

MTD 750-04191

Spacer
(Superseded to 950-04191)

$6.49

$

Usually ships in 3-6 days

0

25

MTD 731-04218

Impeller

$

$

Not available

26

MTD 717-1772

Worm Shaft
(Superseded to 917-1772)

$

$

Not available

27

MTD 715-0114

Spiral Pin

$9.99

$

In Stock, Qty 20+

0

28

MTD 721-0327

Oil Seal

$6.99

$

In Stock, Qty 17

0

29

MTD 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 5

0

30

MTD 736-0445

Flat Washer

$4.99

$

In Stock, only 2 left!

0

31

MTD 715-0143

Spiral Pin

$4.99

$

In Stock, Qty 7

0

32

MTD 721-0325

Plug

$4.99

$

In Stock, only 3 left!

0

33

MTD 718-0186

Thrust Collar

$8.99

$

In Stock, Qty 7

0

34

MTD 736-0369

Flat Washer

$4.99

$

In Stock, Qty 17

0

35

MTD 741-0663

Flange Bearing

$10.99

$

In Stock, Qty 14

0

36

MTD 714-0161

Key
(Superseded to 914-0161)

$4.99

$

In Stock, Qty 18

0

37

MTD 717-0528A

Worm Gear 20T
(Superseded to 917-04861)

$45.99

$

In Stock, Qty 20+

0

38

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 618-0124

Reducer Housing Assembly LH
(Superseded to 918-0124A)

$55.99

$

In Stock, only 2 left!

0

MTD 618-0123

Reducer Housing Assembly RH
(Superseded to 918-0123A)

$55.99

$

In Stock, Qty 7

0

41

MTD 710-0642

TT Screw 1/4-20 x 0.75"

$4.99

$

In Stock, Qty 20+

0

42

MTD 618-04055

Gearbox Assembly: Auger

Note: (includes # 28 through 41)

$

$

Not available

43

MTD 684-04021

Spiral Assembly LH
(Superseded to 684-04189-0637)

Variations

684-04021-0637

MTD 684-04021-0637

SPIRAL ASM-LH 22" - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 684-04020

Spiral Assembly RH
(Superseded to 684-04188-0637)

Variations

684-04020-0637

MTD 684-04020-0637

SPIRAL ASM-RH 22" - POWDER BLACK (0637)

$169.99

$

Usually ships in 3-6 days

0

$169.99

$

Usually ships in 3-6 days

0

44

MTD 721-0179

Oil Seal

$9.49

$

In Stock, Qty 14

0

45

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

46

MTD 711-1020A

Axle: Auger 22"

$

$

Not available

47

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

48

MTD 736-0188

Flat Washer

$4.99

$

In Stock, Qty 20+

0

49

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$10.99

$

In Stock, Qty 20+

0

50

MTD 784-5618

Hex Bearing: Housing
(Superseded to 784-5618A-0637)

Variations

784-5618-0637

MTD 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

51

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5"

$1.99

$

In Stock, Qty 20+

0

53

MTD 684-04018

Auger Housing

Variations

684-04018-0638

MTD 684-04018-0638

HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

684-04018-0709

MTD 684-04018-0709

KIT-HSG 22" (REPLA - MASTERCRAFT GREEN (0709)

$

$

Not available

684-04018-0729

MTD 684-04018-0729

KIT-HSG 22" (REPLA - STORM GRAY (0729)

$

$

Not available

$205.99

$

Usually ships in 3-6 days

0
