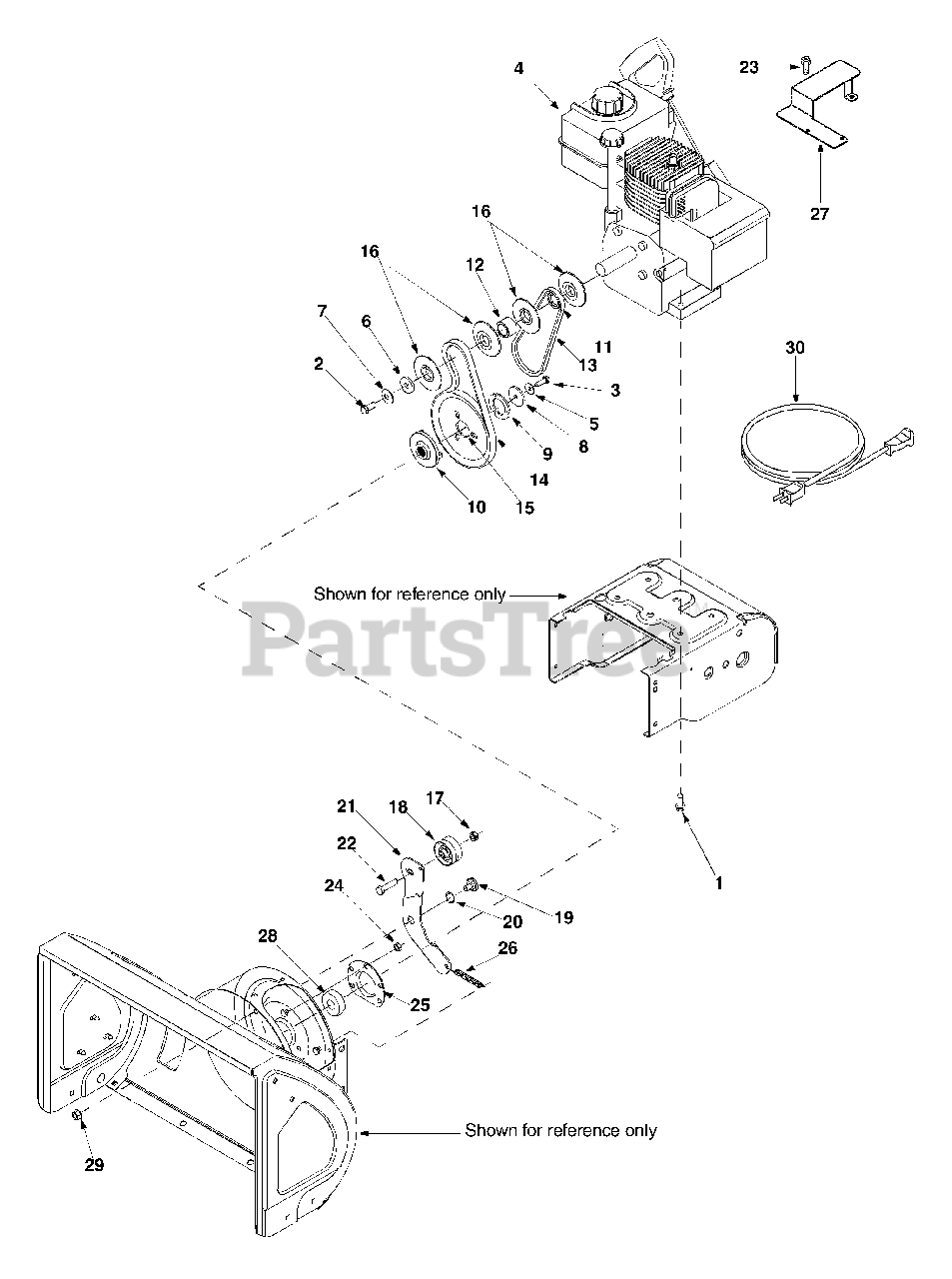

247.887001 (31AS3AAD799) - Craftsman Snow Thrower (2005) (Sears) Drive Parts Diagram

Snow Thrower

Drive Parts Diagram

  • Title

1

MTD 710-0654A

TT Sems Screw 3/8-16 x 1.0"

$3.99

$

In Stock, only 4 left!

0

2

MTD 710-0696

Hex Bolt 3/8-24 x 0.875"

$6.49

$

In Stock, only 2 left!

0

3

MTD 710-1245B

Lock Bolt 5/16-24 x 0.875"

$7.99

$

In Stock, only 4 left!

0

4

Engine

$

$

Not available

5

MTD 736-0242

Bell Washer,.340 x.872 x.060

$3.99

$

In Stock, Qty 20+

0

6

MTD 736-0247

Flat Washer,.406ID x 1.25OD

$8.99

$

In Stock, Qty 20+

0

7

MTD 736-0331

Bell Washer,.390 x 1.13 x.062

$3.99

$

In Stock, Qty 20+

0

8

MTD 736-0505

Flat Washer,.34ID x 1.50OD

$5.99

$

In Stock, Qty 6

0

9

MTD 936-0507

Special Washer, 1.285 x 2.0 x.119

$6.49

$

Usually ships in 3-6 days

0

10

MTD 948-0360

Pulley: Adapter,.75 Dia.

$21.99

$

In Stock, only 3 left!

0

11

MTD 950-1355

Spacer,.8760ID x 1.25OD x.1900

$5.99

$

Usually ships in 3-6 days

0

12

MTD 950-1356

Spacer,.8760ID x 1.25OD x.86

$9.99

$

Usually ships in 3-6 days

0

13

MTD 954-04013

V-Belt, 3/8 x 21.108 Lg.

$18.99

$

In Stock, Qty 17

0

14

MTD 954-05110

V-Belt, 3/8 x 26.680 Lg.

$28.99

$

In Stock, Qty 20+

0

15

MTD 956-04024

Auger Pulley

$23.99

$

Usually ships in 3-6 days

0

16

MTD 756-0569

Pulley Half

$10.99

$

In Stock, Qty 5

0

17

MTD 912-3000

Hex Lock Nut 3/8-16
(Superseded to 712-3000)

$3.99

$

In Stock, Qty 20+

0

18

MTD 756-04035

Flat Idler

Note: No Longer Available

$

$

Not available

19

MTD 938-0281

Shoulder Screw 3/8-16
(Superseded to 738-0281)

$

$

Not available

20

MTD 736-0174

Wave Washer

$6.49

$

Usually ships in 3-6 days

0

21

MTD 784-0434-0637

Auger Idler Bracket
(Superseded to 784-0434C-0637)

$17.99

$

Usually ships in 3-6 days

0

22

MTD 710-0520

Hex Bolt 3/8-16 x 1.50"

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0456

Screw, #10-16 x.500

$

$

Not available

24

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

MTD 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

26

MTD 932-0611

Extension Spring

$6.99

$

In Stock, Qty 20+

0

27

MTD 990-00064

Heat Shield

$

$

Not available

28

MTD 941-0309

Ball Bearing

$69.99

$

In Stock, Qty 7

0

29

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

30

MTD 929-0071A

Extension Cord: 110V, 3-prong
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0
