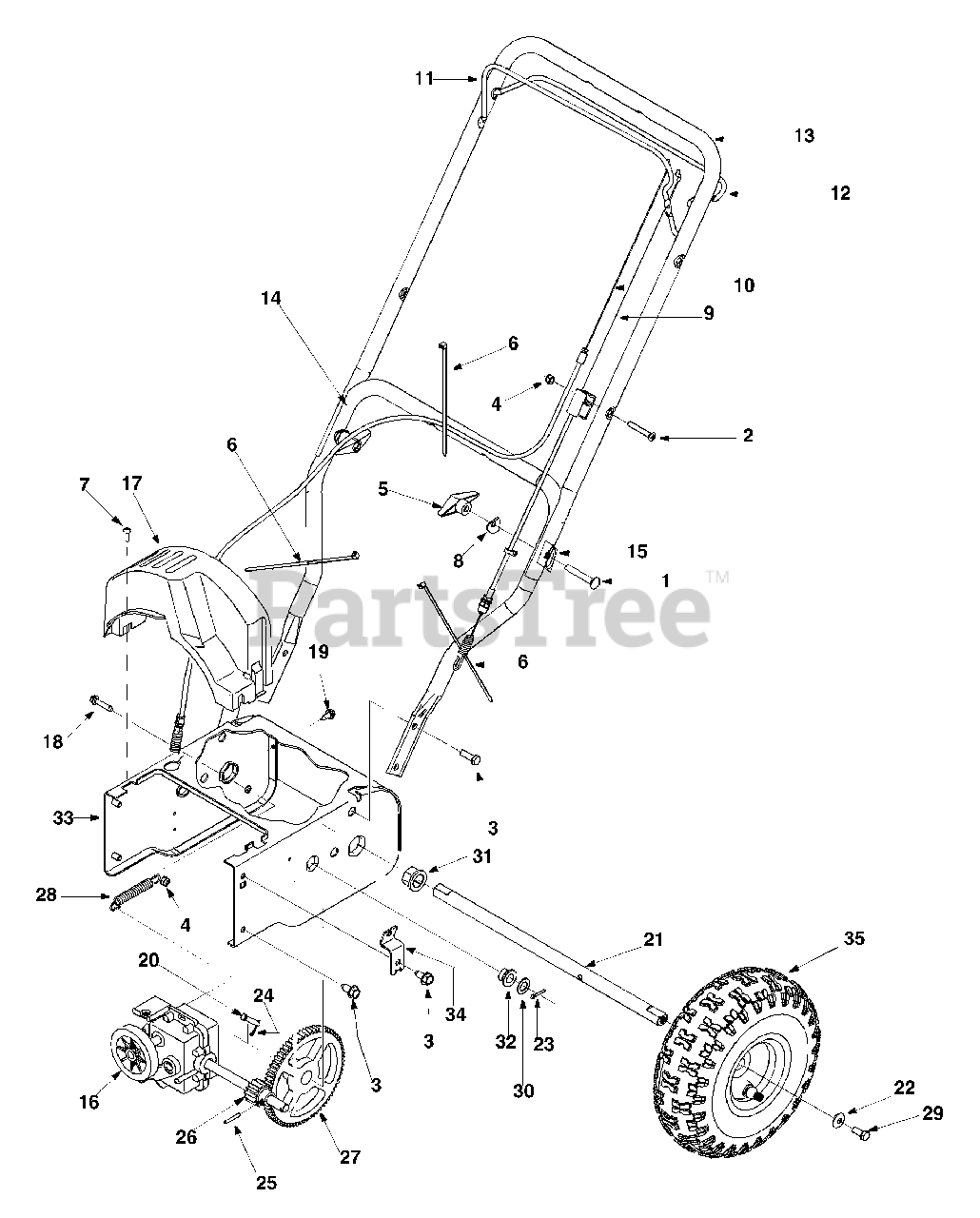

247.887001 (31AS3AAD799) - Craftsman Snow Thrower (2005) (Sears) Handle & Wheels Parts Diagram

Snow Thrower

Handle & Wheels Parts Diagram

  • Title

1

MTD 710-0449

Carriage Screw 5/16-18 x 2.25"
(Superseded to 710-0572)

$3.99

$

In Stock, only 4 left!

0

2

MTD 710-0605

Mach. Screw 1/4-20 x 1.825"

$4.49

$

In Stock, only 4 left!

0

3

MTD 710-0726

Screw, 5/16-12 x.75"

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0284

Handle Knob Assembly

$6.49

$

In Stock, Qty 20+

0

6

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

7

MTD 710-0224

Hex Screw, #10-16 x.500
(Superseded to 910-0224)

$3.49

$

Usually ships in 3-6 days

0

8

MTD 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

9

MTD 746-04007

Auger Cable
(Superseded to 946-04007)

$39.99

$

In Stock, only 1 left!

0

9

MTD 731-04216A

Cable Clamp for Auger Cable

Note: Not Shown

$10.99

$

In Stock, Qty 20+

0

10

MTD 746-04008

Drive Cable
(Superseded to 946-04008)

$44.99

$

In Stock, only 1 left!

0

11

MTD 747-1161A

Auger Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

12

MTD 747-1214

Drive Control

$21.99

$

In Stock, Qty 9

0

13

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 4 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

14

MTD 749-04147

Lower Handle
(Superseded to 749-04147B)

Variations

MTD 749-04147-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

15

MTD 790-00053

Handle Tab
(Superseded to 990-00053)

$6.99

$

Usually ships in 3-6 days

0

16

MTD 618-04008

Transmission Assembly
(Superseded to 753-05146)

$301.99

$

Usually ships in 3-6 days

0

17

MTD 731-04162

Belt Cover
(Superseded to 931-04162A)

$28.99

$

In Stock, only 2 left!

0

18

MTD 710-0809

TT Screw 1/4-20 x 1.25"

$6.49

$

In Stock, Qty 20+

0

19

MTD 710-1652

Screw, 1/4-20 x.625"

$3.99

$

In Stock, Qty 20+

0

20

MTD 711-1364

Clevis Pin

$7.99

$

In Stock, only 2 left!

0

21

MTD 738-1231

Axle
(Superseded to 738-04321)

$41.99

$

Usually ships in 3-6 days

0

22

MTD 736-0242

Bell Washer

$3.99

$

In Stock, Qty 20+

0

23

MTD 714-0115

Cotter Pin, 1/8 x 1.0

$3.99

$

In Stock, only 1 left!

0

24

MTD 714-0507

Cotter Pin, 3/32 x.750

$4.49

$

In Stock, only 4 left!

0

25

MTD 715-0249

Roll Pin
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

26

MTD 717-04066

Pinion 14T
(Superseded to 917-04066)

$22.99

$

Usually ships in 3-6 days

0

27

MTD 717-04073

Gear 70T
(Superseded to 917-04073A)

$56.99

$

Usually ships in 3-6 days

0

28

MTD 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.49

$

In Stock, Qty 20+

0

29

MTD 710-0627

Lock Bolt 5/16-24 x 0.75"

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0192

Flat Washer

$3.99

$

In Stock, only 2 left!

0

31

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

32

MTD 741-04108

Hex Flange Bearing

$5.99

$

In Stock, only 2 left!

0

33

MTD 784-0419A

Drive Housing Frame
(Superseded to 784-0419C)

Variations

MTD 784-0419A-0638

HOUSING-FRAME WHL - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419A-0689

HOUSING-FRAME WHL - POLO GREEN (0689)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419A-0691

HOUSING-FRAME WHL - BLACK JACK (0691)

$83.99

$

Usually ships in 3-6 days

0

MTD 784-0419A-0709

HOUSING-FRAME WHL - MASTERCRAFT GREEN (0709)

$72.99

$

Usually ships in 3-6 days

0

MTD 784-0419A-0729

HOUSING-FRAME WHL - STORM GRAY (0729)

$83.99

$

Usually ships in 3-6 days

0

$72.99

$

Usually ships in 3-6 days

0

34

MTD 790-00015

Auger Cable Bracket
(Superseded to 790-00015-0637)

Variations

MTD 790-00015-0637

Auger Cable Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 634-0232

Wheel Assembly: Snow Hog Gray
(Superseded to 934-04282B)

Note: SEE SAFETY RECALL

$54.99

$

In Stock, Qty 20+

0

35

MTD 753-05426

Pressure Relief Valve for wheel assy
(Superseded to 753-10984)

Note: SEE SAFETY RECALL-Use on units Manufactured Between June 1, 2004 (date code ...F014...) and December 31, 2005 (date code ...L315...). Part Not Shown

$176.99

$

Usually ships in 3-6 days
