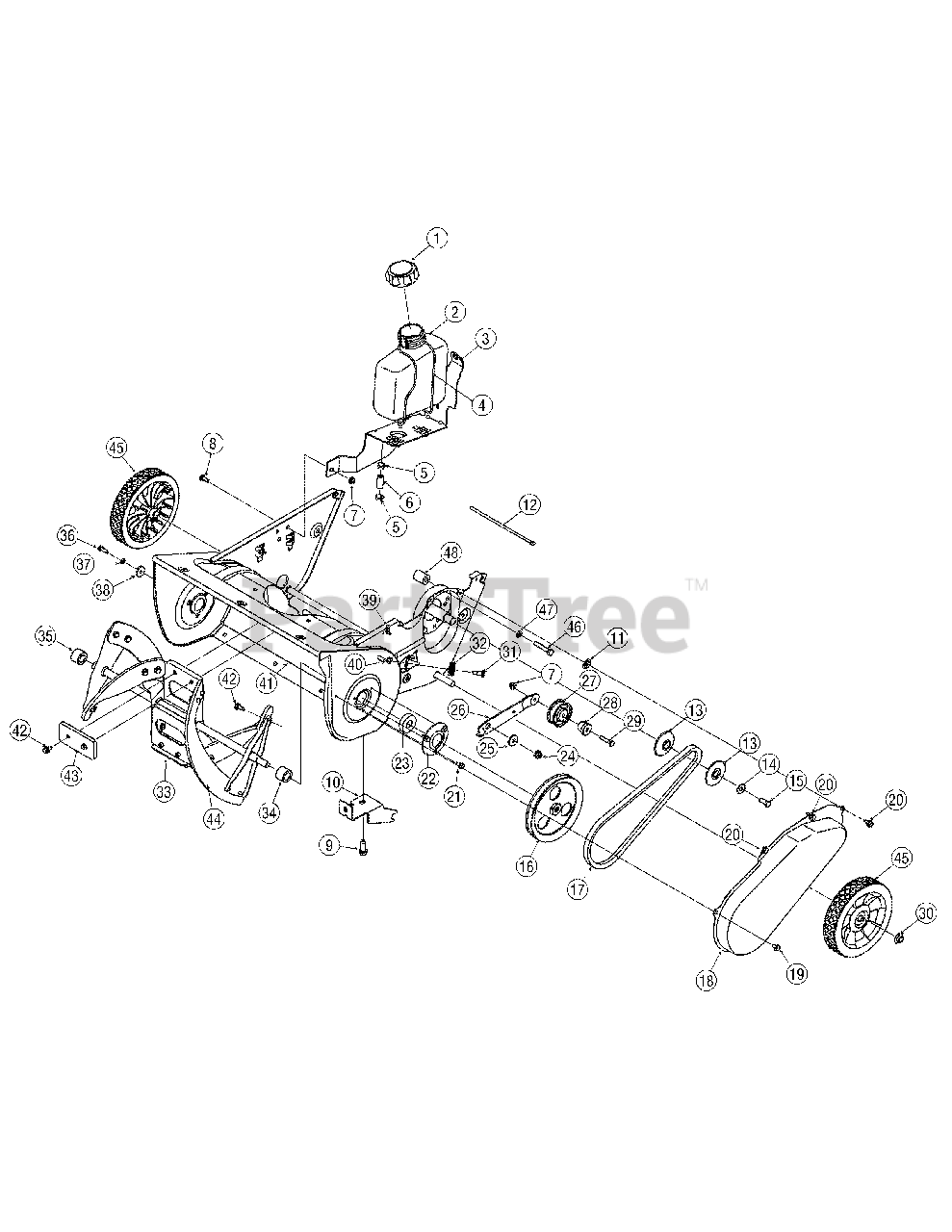

247.887040 (31A-2M1A799) - Craftsman Snow Thrower (2008) (Sears) Drive Assembly Parts Diagram

Snow Thrower

Drive Assembly Parts Diagram

  • Title

1

MTD 751-10487

Fuel Cap
(Superseded to 751-10487C)

$15.99

$

In Stock, only 1 left!

0

2

MTD 751-10023

Fuel Tank, 2 Qt.
(Superseded to 951-10023)

$

$

Not available

3

MTD 790-00134-0637

Fuel Tank Bracket

$

$

Not available

4

MTD 747-04236

Fuel Tank Support Wire

$

$

Not available

5

MTD 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

6

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

7

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0751

Hex Bolt, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0654A

Sems Screw, 3/8-16 x 1.000

$3.99

$

In Stock, only 4 left!

0

10

MTD 790-00216-0637

Engine Bracket

$

$

Not available

11

MTD 726-0233

Push Nut, .25 ID x .50 OD

$3.99

$

In Stock, Qty 11

0

12

MTD 726-0154

Cable Tie, 7.5"
(Superseded to 926-0154)

$5.99

$

Usually ships in 3-6 days

0

13

MTD 756-0416B

Pulley Half, .625 ID x .225 OD
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

14

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0627

Hex Bolt, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

16

MTD 756-04232

Pulley, 1/2 x 6.00

$56.99

$

In Stock, only 1 left!

0

17

MTD 754-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

18

MTD 790-00045B-0721

Belt Cover
(Superseded to 790-00045C-4044)

$53.99

$

In Stock, only 1 left!

0

19

MTD 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

20

MTD 710-0896

Hex Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-1005

Hex Screw, 1/4-14 x .500
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

22

MTD 790-00249

Bearing Cup
(Superseded to 790-00249-0637)

Variations

MTD 790-00249-0637

Bearing Cup, Single - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

23

MTD 741-04188A

Ball Bearing, .625 x 37 x 12

$11.99

$

In Stock, only 2 left!

0

24

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

26

MTD 790-00238A-0637

Idler Bracket

$9.49

$

Usually ships in 3-6 days

0

27

MTD 684-04168

Idler Pulley Assembly, 1.917

$36.99

$

In Stock, Qty 5

0

28

MTD 750-04571

Shoulder Spacer, .280 x .785 x .538

$6.49

$

In Stock, Qty 6

0

29

MTD 710-0106

Hex Screw, 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

30

MTD 726-0299

Push Cap, 1/2

$7.49

$

In Stock, Qty 20+

0

31

MTD 738-0924A

Shoulder Screw,

$6.49

$

In Stock, Qty 6

0

32

MTD 756-0625

Cable Roller

$8.99

$

In Stock, Qty 20+

0

33

MTD 684-04253-0637

Auger Assembly, 21"
(Superseded to 984-04253-0637)

$152.99

$

In Stock, only 1 left!

0

34

MTD 750-04757

LH Spacer

$7.99

$

Usually ships in 3-6 days

0

35

MTD 750-04758

RH Spacer

$5.99

$

In Stock, Qty 9

0

36

MTD 710-0642

Hex Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

38

MTD 736-0176

Flat Washer, .265 x .938 x .120

$3.99

$

In Stock, Qty 20+

0

39

MTD 732-0357A

Extension Spring, .33 x 1.12

$3.99

$

In Stock, Qty 5

0

40

MTD 712-0896

Hex Lock Nut, 1/4-28

$4.49

$

In Stock, Qty 6

0

41

MTD 684-04227-0721

Auger Housing Assembly, 21"
(Superseded to 684-04227-4044)

$150.99

$

Usually ships in 3-6 days

0

42

MTD 710-0896

Hex Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

43

MTD 735-04033

Rubber Pad

$7.99

$

In Stock, Qty 20+

0

44

MTD 735-04032

Spiral Crescent

$17.99

$

In Stock, Qty 20+

0

45

MTD 734-04063

Wheel, 7 x 1.5
(Superseded to 734-04063B)

$16.99

$

In Stock, Qty 20+

0

46

MTD 710-0409

Hex Bolt, 5/16-24 x 1.75

$4.49

$

Usually ships in 3-6 days

0

47

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

48

MTD 750-04297B

Spacer, .875 x .320 x1.027

$4.49

$

Usually ships in 3-6 days

0
