247.887360 (55AC5GMR299) - Craftsman Walk-Behind Mower (2008) (Sears) Caster Assembly Parts Diagram

Walk-Behind Mower

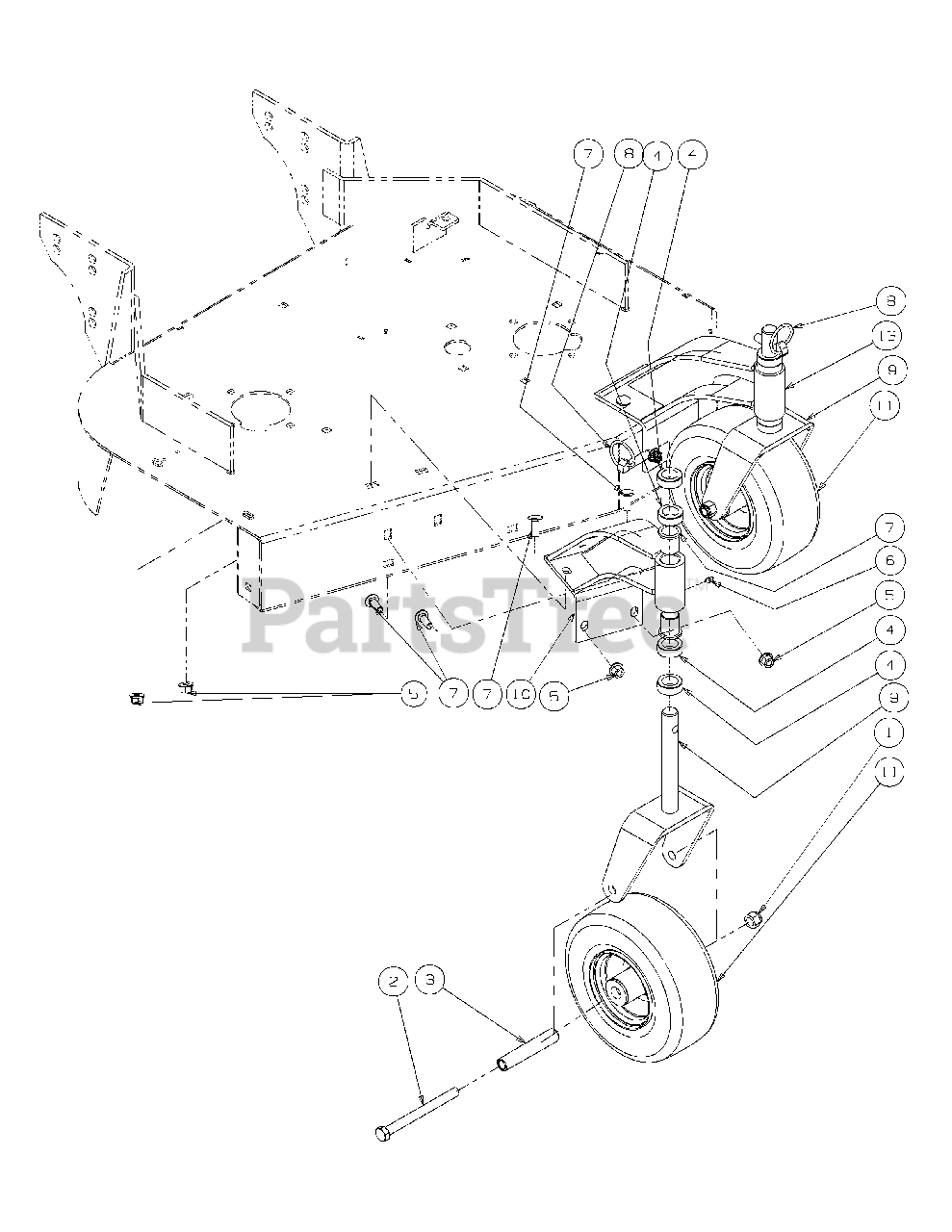

Caster Assembly Parts Diagram

  • Title

1

MTD 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.49

$

In Stock, Qty 8

0

2

MTD 00012675

Hex Cap Screw, 1/2-20, 5.50

$9.99

$

In Stock, only 1 left!

0

3

MTD 00014528

Spacer Wheel

$11.99

$

Usually ships in 3-6 days

0

4

MTD 00021925

Spacer, Caster

$15.99

$

In Stock, only 4 left!

0

5

MTD 712-04065

Hex Nut Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.49

$

In Stock, Qty 16

0

7

MTD 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 9

0

8

MTD 01000746

Klik Pin, 1.75
(Superseded to 711-1105)

$11.99

$

Usually ships in 3-6 days

0

9

MTD 01001051

Caster Yoke Assembly, Weldment
(Superseded to 01001051-0637)

Variations

MTD 01001051-0637

Caster Yoke Assembly, Black - POWDER BLACK (0637)

$165.99

$

Usually ships in 3-6 days

0

$165.99

$

Usually ships in 3-6 days

0

10

MTD 01006718

Caster Bracket Assembly

$

$

Not available

10

MTD 00064164

Caster Bushing

Note: not shown

$21.99

$

In Stock, Qty 9

0

11

MTD 02000192

Wheel Assembly, 9.0 x 3.50-4

$126.99

$

Usually ships in 3-6 days

0
