247.887360 (55AC5GMR299) - Craftsman Walk-Behind Mower (2008) (Sears) Chute Assembly Parts Diagram

Walk-Behind Mower

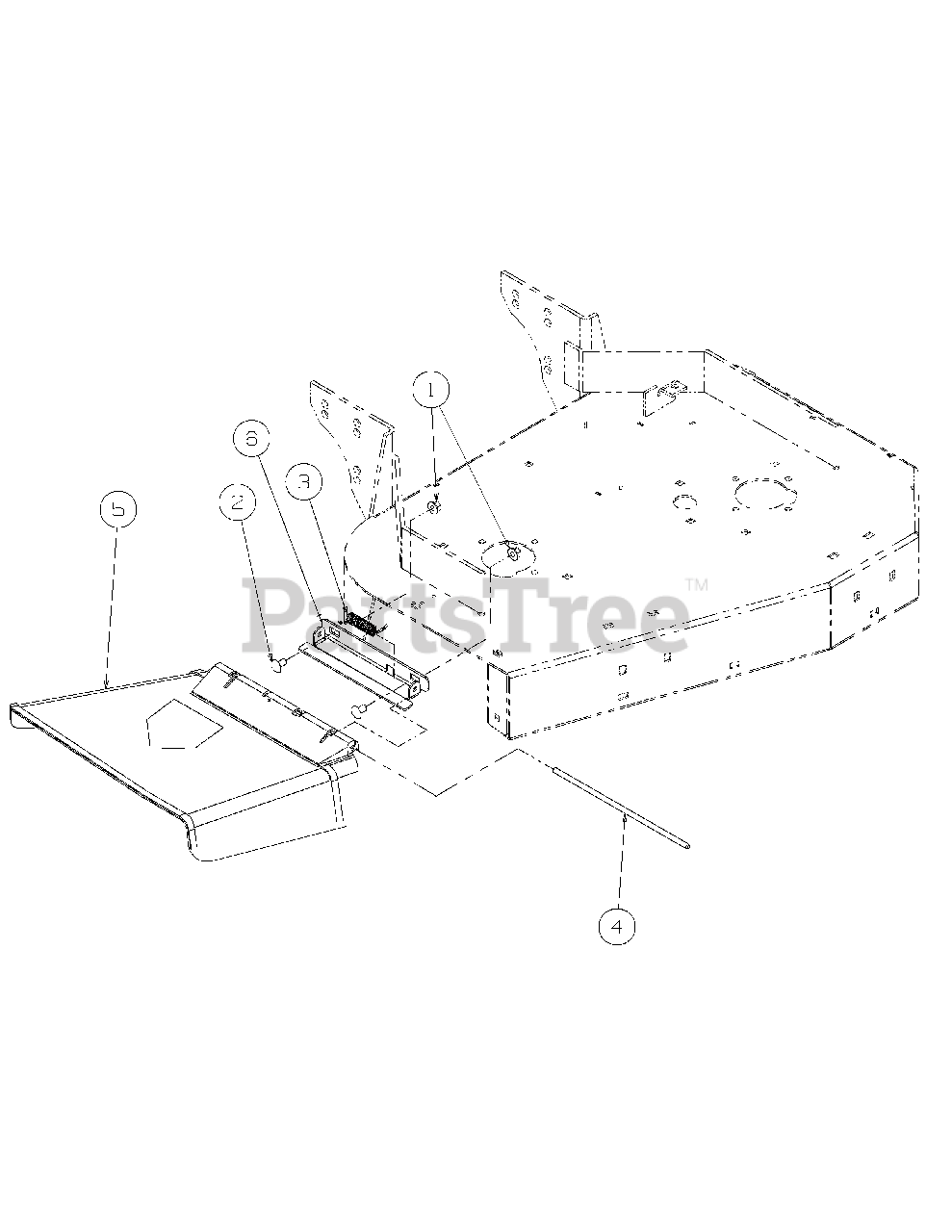

Chute Assembly Parts Diagram

  • Title

1

MTD 712-04065

Hex Nut, 3/8-16, Flange Lock

$3.99

$

In Stock, Qty 20+

0

2

MTD 01000643

Carriage Bolt 3/8-16 x 1.00

$5.49

$

In Stock, Qty 9

0

3

MTD 01003253

Torsion Spring
(Superseded to 732-04797)

$10.99

$

In Stock, Qty 11

0

4

MTD 01003254

Chute Deflector Rod
(Superseded to 747-3384)

$26.99

$

In Stock, Qty 6

0

5

MTD 01006693

Deflector Chute
(Superseded to 01006693P)

$64.99

$

In Stock, Qty 20+

0

6

MTD 01009884

Deflector Chute Bracket
(Superseded to 01009884-0637)

Variations

MTD 01009884-0637

Deflector Chute Bracket - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0
