247.887360 (55AC5GMR299) - Craftsman Walk-Behind Mower (2008) (Sears) Fuel Tank Assembly Parts Diagram

Walk-Behind Mower

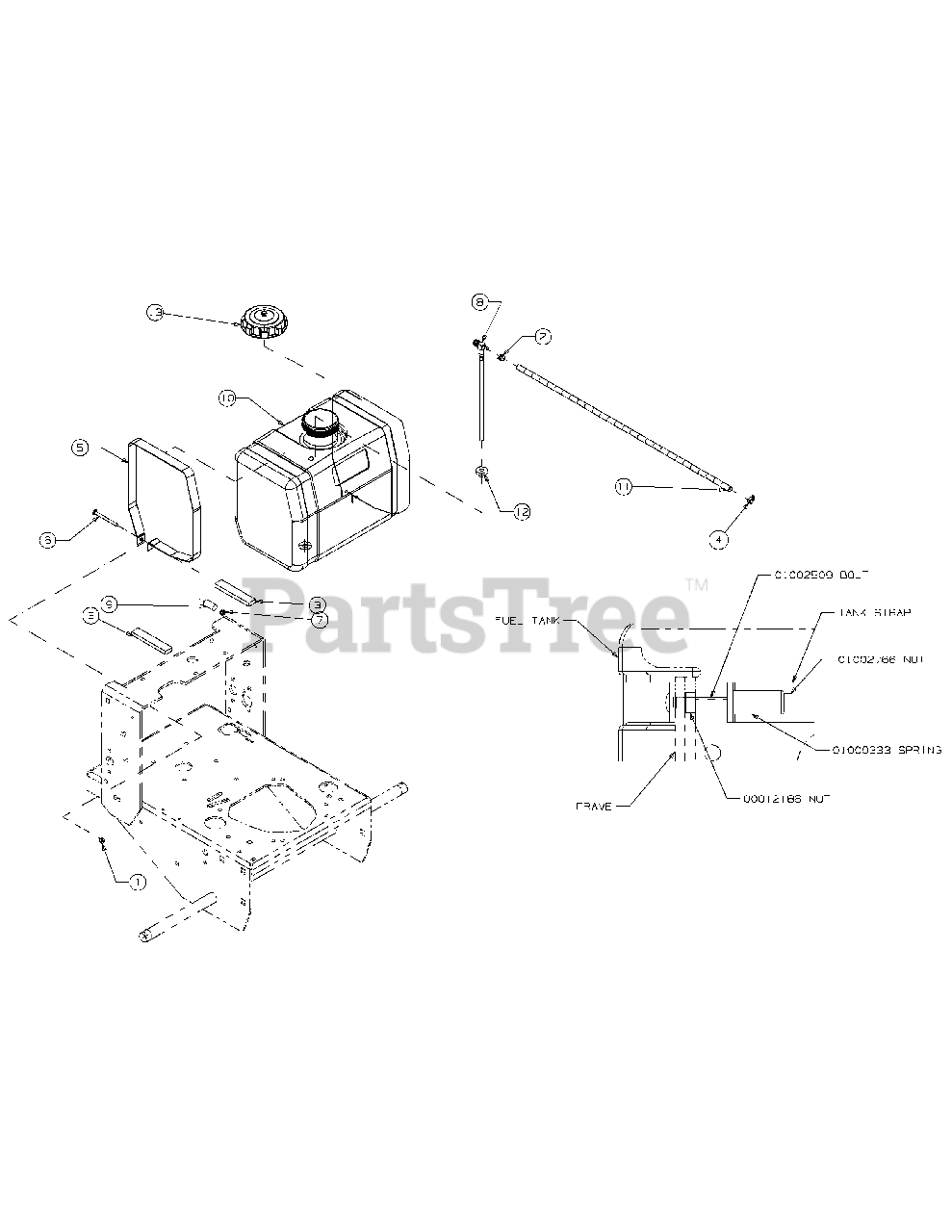

Fuel Tank Assembly Parts Diagram

  • Title

1

MTD 00012186

Hex Nut, 1/4-20

$

$

Not available

2

MTD 00012235

Uni-Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

3

MTD 00021407

Rubber Stop Pad

$6.49

$

Usually ships in 3-6 days

0

4

MTD 01000215

Hose Clamp, SAE #4: 1/4-5/8, SS

$

$

Not available

5

MTD 01001023

Fuel Tank Strap

$52.99

$

Usually ships in 3-6 days

0

6

MTD 01002509

Carriage Bolt, 1/4-20 x 3.00

$3.99

$

Usually ships in 3-6 days

0

7

MTD 01002766

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

8

MTD 01007425

Shut Off Fuel Tank
(Superseded to 751-12478)

$48.99

$

In Stock, only 3 left!

0

9

MTD 01009333

Spring, .625 OD x .390 ID x 1.20
(Superseded to 732-3065)

$3.49

$

In Stock, only 1 left!

0

10

MTD 01009858

Fuel Tank

$

$

Not available

11

Hose Fuel, 28" x .25 ID

Note: Purchase locally

$

$

Not available

12

MTD 02002253

Grommet, Fuel Tank

$4.99

$

In Stock, Qty 20+

0

13

MTD 751-3124D

Fuel Cap, 3.5
(Superseded to 951-3124E)

$33.99

$

In Stock, Qty 20+

0
