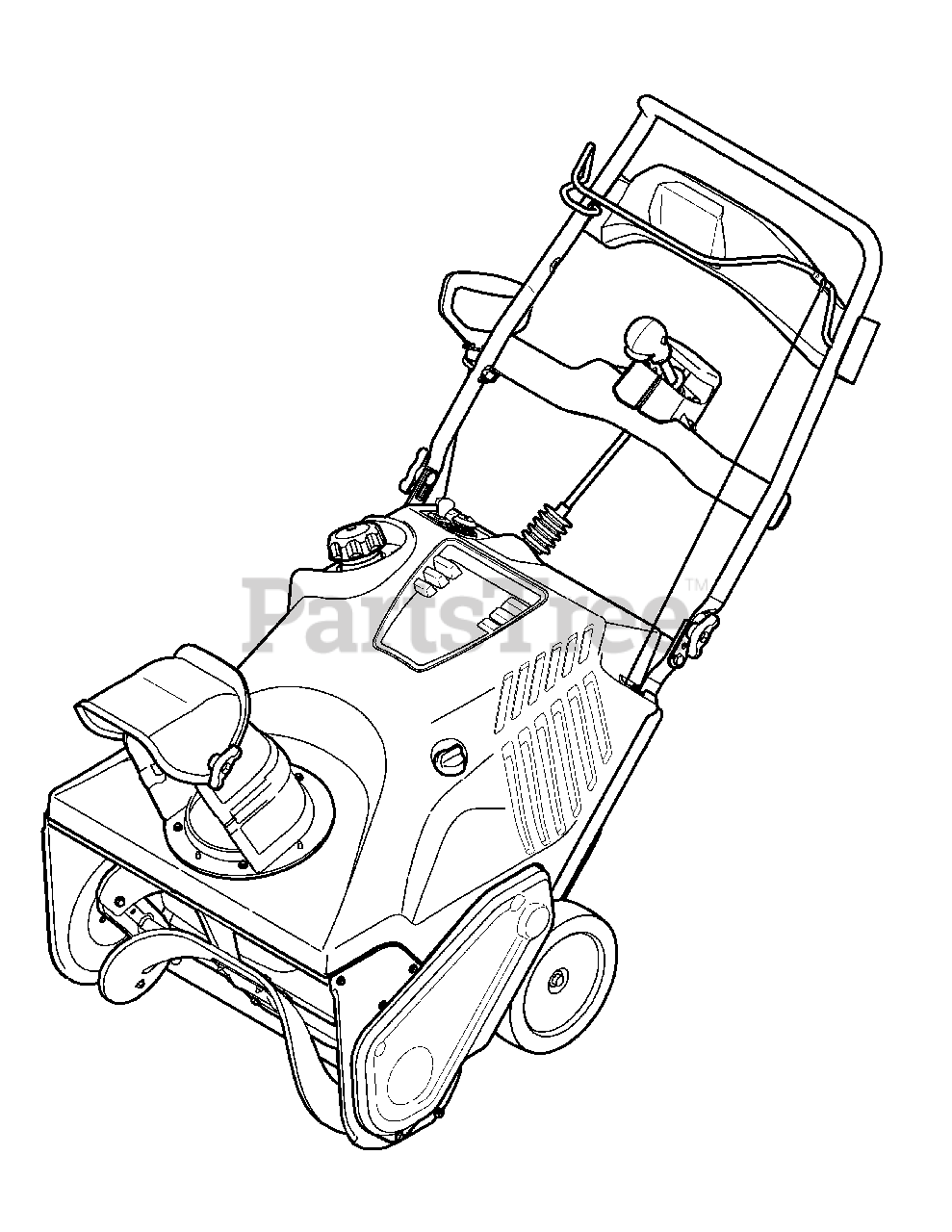

247.887820 (31AM2T6D799) - Craftsman Snow Thrower (2012) (Sears) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$3.99

$

In Stock, Qty 20+

0

MTD 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$15.99

$

In Stock, only 1 left!

0

MTD 951-10630

Key

Note: (also use 731-05632)

$6.99

$

In Stock, Qty 6

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

$22.99

$

In Stock, Qty 5

0

MTD 751-10487A

Fuel Cap
(Superseded to 751-10487C)

$17.99

$

In Stock, only 3 left!

0

MTD 946-04701

Auger Cable

$24.99

$

In Stock, Qty 7

0

MTD 984-04393

Auger Assembly

$244.99

$

Usually ships in 3-6 days

0

MTD 753-06469

Rubber Auger Paddle Kit

Note: (Includes 2 paddles and 12 hex washer screws)

$95.99

$

In Stock, Qty 15

0

MTD 735-04237

Rubber Paddle

$25.99

$

In Stock, Qty 8

0

MTD 731-08171

Shave Plate

$19.99

$

In Stock, Qty 20+

0

MTD 925-1629

Lamp

$11.99

$

In Stock, only 3 left!

0

MTD 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$28.99

$

In Stock, Qty 12

0

MTD 734-1781

Wheels
(Superseded to 734-1855)

$34.99

$

Usually ships in 3-6 days

0
