247.887870 (31A-62BD799) - Craftsman Snow Thrower (2011) (Sears) Auger & Housing Assembly Parts Diagram

Snow Thrower

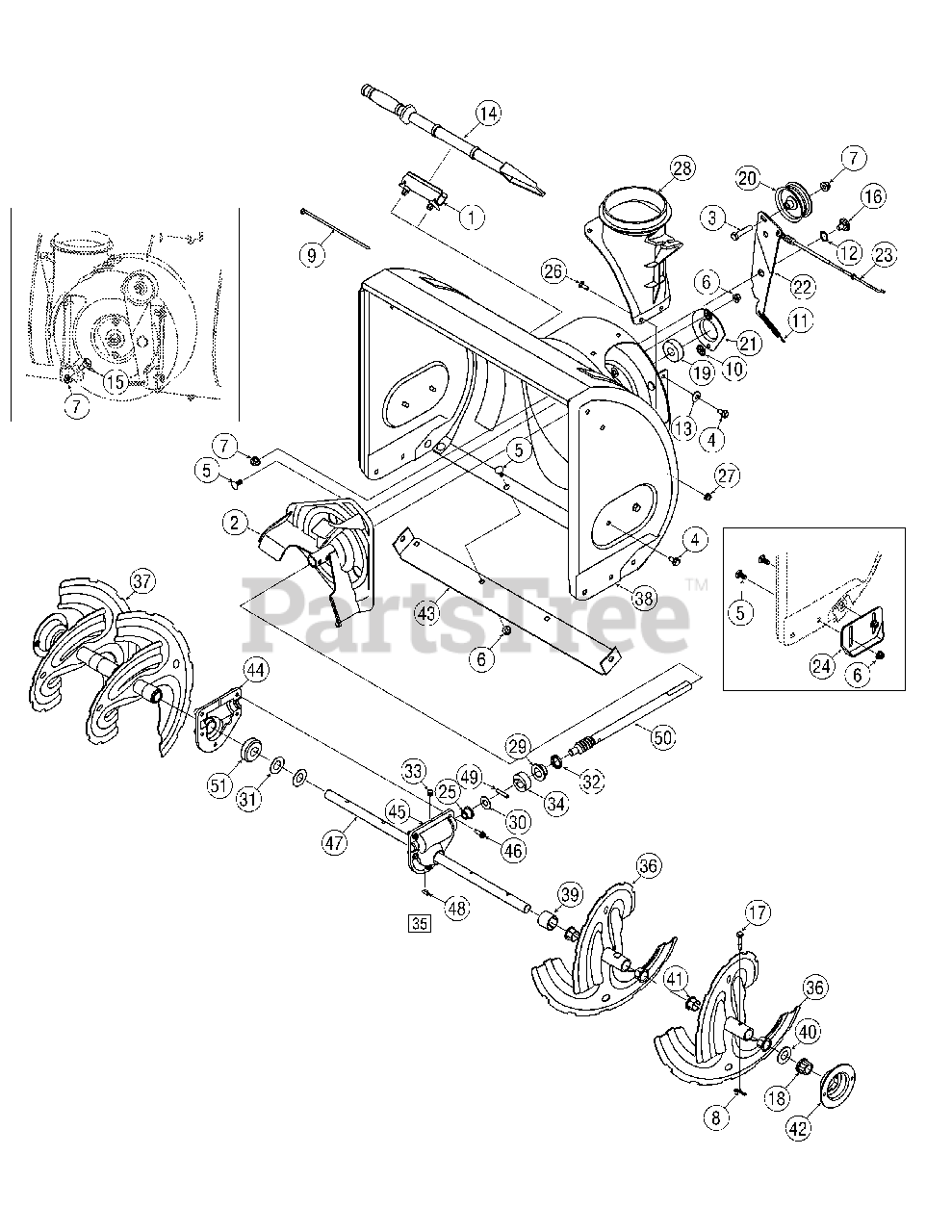

Auger & Housing Assembly Parts Diagram

  • Title

1

MTD 731-2635

Clean Out Tool Mount
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

2

MTD 684-04057A-0637

Impeller Assembly, 12"
(Superseded to 684-04057C-0637)

$68.99

$

In Stock, Qty 8

0

3

MTD 710-0347

Hex Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

5

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

Note: for Skid Shoe, Standard

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0276

Carriage Bolt, 5/16-18 x 1.00

Note: for Skid Shoe, Polymer Standard

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

9

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

10

MTD 926-04012

Push Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

11

MTD 732-04460

Extension Spring

$4.99

$

In Stock, Qty 20+

0

12

MTD 736-0174

Wave Washer, .625 x .885 x .015

$6.49

$

Usually ships in 3-6 days

0

13

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

14

MTD 931-2643

Chute Cleanout Tool

$18.99

$

In Stock, Qty 7

0

15

MTD 738-0143

Shoulder Bolt, .496 x .336 x 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 938-0281

Shoulder Screw, .625 x .17 x 3/8-16
(Superseded to 738-0281)

$

$

Not available

17

MTD 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

18

MTD 941-0245

Hex Flange Bearing, .75 ID

$9.49

$

In Stock, Qty 20+

0

19

MTD 941-0309

Ball Bearing, .75 ID x 1.85 OD

$69.99

$

In Stock, Qty 7

0

20

MTD 756-04224

Idler Pulley, 2.75 OD

$24.99

$

In Stock, Qty 20+

0

21

MTD 790-00075

Bearing Housing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

22

MTD 790-00080A-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$26.99

$

In Stock, only 1 left!

0

23

MTD 946-04230A

Auger Drive Cable
(Superseded to 946-04230B)

$21.99

$

In Stock, Qty 20+

0

24

MTD 784-5580-4044

Skid Shoe, Standard

Note: Can be replaced with 731-06439 Skid Shoe

$22.99

$

In Stock, Qty 20+

0

24

MTD 731-06439

Skid Shoe, Polymer Standard Reversible

Note: Not shown

$20.99

$

In Stock, only 2 left!

0

24

MTD 753-06206

Standard Polymer Reversible Shoe Kit

Note: (Will replace 731-06439, includes hardware & 2 shoes)

$52.99

$

In Stock, Qty 9

0

25

MTD 741-0663

Flange Bearing, .50 ID x .75 OD x .59

$8.99

$

In Stock, Qty 20+

0

26

MTD 710-0703

Carriage Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

28

MTD 731-04705D

Chute Adapter, 5"

$25.99

$

In Stock, Qty 5

0

29

MTD 741-0662

Flange Bearing, .75 ID x 1.0 OD x .59

$9.99

$

In Stock, Qty 20+

0

30

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.49

$

In Stock, Qty 20+

0

31

MTD 936-0351

Flat Washer, .760 ID x 1.50 ID
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

32

MTD 721-0327

Oil Seal, .75 x 1.131 x .188

$6.49

$

In Stock, Qty 20+

0

33

MTD 721-0325

Plug, 1/4 x .437

$4.49

$

Usually ships in 3-6 days

0

34

MTD 718-04071

Thrust Collar, .756 ID x .600

$7.49

$

In Stock, Qty 16

0

35

MTD 918-04170B

Gearbox Assembly, 22"
(Superseded to 918-04170C)

$380.99

$

In Stock, only 2 left!

0

36

MTD 684-04107-0637

Spiral Assembly, LH
(Superseded to 684-04107A-0637)

$83.99

$

In Stock, Qty 12

0

37

MTD 684-04108-0637

Spiral Assembly, RH
(Superseded to 684-04108A-0637)

$88.99

$

In Stock, Qty 14

0

38

MTD 684-04266-4044

Auger Housing Assembly, 22"

$

$

Currently unavailable

39

MTD 731-04870

Spacer, 1.2500 x .75 ID x 1.00

$4.49

$

In Stock, Qty 8

0

40

MTD 736-0188

Flat Washer, .76 x 1.49 x .06

$3.99

$

In Stock, Qty 20+

0

41

MTD 741-0493A

Flange Bushing, .800 ID x .910 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

42

MTD 790-00087A-0637

Bearing Housing, 1"

$21.99

$

In Stock, only 2 left!

0

43

MTD 790-00117-4044

Shave Plate, 22"
(Superseded to 790-00117-0637)

$28.99

$

In Stock, Qty 20+

0

44

MTD 918-0123A

Housing Assembly, RH

$48.99

$

In Stock, Qty 13

0

45

MTD 918-0124A

Housing Assembly, LH

$48.99

$

In Stock, Qty 15

0

46

MTD 710-0642

Hex Washer Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

47

MTD 711-04286

Auger Axle, 22"
(Superseded to 711-04286A)

$43.99

$

Usually ships in 3-6 days

0

48

MTD 914-0161

Hi-Pro Key

$4.49

$

In Stock, Qty 12

0

49

MTD 715-04021

Dowel Pin, .25 OD x 1.25 LG

$3.99

$

In Stock, Qty 13

0

50

MTD 917-04126

Worm Shaft, .75 OD

$73.99

$

In Stock, Qty 11

0

51

MTD 917-04861

Worm Gear 20 T

$40.99

$

In Stock, Qty 20+

0
