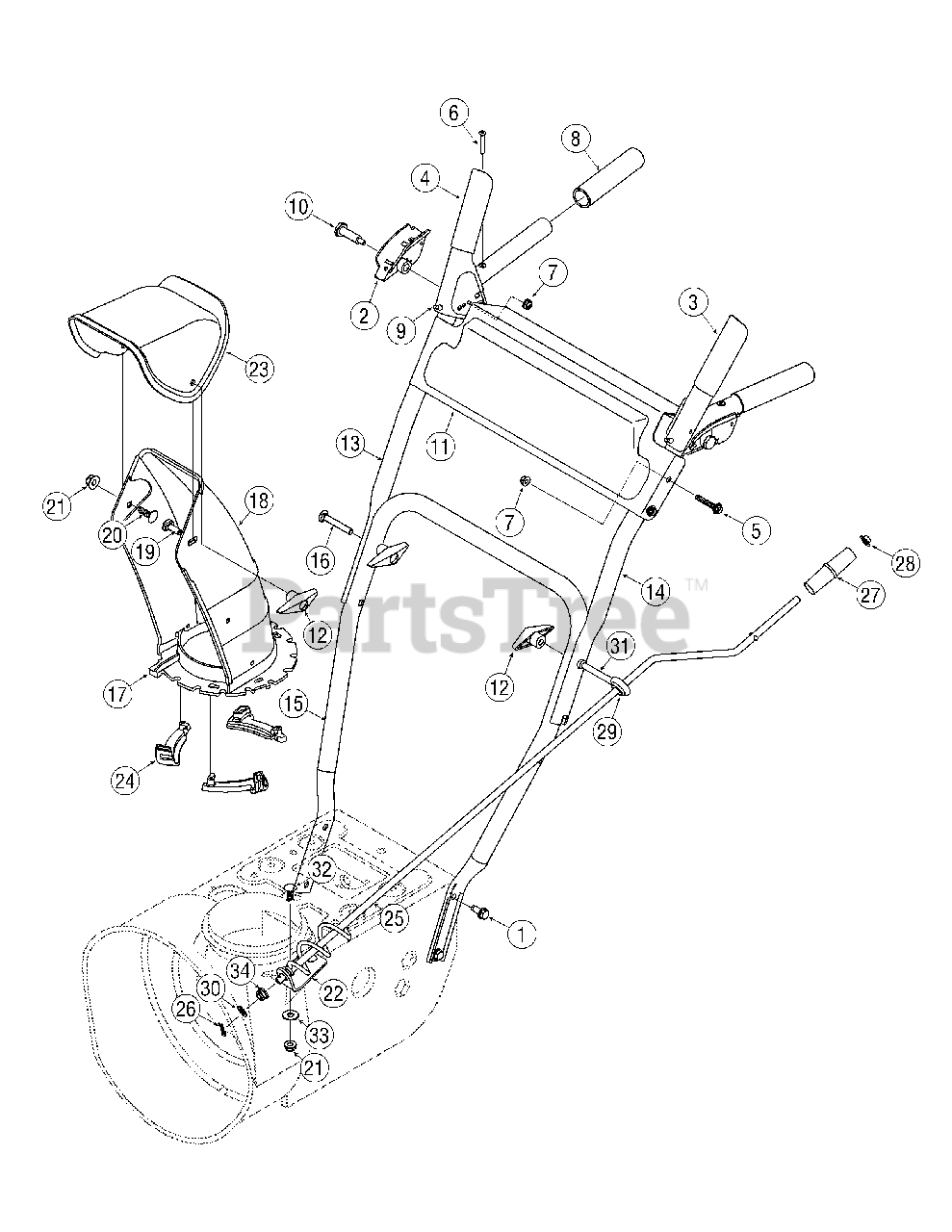

247.887870 (31A-62BD799) - Craftsman Snow Thrower (2011) (Sears) Handle & Chute Parts Diagram

Snow Thrower

Handle & Chute Parts Diagram

  • Title

1

MTD 710-04484

Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

2

MTD 631-04133A

Clutch Lock Handle Assembly, LH

$14.99

$

In Stock, only 1 left!

0

2

MTD 631-04134B

Clutch Lock Handle Assembly, RH

$14.99

$

In Stock, only 3 left!

0

3

MTD 684-04105B

Engagement Assembly, LH
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

4

MTD 684-04106B

Engagement Assembly, RH
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

5

MTD 710-0606

Hex Head Screw, 1/4-20 x 1.50

$4.99

$

In Stock, Qty 13

0

6

MTD 710-1233

Machine Screw, #10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

7

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 720-0274

Grip, 1.0 ID x 5.0 LG

$10.99

$

In Stock, Qty 6

0

9

MTD 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

10

MTD 738-04348

Shoulder Screw, .437 x 1.345 x 1/4-20

$3.49

$

In Stock, only 1 left!

0

11

MTD 790-00100-4044

Handle Panel

$53.99

$

In Stock, only 1 left!

0

12

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

13

MTD 749-04190A-0637

Upper RH Handle

$42.99

$

Usually ships in 3-6 days

0

14

MTD 749-04191A-0637

Upper LH Handle

$42.99

$

Usually ships in 3-6 days

0

15

MTD 749-04138A-0637

Lower Handle
(Superseded to 749-04138C-0637)

$82.99

$

Usually ships in 3-6 days

0

16

MTD 710-0572

Carriage Screw, 5/16-18 x 2.25

$3.99

$

In Stock, only 4 left!

0

17

MTD 631-04131B

Lower Chute Assembly

$36.99

$

In Stock, only 1 left!

0

18

MTD 731-04912B

Lower Chute

$36.99

$

In Stock, only 1 left!

0

19

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 16

0

20

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

MTD 784-5647-0637

Chute Crank Bracket

$13.99

$

In Stock, Qty 8

0

23

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

24

MTD 731-04869A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

25

MTD 684-04104-0637

Chute Crank

$58.99

$

In Stock, only 1 left!

0

26

MTD 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

27

MTD 720-0201A

Crank Knob

$10.99

$

In Stock, Qty 6

0

28

MTD 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

29

MTD 735-0234

Rubber Grommet

$4.99

$

In Stock, only 3 left!

0

30

MTD 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 15

0

31

MTD 747-04263

Eye Bolt

$8.99

$

In Stock, only 3 left!

0

32

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

33

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

34

MTD 941-0475

Plastic Bushing, .380 ID

$3.99

$

In Stock, Qty 20+

0
