247.888160 (31AE5D8E099) - Craftsman Snow Thrower (2003) (Sears) Craftsman Engine Model 143.026503 (Part 1) Parts Diagram

Snow Thrower

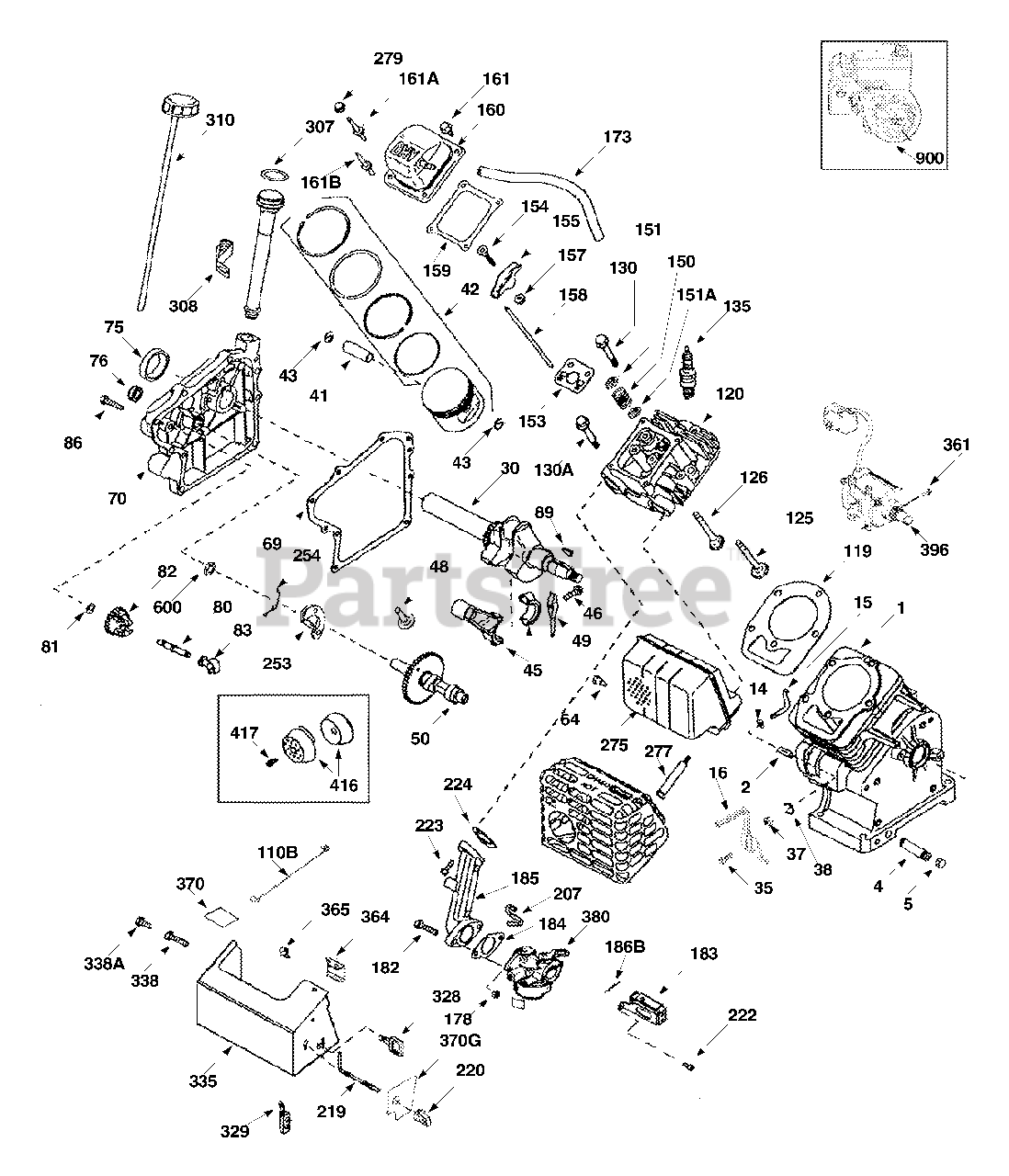

Craftsman Engine Model 143.026503 (Part 1) Parts Diagram

  • Title

1

Tecumseh 37120B

Cylinder

Note: (Incl. 2 & 20)

$116.99

$

Usually ships in 3-12 days

0

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 31857

Oil Drain Extension

$9.49

$

Usually ships in 3-12 days

0

5

Tecumseh 30969

Extension Cap

$5.49

$

In Stock, only 1 left!

0

14

Tecumseh 651052

Washer

$1.99

$

In Stock, Qty 5

0

15

Tecumseh 37108

Governor Rod

$3.99

$

In Stock, only 1 left!

0

16

Tecumseh 37110

Governor Lever

$5.49

$

In Stock, only 1 left!

0

30

Tecumseh 35975

Crankshaft

$

$

Not available

35

Tecumseh 651053

Screw, 10-32 x 63/64"

$1.99

$

Usually ships in 3-12 days

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, Qty 5

0

38

Tecumseh 37109

Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

41

Tecumseh 36070

Piston & Pin Ass'y (Std.)
(Superseded to 40004)

Note: (Incl. 43)

$74.99

$

In Stock, only 1 left!

0

41

Tecumseh 36071

Piston & Pin Ass'y (.010" OS)
(Superseded to 40045)

Note: (Incl.

$

$

Not available

42

Tecumseh 40006

Ring Set (Std.)

$42.99

$

In Stock, only 4 left!

0

42

Tecumseh 40007

Ring Set (.010" OS)
(Superseded to 40045)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 32875A

Connecting Rod Ass'y

Note: (Incl. 46 & 49)

$47.99

$

In Stock, only 1 left!

0

46

Tecumseh 32610A

Connecting Rod Bolt

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 35616

Valve Lifter
(Superseded to 35616A)

$3.99

$

In Stock, only 1 left!

0

49

Tecumseh 36611

Oil Dipper

$1.99

$

In Stock, only 1 left!

0

50

Tecumseh 36903

Camshaft

Note: (Incl. 253 & 254)

$

$

Not available

64

Tecumseh 651027

Screw, 1/4-20 x 27/32"

$3.49

$

Usually ships in 3-12 days

0

69

Tecumseh 36624

Cylinder Cover Gasket

$6.99

$

In Stock, only 4 left!

0

70

Tecumseh 36724

Cylinder Cover

Note: (Incl. 75 thru 83)

$115.99

$

Usually ships in 3-12 days

0

75

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, Qty 20+

0

76

Tecumseh 30318

Camshaft Seal

$7.49

$

In Stock, only 4 left!

0

80

Tecumseh 30574A

Governor Shaft

$7.49

$

In Stock, Qty 6

0

81

Tecumseh 30590A

Washer

$1.99

$

In Stock, Qty 9

0

82

Tecumseh 30591

Governor Gear Ass'y

Note: (Incl. 81)

$13.99

$

In Stock, Qty 13

0

83

Tecumseh 36057

Governor Spool

$1.99

$

In Stock, Qty 5

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

In Stock, only 4 left!

0

89

Tecumseh 610961

Flywheel Key

$1.49

$

In Stock, Qty 20+

0

110B

Tecumseh 36874

Ground Wire

$

$

Not available

119

Tecumseh 36719

Cylinder Head Gasket

$10.99

$

Usually ships in 3-12 days

0

120

Tecumseh 37474

Cylinder Head

$

$

Not available

125

Tecumseh 36471

Exhaust Valve (Std.)

Note: (Incl. 151)

$13.99

$

In Stock, only 1 left!

0

125

Tecumseh 36472

Exhaust Valve (1/32" OS)

Note: (Incl. 151)

$

$

Not available

126

Tecumseh 29314C

Intake Valve (Std.)

Note: (Incl. 151)

$5.99

$

In Stock, only 1 left!

0

130

Tecumseh 650912

Screw, 5/16-18 x 1-1/2"

$1.99

$

Usually ships in 3-12 days

0

130A

Tecumseh 650999

Screw, 5/16-18 x 2-41/64"

$3.99

$

Usually ships in 3-12 days

0

135

Tecumseh 34645

Resistor Spark Plug (RN4C)

$4.49

$

In Stock, Qty 18

0

150

Tecumseh 37039

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 31673

Valve Spring Cap

$1.99

$

In Stock, Qty 6

0

151A

Tecumseh 40016A

Intake Valve Seal

$7.49

$

In Stock, only 1 left!

0

153

Tecumseh 36649

Push Rod Guide

$3.99

$

Usually ships in 3-12 days

0

154

Tecumseh 650913

Rocker Arm Stud

$1.99

$

Usually ships in 3-12 days

0

155

Tecumseh 35624A

Rocker Arm

$26.99

$

Usually ships in 3-12 days

0

157

Tecumseh 650914

Nut, 1/4-28

$1.99

$

Usually ships in 3-12 days

0

158

Tecumseh 36629

Push Rod

$3.99

$

In Stock, only 2 left!

0

159

Tecumseh 35626

Rocker Arm Cover Gasket

$3.99

$

In Stock, Qty 8

0

160

Tecumseh 36630A

Rocker Arm Cover
(Superseded to 36630B)

$

$

Not available

161

Tecumseh 651008

Screw, 1/4-20 x 31/64"

$0.99

$

In Stock, only 3 left!

0

161A

Tecumseh 651034

Stud

$4.49

$

Usually ships in 3-12 days

0

161B

Tecumseh 651012

Stud

$1.99

$

In Stock, only 4 left!

0

173

Tecumseh 37676

Breather Tube

$3.99

$

Usually ships in 3-12 days

0

178

Tecumseh 650852

Nut, 1/4-20

$1.99

$

In Stock, Qty 5

0

182

Tecumseh 650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, Qty 5

0

183

Tecumseh 36867

Choke Bracket

$

$

Not available

184

Tecumseh 26756

Carburetor To Intake Pipe Gasket

$2.99

$

In Stock, Qty 20+

0

185

Tecumseh 36631

Intake Pipe

$43.99

$

In Stock, only 1 left!

0

186B

Tecumseh 36652

Choke Spring

$7.49

$

In Stock, Qty 5

0

207

Tecumseh 36632

Throttle Link

$1.49

$

In Stock, Qty 20+

0

219

Tecumseh 36868

Choke Rod

$

$

Not available

220

Tecumseh 35438

Choke Knob

$3.99

$

In Stock, Qty 10

0

222

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, Qty 6

0

223

Tecumseh 650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, Qty 5

0

224

Tecumseh 36581

Intake Pipe Gasket

$1.49

$

In Stock, Qty 20+

0

253

Tecumseh 36701

Compression Release Weight

$5.49

$

In Stock, only 2 left!

0

254

Tecumseh 36702

Compression Release Spring

$1.99

$

In Stock, Qty 5

0

275

Tecumseh 36722

Muffler
(Superseded to 37595A)

$30.99

$

In Stock, only 1 left!

0

277

Tecumseh 650988

Screw, 1/4-20 x 2-9/32"

$4.49

$

In Stock, Qty 20+

0

279

Tecumseh 650852

Nut & Lock Washer

$1.99

$

In Stock, Qty 5

0

307

Tecumseh 35499

O-Ring

$1.49

$

In Stock, Qty 20+

0

308

Tecumseh 37079

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

310

Tecumseh 36878

Dipstick

$7.49

$

In Stock, only 1 left!

0

328

Tecumseh 35062

Ignition Key

$3.99

$

In Stock, only 2 left!

0

329

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

335

Tecumseh 36873

Carburetor Cover
(Superseded to 36873A)

$

$

Not available

338

Tecumseh 650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, Qty 5

0

338A

Tecumseh 28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, Qty 5

0

361

Tecumseh 650990

Screw, T-30, 1/4-20 x 15/32"

$3.99

$

In Stock, Qty 16

0

364

Tecumseh 36872

Carburetor Cover Bracket

$1.99

$

In Stock, only 2 left!

0

365

Tecumseh 650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, Qty 5

0

370

UNKNOWN

$

$

Not available

370G

Tecumseh 36534

Instruction Decal
(Superseded to 36534A)

$3.49

$

Usually ships in 3-12 days

0

380

Tecumseh 640058A

Carburetor

Note: (Incl. 184)

$109.99

$

In Stock, only 1 left!

0

396

Tecumseh 33290E

Electric Starter Motor

$278.99

$

Usually ships in 3-12 days

0

416

Tecumseh 36085

Spark Arrestor Kit

Note: (Incl. 417) (Optional)

$12.99

$

Usually ships in 3-12 days

0

417

Tecumseh 650821

Screw, 10-32 x 1/2"

Note: (Optional)

$1.99

$

In Stock, Qty 5

0

600

Tecumseh 651013

Washer

$1.99

$

In Stock, only 2 left!

0

900

Tecumseh 754322A

Shortblock
(Superseded to 754322B)

$354.99

$

Usually ships in 3-12 days

0
