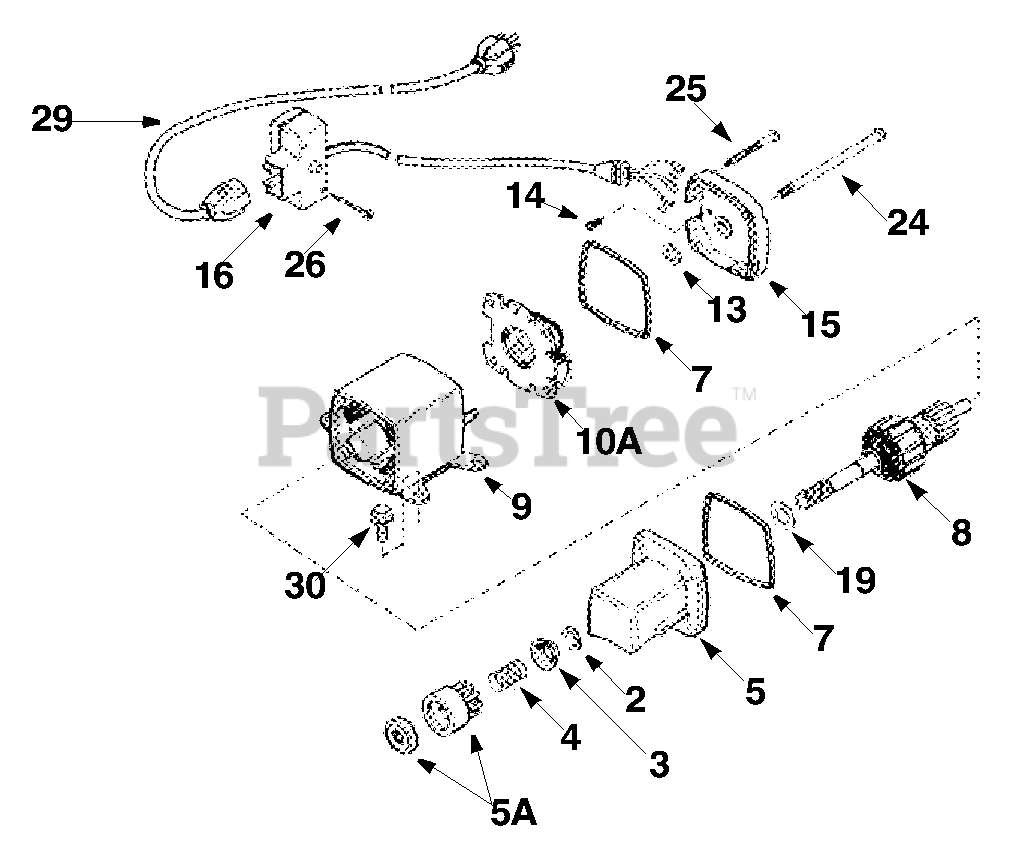

247.888160 (31AE5D8E099) - Craftsman Snow Thrower (2003) (Sears) Electric Starter Parts Diagram

Snow Thrower

Electric Starter Parts Diagram

  • Title

?0

Tecumseh 33290E

Electric Starter (110 Volt)

$278.99

$

Usually ships in 3-12 days

0

2

Tecumseh 31749

Retainer Ring

$1.99

$

Usually ships in 3-12 days

0

3

Tecumseh 33522

Spring Retainer

$5.99

$

Usually ships in 3-12 days

0

4

Tecumseh 33769

Anti-drift Spring

$3.99

$

In Stock, only 2 left!

0

5

UNKNOWN

$

$

Not available

5A

Tecumseh 37332

Nut & Gear

Note: (Incl. 2)

$56.99

$

Usually ships in 3-12 days

0

?6

Tecumseh 35461

Drive End Cap Ass'y.

Note: (Incl. 7)

$59.99

$

Usually ships in 3-12 days

0

7

Tecumseh 35450

"O" Ring

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 35912

Armature

$

$

Not available

9

Housing Ass'y. (Complete Motor)

$

$

Not available

10A

Tecumseh 35452A

Brush & Spring Card Ass'y.

$58.99

$

In Stock, only 1 left!

0

13

Tecumseh 590500

Thrust Washer

$1.99

$

In Stock, only 2 left!

0

14

Tecumseh 33441

Ground Screw

$

$

Not available

15

Tecumseh 35453

Commutator End Cap Ass'y.

Note: (Incl. 7)

$41.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35454

Switch Box Ass'y.

$

$

Not available

19

Tecumseh 35911

Thrust Washer

$5.99

$

In Stock, only 1 left!

0

24

Tecumseh 35462

Case Bolt

$3.99

$

In Stock, only 2 left!

0

25

Tecumseh 35456

Grounding Screw

$1.99

$

In Stock, only 3 left!

0

26

Tecumseh 650819

Screw, 6-32 x 2-1/2"

$1.99

$

In Stock, only 3 left!

0

26

Tecumseh 651032

Screw, 12-16 x 5/8"

$1.99

$

In Stock, only 1 left!

0

29

Tecumseh 32450B

Extension Cord (10'6")

$

$

Not available

30

Tecumseh 650759

Screw, Torx T-30, 1/4-20 x 23/32"

$1.99

$

Usually ships in 3-12 days

0
