247.888300 (31AH55TH799) - Craftsman Snow Thrower (2009) (Sears) .Quick Reference Parts Diagram

Snow Thrower

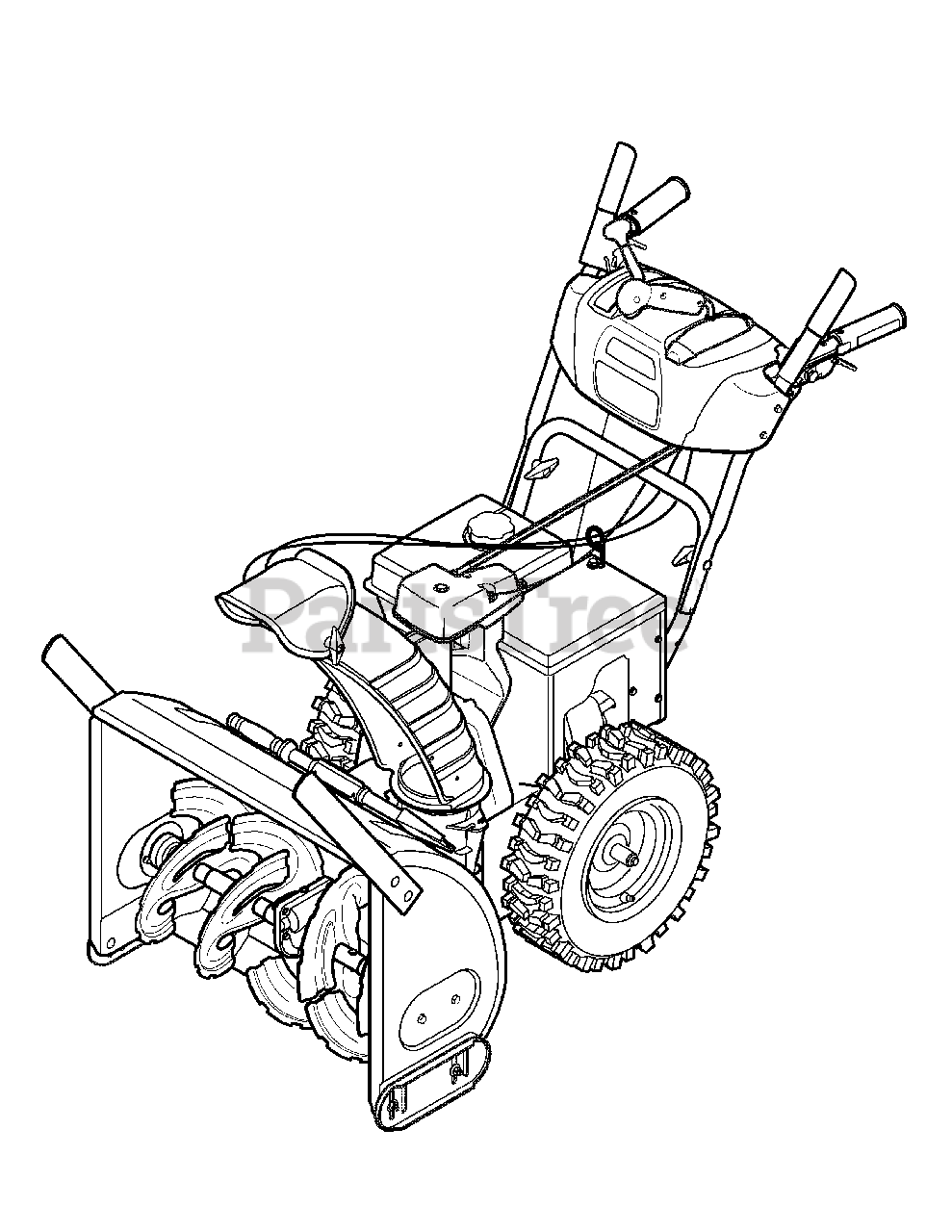

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$3.99

$

In Stock, Qty 20+

0

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 6

0

MTD 929-0071

Extension Cord
(Superseded to 929-0071B)

$22.99

$

In Stock, Qty 6

0

MTD 731-2635

Snow Removal Tool
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 6

0

MTD 746-04229

Drive Cable
(Superseded to 946-04229B)

$22.99

$

In Stock, Qty 20+

0

MTD 746-04230

Auger Cable
(Superseded to 946-04230B)

$24.99

$

In Stock, Qty 14

0

MTD 946-04396A

Speed Cable

$21.99

$

In Stock, Qty 18

0

N/A

Wheel Cable

$

$

Not available

MTD 684-04107-4028

Auger Assembly - LH
(Superseded to 684-04107A-0637)

$94.99

$

In Stock, only 3 left!

0

MTD 684-04108-4028

Auger Assembly - RH
(Superseded to 684-04108A-0637)

$100.99

$

In Stock, only 4 left!

0

MTD 790-00119-0637

Shave Plate

$41.99

$

In Stock, Qty 6

0

MTD 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$78.99

$

In Stock, Qty 12

0

MTD 790-00091-0637

Slide Shoe

$32.99

$

In Stock, only 4 left!

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 925-04213

Lamp

$5.49

$

In Stock, Qty 8

0

MTD 954-04195

Auger Belt
(Superseded to 954-04195A)

$36.99

$

In Stock, Qty 5

0

MTD 954-04201

Wheel Belt
(Superseded to 954-04201A)

$36.99

$

In Stock, only 2 left!

0

N/A

Spiral Cresent

$

$

Not available

N/A

Rubber Paddle

$

$

Not available

MTD 684-04159

Friction Wheel
(Superseded to 684-04159C)

$101.99

$

In Stock, only 4 left!

0

MTD 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$42.99

$

In Stock, Qty 20+

0

MTD 634-04136-0911

Wheel - LH
(Superseded to 634Z07695-0662)

$238.99

$

Usually ships in 0 days

0

MTD 634-04137-0911

Wheel - RH
(Superseded to 634Z07696-0662)

$238.99

$

Usually ships in 0 days

0
