247.888330 (31AH9J6I799) - Craftsman Snow Thrower (2008) (Sears) Drive Assembly Parts Diagram

Snow Thrower

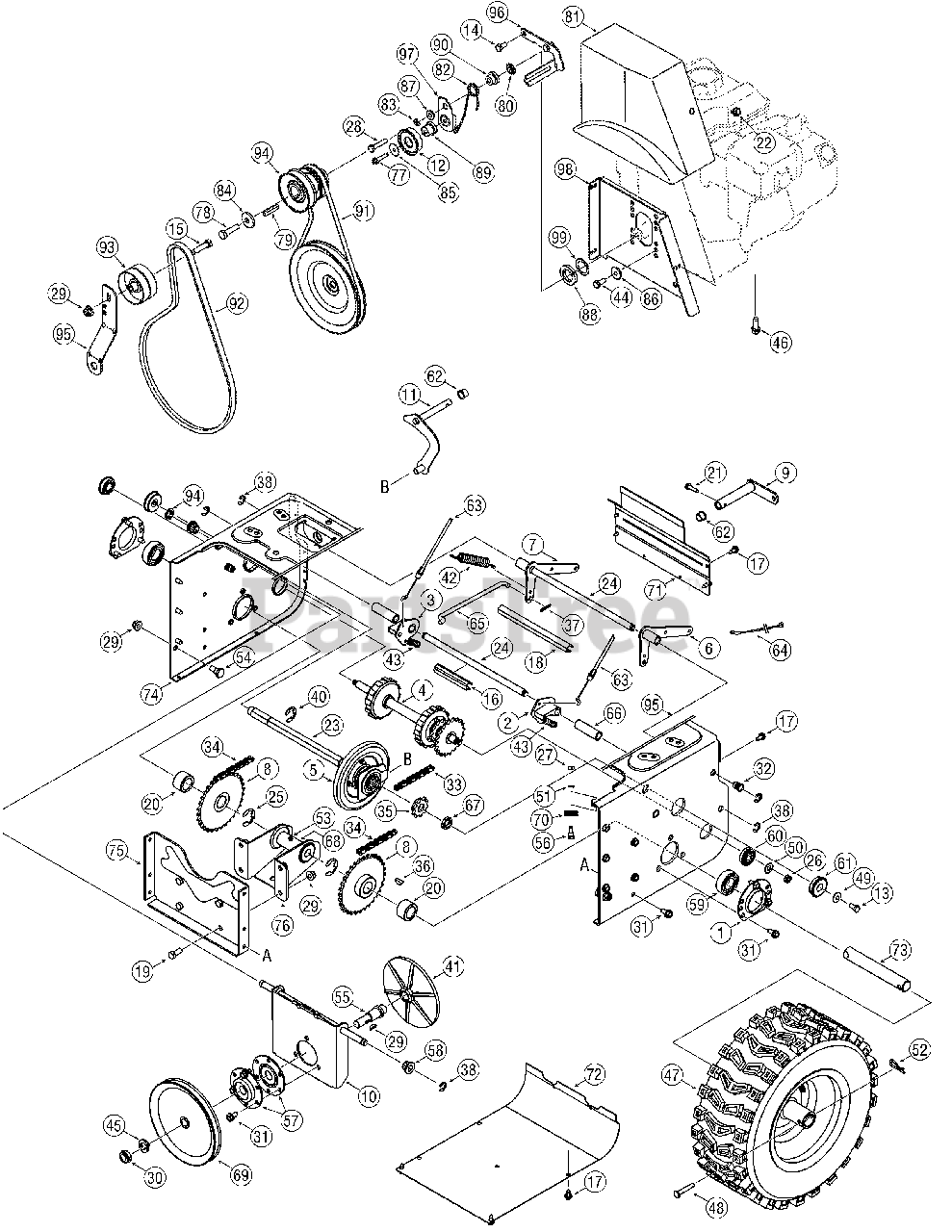

Drive Assembly Parts Diagram

  • Title

1

MTD 05244B

Housing, Bearing

$22.99

$

In Stock, only 2 left!

0

2

MTD 618-0279

Dogg, Steering Drive, LH
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

3

MTD 618-0280

Dogg, Steering Drive, RH
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

4

MTD 618-0282E

Shaft Assembly, Steering
(Superseded to 918-0282E)

$520.99

$

Usually ships in 3-6 days

0

5

MTD 618-04178

Assembly, Friction Wheel
(Superseded to 918-07239)

$154.99

$

In Stock, only 1 left!

0

5

MTD 718-04034

Wheel, Friction, Bonded

Note: Not shown

$

$

Not available

5

MTD 710-0896

Screw, Hex Wash

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

6

MTD 684-0118B-0637

Bracket, Auger Actuator

$

$

Not available

7

MTD 684-0119B-0637

Bracket, Drive Actuator

$

$

Not available

8

MTD 684-04235

Sprocket, 32T

$115.99

$

Usually ships in 3-6 days

0

9

MTD 684-0161-0637

Arm, Shift

$65.99

$

Usually ships in 3-6 days

0

10

MTD 684-04212-0637

Brkt, Friction Drive Suprt.

$52.99

$

Usually ships in 3-6 days

0

11

MTD 684-04103

Rod Assembly, Shift
(Superseded to 984-04103)

$69.99

$

Usually ships in 3-6 days

0

12

MTD 684-04169

Idler Pulley Assembly

$31.99

$

Usually ships in 3-6 days

0

13

MTD 710-0538

Screw, Hex Cap Lock,

$4.49

$

In Stock, Qty 9

0

14

MTD 710-0237

Screw, Hex Cap, 5/16-24

$4.49

$

Usually ships in 3-6 days

0

15

MTD 710-0347

Scr, Hex Cap, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

16

MTD 750-04718

Spcr., .51 ID x 3.66 Lg.

$5.49

$

Usually ships in 3-6 days

0

17

MTD 710-1652

Screw, Hex Wash.

$3.99

$

In Stock, Qty 20+

0

18

MTD 750-04717

Spcr., .51 ID x 7.895 Lg.

$8.49

$

Usually ships in 3-6 days

0

19

MTD 710-3001

Screw, Hex Cap, 3/8-16

$6.99

$

In Stock, Qty 11

0

20

MTD 750-04703

Spcr., 1.0 ID x 1.50 OD

$11.99

$

Usually ships in 3-6 days

0

21

MTD 710-0788

Screw, Hex, 1/4-20 x 1.00

$6.99

$

In Stock, only 4 left!

0

22

MTD 710-0607

Screw, Hx Wash Hd Tapp

$6.49

$

In Stock, Qty 20+

0

23

MTD 711-04279

Shaft, Hex Drive
(Superseded to 911-04279)

$

$

Not available

24

MTD 711-04605

Shaft, Actuator

$

$

Not available

25

MTD 716-04048

Ring, Retainer

$

$

Not available

26

MTD 712-0116

Nut, Hex Insert Jam Lock

$4.49

$

In Stock, Qty 7

0

27

MTD 712-0138

Nut, Hex, 1/4-28 GR5

$6.49

$

Usually ships in 3-6 days

0

28

MTD 710-0624

Screw, Hex Cap, 5/16-24 x 1.50

$5.49

$

Usually ships in 3-6 days

0

29

MTD 712-04065

Nut, Hx Flnge Insert Lk

$3.99

$

In Stock, Qty 20+

0

30

MTD 712-0413

Nut, Hx Insert Jam Lk

$5.99

$

In Stock, only 1 left!

0

31

MTD 710-04484

TT Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

32

MTD 712-0717

Nut, Insert 3/8-16

$8.99

$

Usually ships in 3-6 days

0

33

MTD 713-0284

Chain, Endless, #41 x 36L

$22.99

$

Usually ships in 3-6 days

0

34

MTD 713-0286

Chain, #420 x 40L

$61.99

$

Usually ships in 3-6 days

0

35

MTD 713-04015

Sprocket, #41 x 10T
(Superseded to 913-04015)

$11.99

$

Usually ships in 3-6 days

0

36

MTD 714-0135

Key, Woodruff

$4.49

$

In Stock, Qty 9

0

37

MTD 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

38

MTD 716-0104

E-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

39

MTD 714-0388

Key, Hi-Pro, 3/16 x 5/8
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

40

MTD 716-0136

Ring, Retaining

$8.49

$

In Stock, Qty 9

0

41

MTD 717-0302

Plate, Drive
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

42

MTD 732-0121

Spring, Extension
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

43

MTD 732-0209

Spring, Extension
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 12

0

44

MTD 710-0627

Screw, Hex Cap, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

45

MTD 736-0158

Washer, Lock, 5/8

$4.49

$

In Stock, only 2 left!

0

46

MTD 710-0654A

Screw, 3/8-16 x 1.00

$3.99

$

In Stock, only 4 left!

0

47

MTD 634-0225A-0911

Wheel Ass’y. - LH

$252.99

$

Usually ships in 3-6 days

0

47

MTD 634-0226A-0911

Wheel Ass’y. - RH

$286.99

$

Usually ships in 3-6 days

0

47

MTD 734-2031

Tire

Note: Not shown

$154.99

$

Usually ships in 3-6 days

0

47

MTD 734-0255

Valve
(Superseded to 934-0255)

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

47

MTD 741-0246A

Bearing

Note: Not shown

$13.99

$

In Stock, only 4 left!

0

48

MTD 711-04615

Pin, Clevis

$5.49

$

Usually ships in 3-6 days

0

49

MTD 736-0242

Wsh, Bell., .34 x .872 x .06

$3.99

$

In Stock, Qty 20+

0

50

MTD 736-0300

Wash, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

51

MTD 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

52

MTD 714-0149B

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

53

MTD 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

54

MTD 738-0143

Screw, Shldr., .498 x .34

$3.99

$

In Stock, Qty 20+

0

55

MTD 738-0279

Spindle, Drive Plate

$57.99

$

Usually ships in 3-6 days

0

56

MTD 738-0924A

Screw, Hex Shldr., 1/4-28

$6.49

$

In Stock, Qty 6

0

57

MTD 741-0163A

Ass’y, Bearing/Housing

$45.99

$

Usually ships in 3-6 days

0

58

MTD 741-04108

Bearing, Hex Flange

$5.99

$

In Stock, only 2 left!

0

59

MTD 741-04025

Bearing, Self Aligning
(Superseded to 941-04025)

$33.99

$

Usually ships in 3-6 days

0

60

MTD 741-04076

Bearing, Ball

$13.99

$

In Stock, Qty 16

0

61

MTD 741-0563

Bearing, Ball
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

62

MTD 741-0748

Bush, Flg, .5 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

63

MTD 746-0949A

Cable, Steering

$48.99

$

In Stock, only 1 left!

0

64

MTD 746-0951

Cable, Auger Idler
(Superseded to 946-0951A)

$41.99

$

In Stock, only 4 left!

0

65

MTD 747-0973

Rod, Drive Clutch

$45.99

$

Usually ships in 3-6 days

0

66

MTD 750-0903B

Spcr., .514 x .632 x 2.44

$9.99

$

Usually ships in 3-6 days

0

67

MTD 750-0997

Spacer, .675 x 1.0 x .23
(Superseded to 950-0997)

$6.49

$

In Stock, only 4 left!

0

68

MTD 750-1302B

Spcr, .6725 x 1.125 x 2.48

$44.99

$

In Stock, only 1 left!

0

69

MTD 756-0344

Pulley, Drive

$75.99

$

Usually ships in 3-6 days

0

70

MTD 756-0625

Roller, Cable

$8.99

$

In Stock, Qty 20+

0

71

MTD 790-00257-0721

Cover, Upper Frame
(Superseded to 790-00257-4044)

$12.99

$

Usually ships in 3-6 days

0

72

MTD 790-00259-0721

Cover, Lower Frame
(Superseded to 790-00259)

$27.99

$

Usually ships in 3-6 days

0

73

MTD 711-04607

Axle, Wheel, 33"
(Superseded to 711-04607A)

$106.99

$

In Stock, only 1 left!

0

74

MTD 790-00255A-0721

Frame, Transmission
(Superseded to 790-00255A-4044)

$

$

Not available

75

MTD 784-0406A-0637

Bracket, Frame Support

$34.99

$

Usually ships in 3-6 days

0

76

MTD 784-0407-0637

Bracket, Axle Support

$37.99

$

Usually ships in 3-6 days

0

77

MTD 710-0809

Screw, 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

78

MTD 710-1044

Hex Hd. Screw, 3/8-24 x 1.50 GR8

$3.99

$

In Stock, Qty 20+

0

79

MTD 714-0118

Key, Square, 1/4 x 1.5

$6.49

$

Usually ships in 3-6 days

0

80

MTD 726-04012

Nut, Push

$6.99

$

In Stock, Qty 12

0

81

MTD 731-2531

Cover, Belt
(Superseded to 931-2531)

$47.99

$

Usually ships in 3-6 days

0

82

MTD 732-04308A

Torsion Spring, .850 dia. x .333 lg.
(Superseded to 732-04308C)

$4.99

$

In Stock, Qty 12

0

83

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

84

MTD 736-0247

Washer, Flat, .406 x 1.25

$8.99

$

In Stock, Qty 20+

0

85

MTD 736-3092

Washer, Flat, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 13

0

86

MTD 748-0234

Spacer, Shoulder

$4.49

$

In Stock, Qty 10

0

87

MTD 748-04112A

Shoulder Spacer, .3175 x .500 x .094
(Superseded to 748-04112B)

$3.99

$

In Stock, only 1 left!

0

88

MTD 750-04020

Spacer, 1.004 x 1.375 x .25
(Superseded to 950-04020)

$11.99

$

In Stock, only 1 left!

0

89

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.49

$

In Stock, Qty 6

0

90

MTD 750-04821

Shoulder Spacer, .340 x 1.00

$5.99

$

Usually ships in 3-6 days

0

91

MTD 754-0367

V-Belt, 3/8 x 34.4
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

92

MTD 754-04131

V Belt,1/2 x 42
(Superseded to 954-04131)

$31.99

$

In Stock, Qty 6

0

93

MTD 756-0178

Pulley, Flat Idler, 2.75 OD

$18.99

$

In Stock, only 4 left!

0

94

MTD 756-0241B

Double Pulley, 3.25 x 2.75

$92.99

$

In Stock, only 1 left!

0

95

MTD 784-0385B

Bracket, Auger Idler
(Superseded to 784-0385D)

$27.99

$

In Stock, only 1 left!

0

96

MTD 790-00167A-0637

Belt Keeper Bracket

$36.99

$

Usually ships in 3-6 days

0

97

MTD 790-00208C

Idler Drive Wheel Bracket
(Superseded to 790-00208D)

$8.49

$

In Stock, only 2 left!

0

98

MTD 790-00254A-0637

Belt Cover Bracket

$27.99

$

Usually ships in 3-6 days

0

99

MTD GW-1166-1

Washer, Flat, 1.015 x 1.375 x .062
(Superseded to 736-04309)

$3.99

$

In Stock, Qty 18

0

100

MTD 726-0221

Speed Nut, .500

$5.99

$

In Stock, only 2 left!

0
