247.888480 (31AH97SJ799) - Craftsman Snow Thrower (2010) (Sears) .Quick Reference Parts Diagram

Snow Thrower

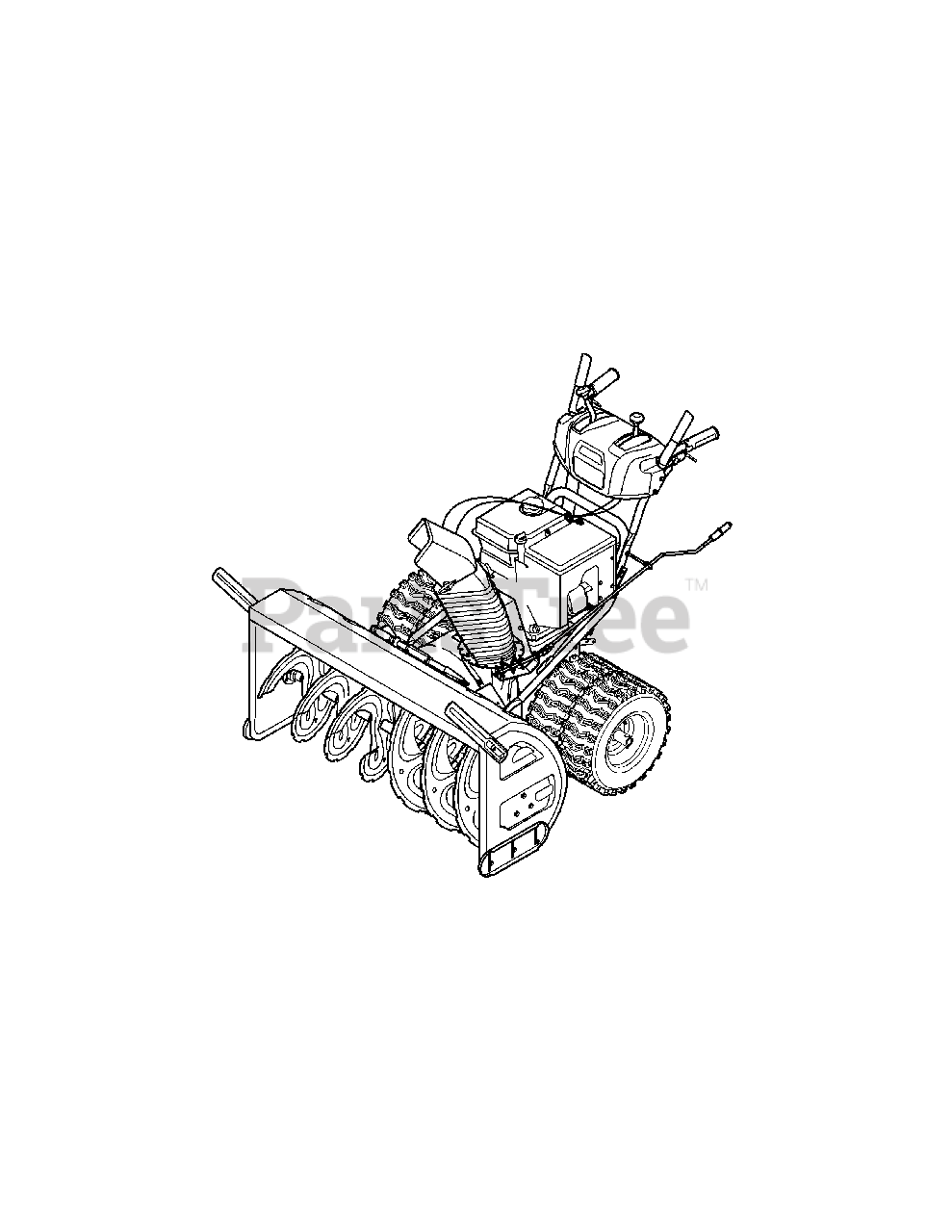

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$3.99

$

In Stock, Qty 20+

0

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 6

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

$22.99

$

In Stock, Qty 6

0

MTD 931-2643

Snow Removal Tool

$20.99

$

In Stock, only 2 left!

0

MTD 646-0012

Drive Cable

$39.99

$

In Stock, only 2 left!

0

MTD 746-0952

Clutch Cable
(Superseded to 746P0952)

$48.99

$

Usually ships in 3-6 days

0

MTD 746-04341

Speed Cable

$27.99

$

Usually ships in 3-6 days

0

MTD 946-0951A

Auger Cable

$47.99

$

In Stock, only 2 left!

0

MTD 746-0949A

Steering Cable

$55.99

$

In Stock, only 2 left!

0

MTD 684-04151-4028

Auger Assembly - LH
(Superseded to 684-04151)

$264.99

$

Usually ships in 3-6 days

0

MTD 684-04152-4028

Auger Assembly - RH
(Superseded to 684-04152-0637)

$277.99

$

Usually ships in 3-6 days

0

MTD 790-00280-0637

Shave Plate

$64.99

$

In Stock, only 2 left!

0

MTD 684-0090B-0637

Impeller Assembly

$

$

Not available

MTD 784-5697-0637

Slide Shoe

$46.99

$

In Stock, only 2 left!

0

MTD 738-04155

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 725-1629

Lamp
(Superseded to 925-1629)

$11.99

$

In Stock, only 3 left!

0

MTD 954-04194A

Auger Belt

$23.99

$

In Stock, only 2 left!

0

MTD 954-04202

Wheel Belt

$19.99

$

In Stock, only 4 left!

0

N/A

Spiral Cresent

$

$

Not available

N/A

Rubber Paddle

$

$

Not available

MTD 918-04178

Friction Wheel
(Superseded to 918-07239)

$175.99

$

In Stock, only 4 left!

0

MTD 718-04034

Friction Wheel Rubber

$

$

Not available

MTD 634-0225A-0911

Wheel - LH

$252.99

$

Usually ships in 3-6 days

0

MTD 634-0226A-0911

Wheel - RH

$326.99

$

Usually ships in 3-6 days

0
