247.888701 (31AH54TI799) - Craftsman Snow Thrower (2016) Auger Housing Parts Diagram

Snow Thrower

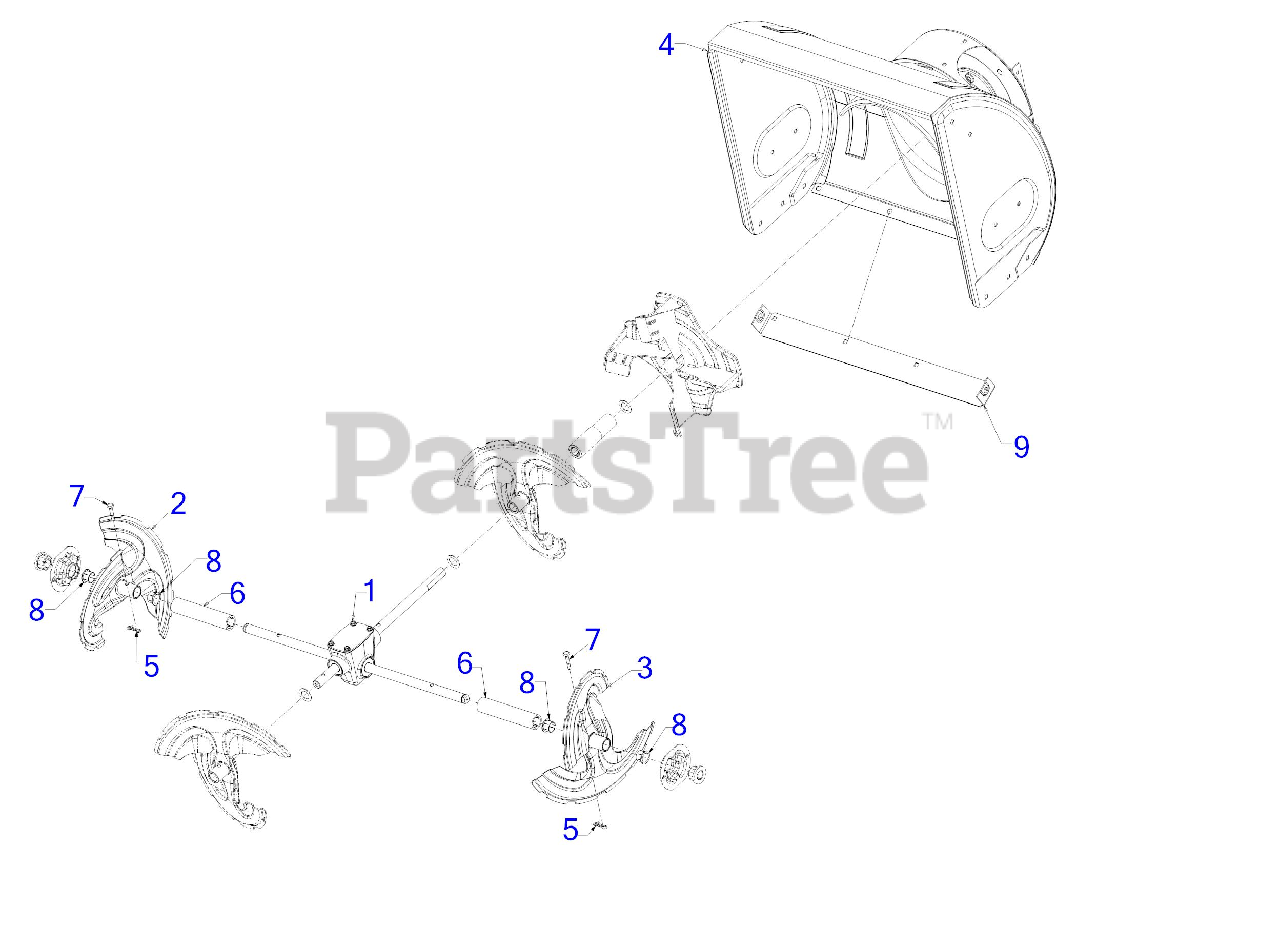

Auger Housing Parts Diagram

  • Title

1

MTD 918-07027

24" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$333.99

$

Usually ships in 3-6 days

0

2

MTD 684-05064-0691

SPIRAL ASSEMBLY (RH)

$73.99

$

Usually ships in 3-6 days

0

3

MTD 684-05065-0691

SPIRAL ASSEMBLY (LH)

$73.99

$

Usually ships in 3-6 days

0

4

MTD 684-05215-0691

24" AUGER HOUSING ASSEMBLY

$258.99

$

Usually ships in 3-6 days

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 731-10282

SPACER

$7.99

$

Usually ships in 3-6 days

0

7

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

MTD 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

9

MTD 790-00120-0691

24" SHAVE PLATE
(Superseded to 790-00120-0637)

$33.99

$

In Stock, Qty 20+

0
