247.888741 (31AH5DTQ799) - Craftsman Snow Thrower (2016) Auger Housing Parts Diagram

Snow Thrower

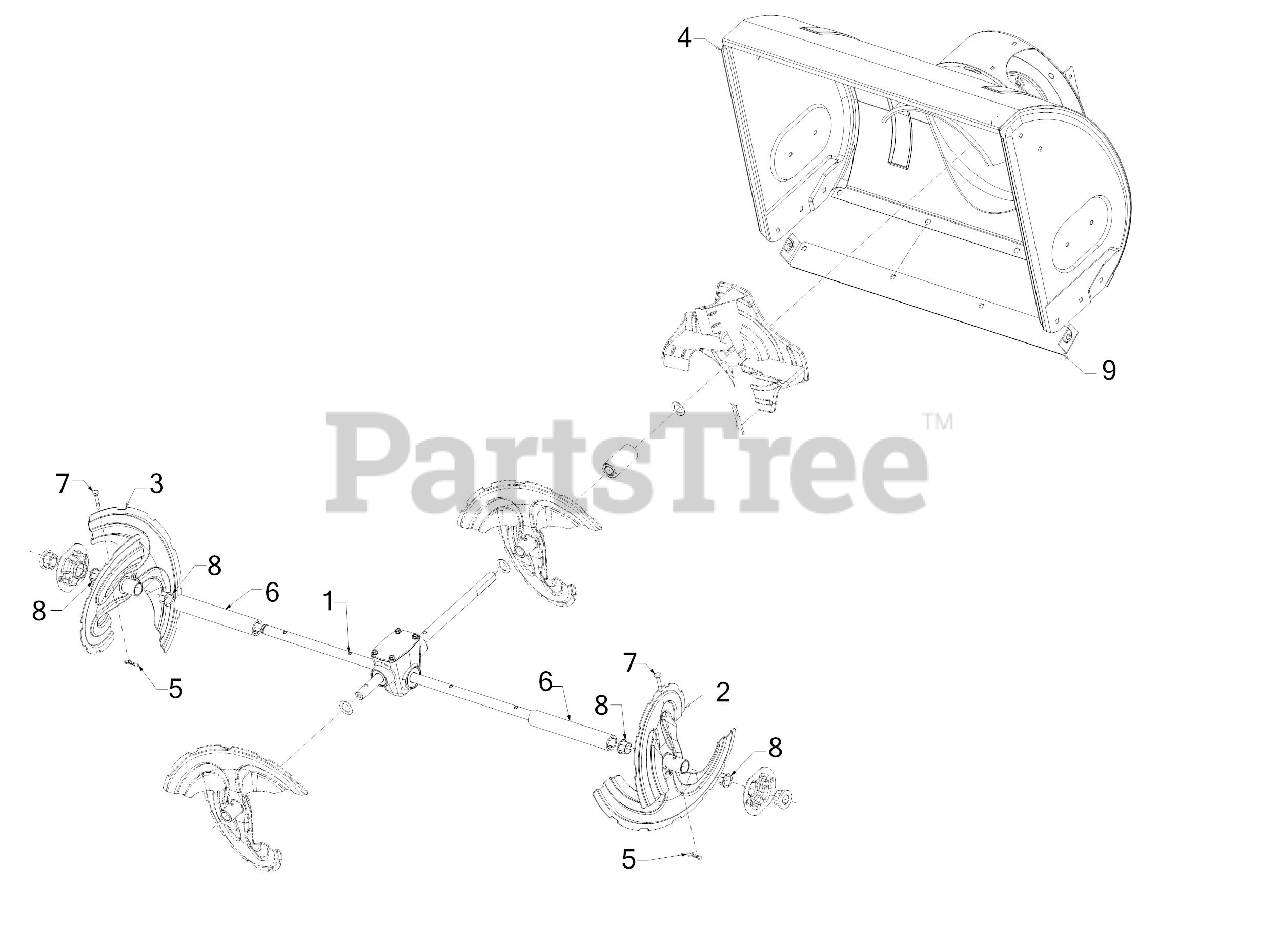

Auger Housing Parts Diagram

  • Title

1

MTD 918-06060

28" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$371.99

$

Usually ships in 3-6 days

0

2

MTD 684-04107A-0691

AUGER ASSEMBLY (LH)
(Superseded to 684-04107A-0637)

$83.99

$

In Stock, Qty 12

0

3

MTD 684-04108A-0691

AUGER ASSEMBLY (RH)
(Superseded to 684-04108A-0637)

$88.99

$

In Stock, Qty 14

0

4

MTD 684-05216-0691

28" AUGER HOUSING ASSEMBLY

$314.99

$

Usually ships in 3-6 days

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 731-09558

SPACER

$9.99

$

Usually ships in 3-6 days

0

7

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

MTD 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

9

MTD 790-00118-0691

28" SHAVE PLATE
(Superseded to 790-00118-0637)

$35.99

$

In Stock, Qty 9

0
