247.888900 (31AE7H8G799) - Craftsman Snow Thrower (2005) (Sears) Gear Assembly Parts Diagram

Snow Thrower

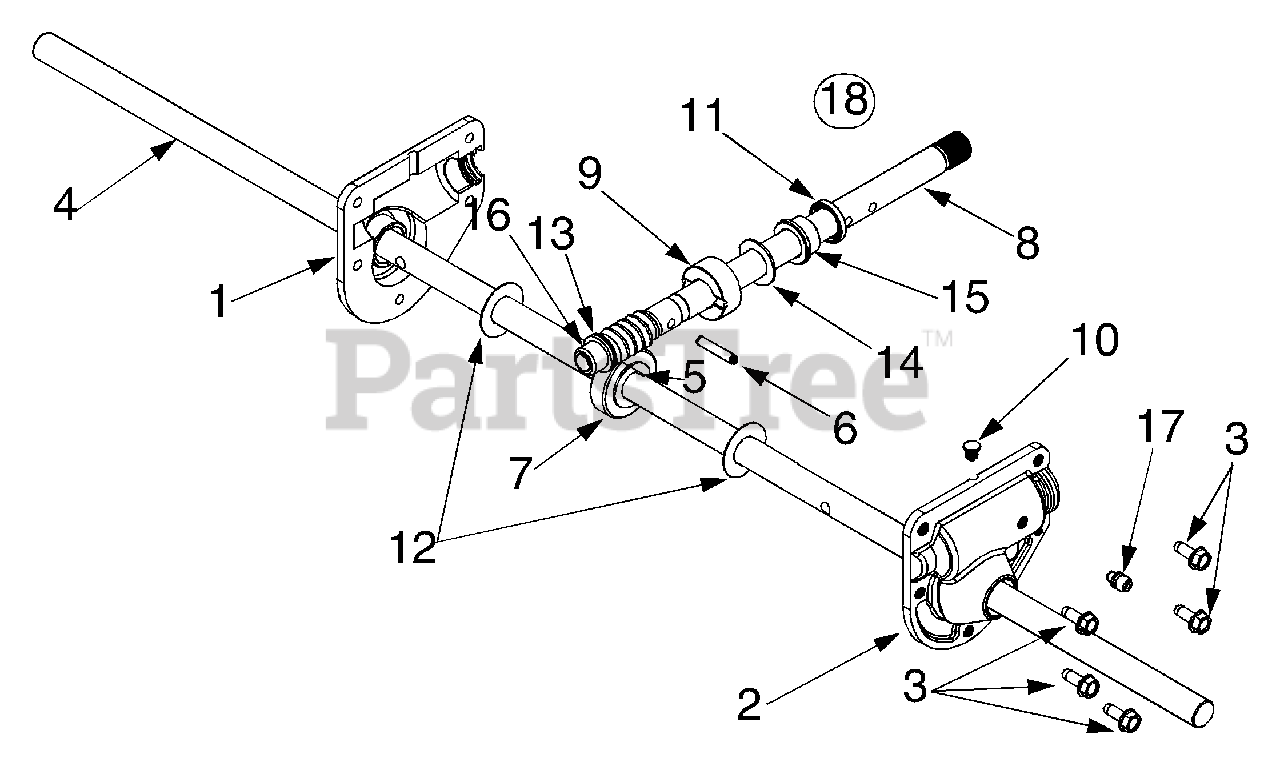

Gear Assembly Parts Diagram

  • Title

1

MTD 618-0123

RH Housing
(Superseded to 918-0123A)

$48.99

$

In Stock, Qty 13

0

2

MTD 618-0418

LH Housing
(Superseded to 918-0418A)

$57.99

$

Usually ships in 3-6 days

0

3

MTD 710-0642

Self Tapping Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0910A

Spiral Axle

$124.99

$

Usually ships in 3-6 days

0

5

MTD 714-0161

Hi-Pro Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 12

0

6

MTD 715-0143

Spring Spiral Pin

$4.49

$

In Stock, Qty 14

0

7

MTD 717-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

8

MTD 717-0526

Worm Shaft
(Superseded to 717P0526)

$101.99

$

In Stock, only 1 left!

0

9

MTD 718-0186

Thrust Collar

$7.99

$

In Stock, only 2 left!

0

10

MTD 721-0325

Grease Plug

$4.49

$

Usually ships in 3-6 days

0

11

MTD 721-0327

Grease Seal

$6.49

$

In Stock, Qty 20+

0

12

MTD 736-0351

Flat Washer

$3.99

$

In Stock, Qty 20+

0

13

MTD 736-0369

Flat Washer

$4.49

$

In Stock, Qty 6

0

14

MTD 736-0445

Flat Washer

$3.99

$

In Stock, only 3 left!

0

15

MTD 741-0662

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

16

MTD 741-0663

Flange Bearing

$8.99

$

In Stock, Qty 20+

0

17

MTD 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

18

MTD 618-0416A

Gear Assembly Complete
(Superseded to 918-0416B)

$441.99

$

Usually ships in 3-6 days

0
